HSPA+ Industrial Router
UR5i v2 Libratum
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UR5i v2 Libratum and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech UR5i v2 Libratum

Summary of Contents for Advantech UR5i v2 Libratum

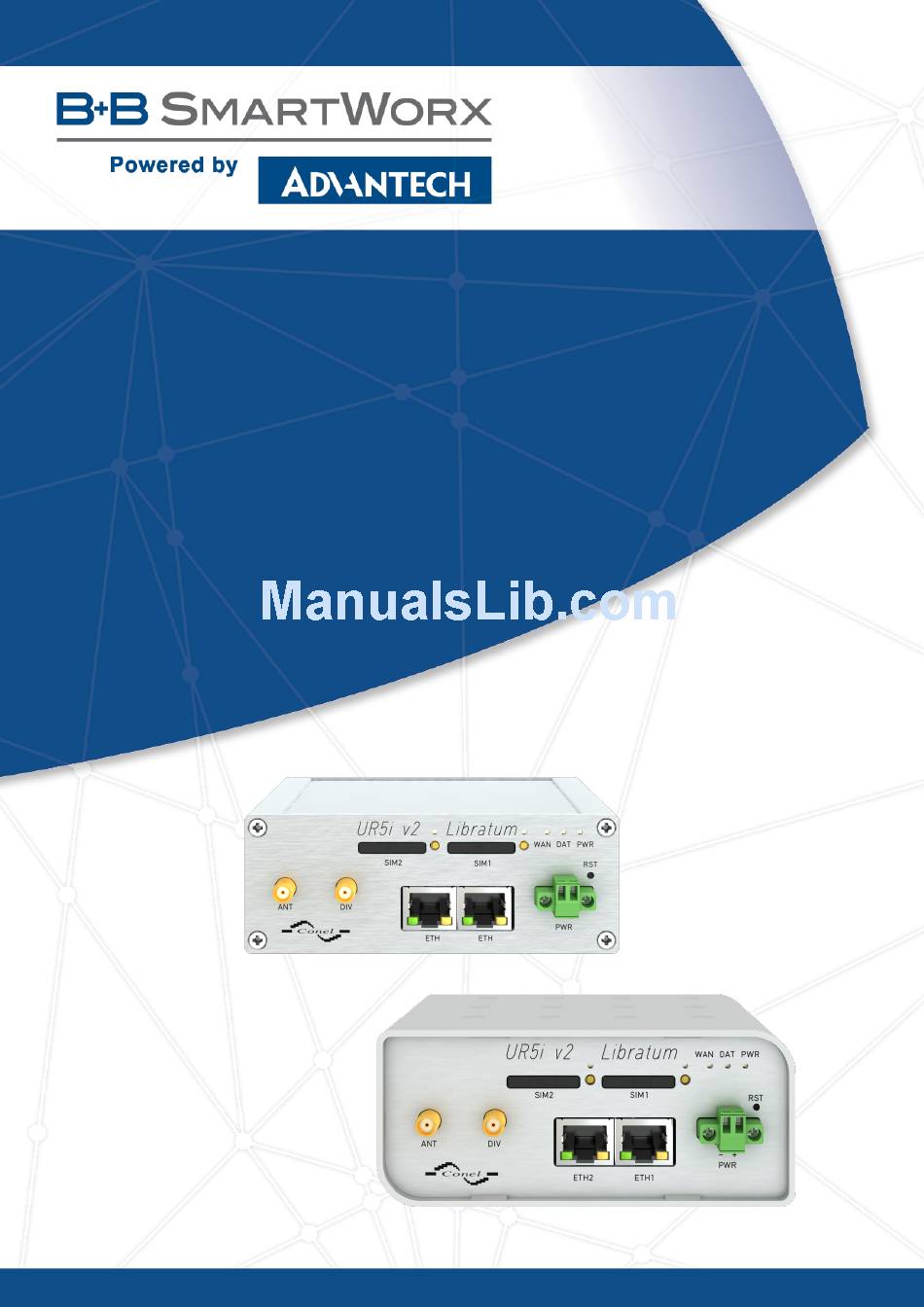

  • Page 1 HSPA+ Industrial Router UR5i v2 Libratum USER’S MANUAL...
  • Page 2 GPL licence Source codes under GPL licence are available free of charge by sending an email to: cellularsales@advantech-bb.com. Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual Rev. 1 released in CZ, July 25, 2016...

  • Page 3: Table Of Contents

    CONTENTS Contents 1 Safety Instruction 2 WEEE directive 3 Router Description 4 Contents of Package 5 Router Design 5.1 Router versions ........5.2 Delivery identification .
  • Page 4 CONTENTS 8 Recommended Literature 9 Troubleshooting 9.1 FAQ ......... . 10 Customers Support...
  • Page 5 ......Front panel UR5i v2 Libratum ......
  • Page 6 LIST OF TABLES List of Tables Router versions ........Delivery identification .

  • Page 7: Safety Instruction

    1. SAFETY INSTRUCTION 1. Safety Instruction Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. To prevent possible injury and damage to appliances and to ensure compliance with all relevant provisions, use only the original accessories.

  • Page 8: Weee Directive

    2. WEEE DIRECTIVE 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 9: Router Description

    LAN networks, automatic teller machines (ATM) and other self-service terminals, etc. As a standard, cellular router UR5i v2 Libratum is equipped with two Ethernet 10/100 and two SIM cards. This wireless router is supplied either in a plastic or metal casing, based on the requirements of the customer.

  • Page 10: Contents Of Package

    4. CONTENTS OF PACKAGE 4. Contents of Package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to three external antennas, clip for the DIN rail, paper start guide. Figure 1: Contents of package Temperature range for power supply is reduced to 0 C to +40 C!

  • Page 11: Router Design

    5. ROUTER DESIGN 5. Router Design 5.1 Router versions UR5i v2 Libratum router is supplied in the following versions (see table below). All versions are available in plastic or metal box according to customer requirements. Router versions Router Box UR5i v2 Libratum...

  • Page 12: Example Of The Router Label

    Version with WiFi in the plastic box UR5i v2 Libratum SL UR-5i-v2L Version in the metal box UR5i v2 Libratum SL with WiFi UR-5i-v2L Version with WiFi in the metal box Table 2: Delivery identification Figure 6: Example of the router label 5.3 Order codes...

  • Page 13: Basic Dimensions Of Plastic Box (Bottom And Front View)

    5. ROUTER DESIGN 5.4 Basic dimensions of the router box 5.4.1 Plastic box Figure 7: Basic dimensions of plastic box (bottom and front view) 5.4.2 Metal box Figure 8: Basic dimensions of metal box (bottom and front view)

  • Page 14: Space Around Antennas (Plastic)

    5. ROUTER DESIGN 5.5 Mounting recommendations possibility to be put on a work surface, DIN rail EN 60715 with included clip CPD2 (or CKD2 for metal version). For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: no public and industry environment of low voltage with high interference, public environment of low voltage without high interference.

  • Page 15: Cable Routing (Plastic)

    5. ROUTER DESIGN For every cables we recommend to bind the bunch, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be maxi- mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch –...

  • Page 16: Default Position Of Din Holder

    5. ROUTER DESIGN 5.6 Removing from the DIN rail DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position of CPD2 holder (or CKD2 for metal version), which is used for mounting the router on a DIN rail, is shown in the following figure: Figure 15: Default position of DIN holder For removing from the DIN rail it is necessary to lightly push upward the router so that the...

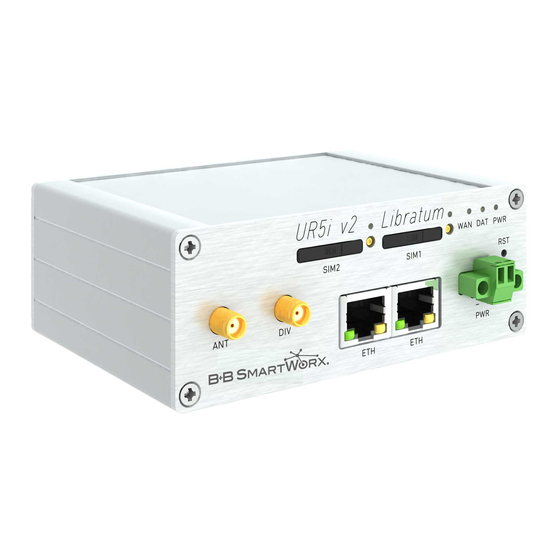

  • Page 17: Front Panel Ur5I V2 Libratum

    Connector for WIFI antenna. Available only when the router is equipped with WIFI module. SIM1 — Holder for the first SIM card. SIM2 — Holder for the second SIM card. Table 3: Front panel description Figure 17: Front panel UR5i v2 Libratum...

  • Page 18: Status Indication

    5. ROUTER DESIGN 5.7.1 Status indication About router status inform three LED indicators on the front panel. ETH0 and ETH1 ports have two additional LEDs that provide information about port status. Caption Color State Description Green Blinking Router is ready Starting of the router Fast blinking Updating firmware...

  • Page 19: Power Connector

    5. ROUTER DESIGN 5.7.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC) GND(-) Negative pole of DC supply voltage Table 5: Connection of power connector Figure 18: Power connector Power supply for router is required between +9 V to +36 V DC supply.

  • Page 20: Connecting Of The Antenna

    5.7.3 Antenna connector ANT, DIV (and WIFI) Main and diversity antennas are connected to the router using the SMA connector on the front panel. For UR5i v2 Libratum with WiFi module is also available reverse SMA antenna connector, through which the WIFI antenna can be connected.

  • Page 21: Ejected Sim Holder

    5. ROUTER DESIGN 5.7.4 SIM card reader The SIM card reader for 3 V and 1.8 V SIM cards is placed on the front panel of the router. For getting the router to work is necessary to insert an activated SIM card with an unblocked PIN code.

  • Page 22: Ethernet Connector

    5. ROUTER DESIGN 5.7.5 Ethernet port (ETH0 and ETH1) Panel socket RJ45. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output — —...

  • Page 23: Router Reset

    5. ROUTER DESIGN 5.7.6 Reset When PWR LED starts flashing on the front panel, it is possible to restore the default con- figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on). For pressing the RST button could be used a narrow screwdriver.

  • Page 24: First Use

    6. FIRST USE 6. First Use 6.1 Connecting the router before first use Before putting the router into operation it is necessary to connect all components which are required to run your applications. Don’t forget to insert SIM card. The router can not operate without connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged.

  • Page 25: Entering The Ip Address Of The Router

    6. FIRST USE 6.2 Start The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router behavior can be changed via the web interface.

  • Page 26: Router Web Interface

    6. FIRST USE After successfully entering login information user gains access to the router via his internet browser. Figure 28: Router web interface A detailed description of the router settings via the Web interface can be found in the document Configuration manual for v2 routers.

  • Page 27: Technical Parameters

    Metal box 42 x 87 x 113 mm (DIN 35 mm) Weight UR5i v2 Libratum – 150 g UR5i v2 Libratum SL – 280 g Antenna connector 2x SMA – 50 Ohm 1x R-SMA – 50 Ohm (only for WiFi)

  • Page 28: Technical Parameters Of Module

    7. TECHNICAL PARAMETERS 7.3 Technical parameters of module HSPA+ module HSPA+ parameters Bit rate 14,4 Mbps (DL) / 5,76 Mbps (UL) 3GPP rel. 6/7 standard Data compress 3GPP UMTS parameters Bit rate 384 kbps (DL) / 384 kbps (UL) 3GPP rel. 4 standard GPRS/EDGE parameters EDGE bit rate 237 kbps (DL) / 237 kbps (UL) GPRS bit rate 85,6 kbps (DL) / 85,6 kbps (UL)

  • Page 29: Technical Parameters Of Processor

    7. TECHNICAL PARAMETERS 7.5 Technical parameters of processor 32b ARM microprocessor Memory 512 Mb DDR SDRAM 128 Mb FLASH 1 Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100 Mbit/s USB 2.0 interface Table 12: Technical parameters of processor...

  • Page 30: Recommended Literature

    8. RECOMMENDED LITERATURE 8. Recommended Literature Advantech B+B SmartWorx: Start guide for v2 routers, Advantech B+B SmartWorx: Configuration manual for v2 routers, Advantech B+B SmartWorx: Application note – Programmer guide.

  • Page 31: Troubleshooting

    9. TROUBLESHOOTING 9. Troubleshooting If you can not connect to the router from your PC, your network card may be configured the way it is not possible to connect to the router. Take one or more of the following steps to solve the problem: Select the communication rate 10 MB/s in the properties of your network card.
  • Page 32 9. TROUBLESHOOTING Ethernet connection fails or isn’t establishing. It is possible to turn auto negotiation off and set a rate and duplex manually on the Ethernet interface of the router. DynDNS doesn’t function. With private APN this is not functional. If the same IP address is recorded in your canonic name as dynamically assigned address, it means that the operator is using NAT or firewall.

  • Page 33: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Advantech B+B SmartWorx s.r.o. hereby declares that the router narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE). Router fits values of coefficient SAR defined by association ICNIRP and values of "About protection of health before non-ionized radiation".

This manual is also suitable for:

Lr77 v2 libratum
