- Page 1 Hardware Manual Industrial Cellular Router ICR-2031 Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0057-EN, revision from 18th April, 2024.
- Page 2 © 2024 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
- Page 3 Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest.
-
Page 4: Table Of Contents
Contents 1. Product Overview 1.1 Product Introduction ......... 1.2 Usage Examples . - Page 5 List of Figures Cellular Internet Access ........Backup for Internet Access .
- Page 6 List of Tables Router Hardware Overview: Front View ......Router Hardware Overview: Rear View .
-
Page 7: Product Overview

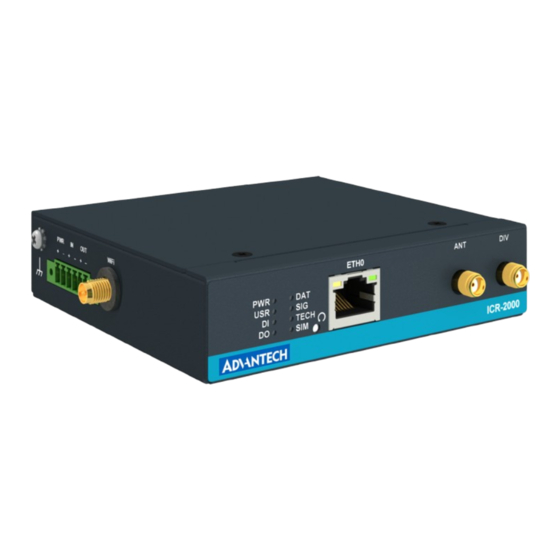

1. Product Overview 1.1 Product Introduction Industrial cellular router ICR-2031 is designed for wireless communication in mobile networks that use traditional cellular technologies. The primary purpose of this router is its use in the Category 4 (Cat.4) services on the cellular LTE net- work. -
Page 8: Usage Examples
• This example demonstrates a common scenario where the cellular router facilitates access from a local LAN to the Internet via the cellular network. • This functionality is not available on LAN routers lacking a cellular interface. Figure 1: Cellular Internet Access ICR-2031 Hardware Manual... -
Page 9: Backup For Internet Access
1.2 Usage Examples Backup for Internet Access • This example showcases how a cellular router’s Internet access can be backed up. • Backup options include PPPoE connections, Ethernet wired connections or WiFi. Figure 2: Backup for Internet Access ICR-2031 Hardware Manual... -
Page 10: Vpn Networks Interconnection
• This example highlights the establishment of a secure VPN tunnel for interconnecting the configured Advantech router with a router in a remote network, facilitated via the Internet. • The configured router connects to the Internet using the cellular network. -
Page 11: Hardware Overview
Connector for the main antenna of the cellular module; see female Chapter 2.2. Connector for the second antenna of the cellular module female (required for the MIMO DL); see Chapter 2.2. Table 1: Router Hardware Overview: Front View ICR-2031 Hardware Manual... -
Page 12: Router Hardware Overview: Rear View
One SIM card slot; see Chapter 2.1. DIN clip DIN rail clip, not included as standard accessories; see Chapter 1.10. Wall clip Wall mounting clip, included as standard accessories; see Chapter 1.9. Table 2: Router Hardware Overview: Rear View ICR-2031 Hardware Manual... -
Page 13: Order Codes
Product Revision. Please note that the default revision (Rev.1.0) is unavailable here. Rev.# Description Initial version (revision number not printed on the labels). New design of the mainboard; see PCN-2023-05 for details. Table 4: HW Revisions History ICR-2031 Hardware Manual... -
Page 14: Package Contents
Wall mounting clip with screws 1 set 6-pin terminal block for power sup- ply, digital input and digital output (de- 1 pcs ployed on the router) Printed Quick Start Guide Leaflet 1 pcs Table 5: Contents of Package ICR-2031 Hardware Manual... -
Page 15: Product Dimensions
For the dimensions of the product see the figures below. Note that all sizes are measured in millimeters. Variant with Wall Mounting Clip Figure 6: Router Dimensions – Top, Side and Front View with Wall Mount Clip ICR-2031 Hardware Manual... -
Page 16: Router Dimensions - Top, Side And Front View With Din Rail Clip
1. Product Overview 1.7 Product Dimensions Variant with DIN Rail Clip Figure 7: Router Dimensions – Top, Side and Front View with DIN Rail Clip ICR-2031 Hardware Manual... -
Page 17: Mounting Recommendations
• Sufficient space must be left between each connector for the handling of cables, • To ensure the correct functioning of the router we recommend the use of an earth-bonding distribution frame for the grounding of the grounding screew, see Chapter 2.4. ICR-2031 Hardware Manual... -
Page 18: Wall Mounting
4 millimeters. For detailed information about the mounting dimensions see Figure in Chapter 1.7. When mounting the wall mounting clip, tighten the screws with max. torque of 0.4 Nm. Figure 8: Screwed Wall Mounting Clip ICR-2031 Hardware Manual... -
Page 19: Din Rail Mounting
DIN rail clip hitched to the DIN rail get out of this rail and then fold out the bottom part of the router away from the DIN rail, see Figure 10. Figure 10: Removing Router from the DIN Rail ICR-2031 Hardware Manual... -
Page 20: Product Label
1. Product Overview 1.11 Product Label 1.11 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 11: Product Label ICR-2031 Hardware Manual... -
Page 21: Hardware Functionality
• To insert a SIM card, push the card into the slot until it clicks into place. • Put the cover back and secure it with the two screws. Figure 12: SIM Card Insertion ICR-2031 Hardware Manual... -
Page 22: Antennas
Transmit Data- (negative pole) Receive Data+ (positive pole) — — — — Receive Data- (negative pole) — — — — Table 6: Ethernet Connector Pinout Description The isolation barrier of the Ethernet ports against the ground is 1500 V. ICR-2031 Hardware Manual... -
Page 23: Power Supply
The metal case of the router is not connected to the negative pole of the power supply (common pole). If recommended for the installation environment, it is advised to protect the router by properly grounding it using the grounding screw, as illustrated in Figure 15. Figure 15: Position of the Grounding Screw ICR-2031 Hardware Manual... -
Page 24: I/O Port Interfaces
The I/O user interface is designed for digital input processing and digital output control. For detailed electrical parameters see Chapter 4.6. The functional scheme of connection for the digital input and digital output is in Figure 17. Figure 17: Functional Scheme of the Digital Interface ICR-2031 Hardware Manual... -
Page 25: Led Status Indication
Green Selected 100 Mbps bit rate. Green Selected 10 Mbps bit rate. ETH0 Orange The network cable is connected. Orange Brief off blinks Data transmission. Orange The network cable is not connected. Table 9: LED Status Indication ICR-2031 Hardware Manual... -
Page 26: Reset Functions
RST button for at least 10 seconds. This action will reset the router’s configuration to the default settings. Use a narrow screwdriver or any small tool to press the RST button. Figure 18: Resetting the Router ICR-2031 Hardware Manual... -
Page 27: First Use
All routers have the WebAccess/DMP client pre-installed by default. The activated client periodically uploads router identifiers and configuration to the WebAccess/DMP server. See the configuration manual [1], chapter Basic Information WebAccess/DMP Configuration, for more information. If the router’s label lacks a unique password, use the password root . ICR-2031 Hardware Manual... -
Page 28: Technical Specifications
Dimensions of device w/o clip 25 mm (4.06" 3.74" 0.98") DIN rail clip (optional part) specification DIN 35 mm, EN 60715 Weight Box w/o clip 335 g (0.74 lbs) Table 10: Basic Parameters For product revision 2.0 and higher. ICR-2031 Hardware Manual... -
Page 29: Standards And Regulations
EN IEC 62368-1, EN IEC 62311, UL E487720 , IEEE 802.3 Transportation E-Mark (E8), homologation number: 10R - 06 14028 National CE, UKCA compliant Environmental REACH, RoHS3 and WEEE compliant Table 11: Standards and Regulations For product revision 2.0 and higher. ICR-2031 Hardware Manual... -
Page 30: Type Tests And Environmental Conditions
Test Nb, -40 C / +75 C, 3h/3h, 2 cycles, 3 K/min temperature Dry heat, cyclic EN 60068-2-30 +55 C / +25 C, rel. humidity 95 %, 6 h-6 h Table 12: Type Tests and Environmental Conditions ICR-2031 Hardware Manual... -
Page 31: Parameters Of Cellular Module
Bit rates: up to 42 Mbps (DL) / 5.76 Mbps (UL) EDGE/GPRS Supported frequencies: B8 (900 MHz), B3 (1800 MHz) parameters Bit rates: up to 296 kbps (DL) / 236.8 kbps (UL) Table 13: Technical Parameters of Cellular Module ICR-2031 Hardware Manual... -
Page 32: Parameters Of Wifi
Station (STA) Multirole (STA&AP) Security – Standards WPA, WPA2, WPA3, 802.1X Security – Encryption WEP, TKIP, AES TX Power Max. 18 dBm @ 2.4 GHz Max. 15 dBm @ 5 GHz Table 14: Technical Parameters of WiFi ICR-2031 Hardware Manual... -
Page 33: Parameters Of I/O Ports
600 MHz CPU power 4,72 DMIPS/MHz Flash memory 64 MB NOR Flash • 12 MB for Router Apps • 2 MB for customer data RAM size 128 MB Watchdog HW Watchdog Battery Backup RTC Table 16: System Configuration ICR-2031 Hardware Manual... -
Page 34: Appendix A: Troubleshooting
Also enable "Send all remaining incoming packets to default server" feature and fill in the IP address of your Web server. On the Web server, the default gateway has to be the IP address of the router. DynDNS doesn’t work. • With private APN this will not work. ICR-2031 Hardware Manual... - Page 35 I switched the router to offline mode by SMS message, but the router is in online mode after reboot. • SMS messages do not change the router configuration. They remain in effect only until the router is rebooted. ICR-2031 Hardware Manual...
- Page 36 Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-2031 Hardware Manual...
- Page 37 +1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support.iiot.ana@advantech.com Web: www.advantech.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-2031 Hardware Manual...
- Page 38 At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-2031 Hardware Manual...
- Page 39 Appendix D: Related Documents ICR-2[0456]00 Configuration Manual [EP] Product-related documents and applications can be obtained on Engineering Portal at https://icr.advantech.com/download address. ICR-2031 Hardware Manual...
- Page 40 We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Directive 2014/53/EU. We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
