Comeup DV-6000S Quick Manual

Introduction

Feature

Line pull:
Wire rope:
Brake:
Clutch:
Control:

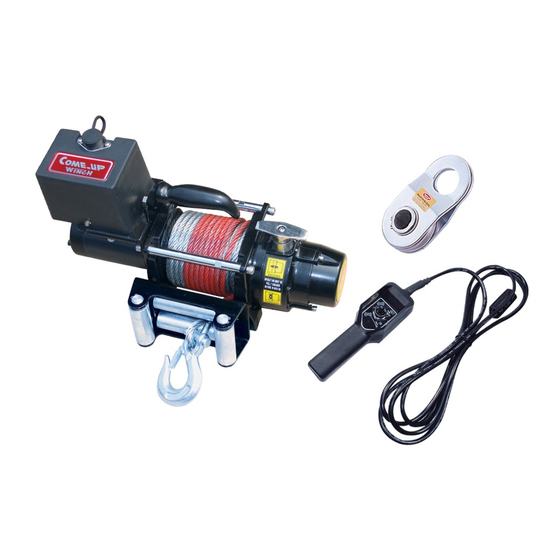

Unpacking

．Winch assembly.................................................................... 1 pc
．Detachable control box ............................................................ 1 pc
．Remote control..................................................................... 1 pc
．Wire rope with hook............................................................... 1 pc
．Roller fairlead....................................................................... 1 pc
．1.8 m ( 6' ) 6 gauge battery leads.............................................. 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
． Winch PN
． Part description
． Quantity for each part

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be
clear and dry.
Winch and roller fairlead mountings
． It is very important that the winch will be
mounted on a flat and hard surface of mounting
2,722 kg / 6,000 lb wire rope first layer
7.1 mm × 24.4 m (9/32" × 80') galvanized aircraft A7 × 19
Patented cone brake holds full load
Turn the T-handle for rapid wire rope payout
Handheld pendant switch powers the winch
Self-Recovery Winch
DV-6000S
Model:
． Serial number
． Replacement part number
PN: 854756 12V DC
856129 24V DC
