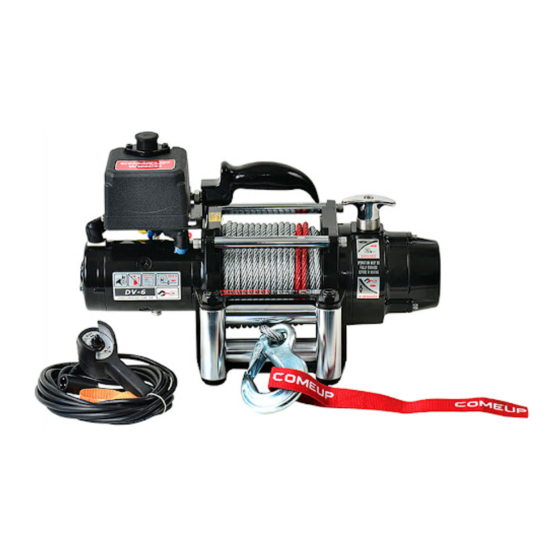

Comeup DV-6 Manual

Introduction

Feature

Line pull:
Wire rope:
Brake:
Clutch:
Control:

Unpacking

．Winch assembly.................................................................... 1 pc
．Control box ............................................................................... 1 pc
．Remote control..................................................................... 1 pc
．Wire rope with hook............................................................... 1 pc
．Roller fairlead....................................................................... 1 pc
．1.8 m ( 6' ) 6 gauge battery lead............................................... 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
． Winch PN
． Part description
． Quantity for each part

Installation

Before using the winch, make sure all electrical
components have no corrosion or damaged; the
environment should be clear and dry.
Winch and roller fairlead mountings
． It is very important that the winch will be mounted on a
flat and hard surface of mounting channel in order to
2,722 kg / 6,000 lb wire rope first layer
7.1 mm × 24.4 m (9/32" × 80') galvanized aircraft A7 × 19
Patented cone brake holds full load
Turn the T-handle for rapid wire rope payout
Handheld pendant switch powers the winch
Self-Recovery Winch
Model:
． Serial number
． Replacement part number
DV-6
PN: 854750
