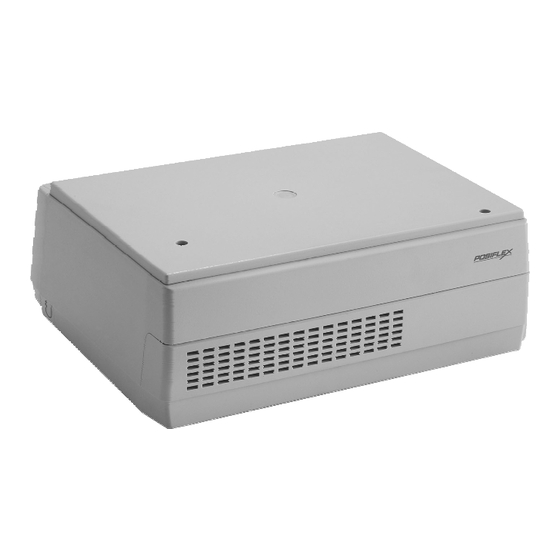

HT-3600
PB-3600
User's Manual
FCC Notes:
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions manual, may cause interference to radio
communications. It has been tested and found to comply with
limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which
are designed to provide reasonable protection against interference when operated in a
commercial environment. Operation of this equipment in a residential area is likely to
cause interference in which case the user at its own expense will be required to take
whatever measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
About This Manual:
Posiflex has made every effort for the accuracy of the content in this manual. However,
Posiflex will assume no liability for any technical inaccuracies or editorial or other
errors or omissions contained herein, nor for direct, indirect, incidental, consequential
or otherwise damages, including without limitation loss of data or profits, resulting
from the furnishing, performance, or use of this material.
This information is provided "as is" and Posiflex Technology, Inc. expressly disclaims
any warranties, expressed, implied or statutory, including without limitation implied
warranties of merchantability or fitness for particular purpose, good title and against
infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide
applicative notices and arrangement for special options utilizing this product. The user
may find the most up to date information of the hardware from web sites:
http://www.posiflex.com or http://www.posiflex.com.tw
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Technology Inc. the publisher of this documentation.
© Copyright Posiflex Technology Inc. 2011
All brand and product names and trademarks are the property of their respective holders.
P/N: 15450902010
Series
Rev. Original
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-3600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX HT-3600 Series

  • Page 1 About This Manual: Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex will assume no liability for any technical inaccuracies or editorial or other errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material.
  • Page 2: Brief Introduction

    THE USER’S MANUAL The purpose of this manual is to guide the user in the initial installation and general use of the Posiflex HT/PB-3600 series of POS terminals. It does not explain any application software that may be supplied with it.
  • Page 3 For the HT-3600 series terminal is powered by most up to date CPU and provides a color TFT LCD screen with a resistive type touch control panel on sturdy and easily adjustable structure on top of the main unit.
  • Page 4: The Optional Items

    HT-3600 system unit with the 12.1” LCD panel integrated on top or PB-3600 system unit without the cashier display panel. User’s manual. Recovery DVD for preloaded OS or Posiflex Product Information DVD for driver utilities without OS. Optional components installed to system unit as ordered.
  • Page 5: Wireless Lan (Option)

    authorized dealers and should be handled only by a qualified technician. MAIN CONNECTION AREA The HT/PB-3600 series is constructed for very easy maintenance. Press inward both plastic buttons at lower rear corners on both sides of the system unit (circled in right picture) to release the lower part of back cable cover. Please note that there are 2 plastic hooks on top cover holding the back cable cover as marked on upper part of the picture.
  • Page 6 10” 2 DISPLAY (OPTION) When the HT-3600 series is ordered with the 2 display monitor LM-2010 or when the LM-2010 is ordered for PB-3600 to work as the primary monitor, the monitor will be delivered in separate package from the system unit.
  • Page 7: Customer Display (Option)

    +12V DC supply in the VGA connector under technical guidance from your distributor. CUSTOMER DISPLAY (OPTION) For HT/PB-3600 series, Posiflex provides customer pole displays for terminal integration such as PD-2601/2601U and PD-307/307U. Please follow the Installation Guide in package of the options. The customer display will occupy one USB or COM port in the connection area.
  • Page 8: Operating System Installation

    For the HT/PB-3600 system preloaded with Windows system on HDD, Posiflex provides recovery DVD delivered with the hybrid terminal for the preloaded operating system. The System Integrator shall take care of software restoration after OS recovered. Use a USB interface external CDROM or DVD COMBO drive for such action.
  • Page 9 UPS function module option is installed. Battery replacement: In the preloaded OS for a HT/PB-3600 series with UPS function module option, there is a built in utility Posiflex Power Switch Manager that will indicate the UPS battery status of the battery. When an installed UPS...
  • Page 10 (secondary) monitor through the VGA signal cable after proper internal setting change. This may cause permanent damage to any other monitor not designed to use this facility. Please use only a Posiflex LM-2010 monitor designed for the HT system. Consult your dealer if you have any doubt.
  • Page 11: Power On/Off Control

    indicates Power/Stand-By status. POWER ON/OFF CONTROL The HT/PB-3600 terminal implements electronic power control, such that the main power to the system may be controlled by many methods as below: Hardware power switch Software OFF command Automatic power ON control Emergency power OFF Hardware Power Switch This button is located at bottom front corner of right side as in right picture and can be used to turn the system on...
  • Page 12 The end user of the HT-3600 terminals is not supposed to install the utility drivers personally. If an optional preloaded OS is ordered, the required driver will be already installed in the preloaded OS. However, the driver will always be available over our web site: http://www.posiflex.com Touch Function Mouse emulation The touch panel in HT-3600 system works like a standard mouse within the (primary) screen display area when its driver is properly installed.
  • Page 13: Customer Display

    Touch terminal manager Before using the resistive type touch control panel, dual-touch function can be apply if you connect any Posiflex USB controlled touch monitor to the VGA port of HT-3600 system for extended secondary display application. A program named “Posiflex Touch Terminal Manager” is installed in the preloaded Windows system for the user to maneuver versatile features of the touch terminal with a touch panel controller.
  • Page 14 VENTILATION MAINTENANCE To keep this equipment in orderly service, following maintenance should be performed on a regular basis. Removing Front Cover Please first remove any power and signal connection to this equipment. Please then check at the bottom side Front Cover of the chassis that there is a gap between the bottom side Release...
  • Page 15 Cleaning for Front Ventilation Use vacuum cleaner to remove any dust or threads accumulation away from both the ventilation holes on front cover and ventilation grids on chassis exposed after removal of the front cover. HT-3600 PB-3600 Front Ventilation Grids on Chassis Ventilation Holes on Front Cover Replacing Front Cover Follow the opposite procedure as removing the front cover to replace the front...
  • Page 16 maneuver if there is already a pole display mounted. Cleaning for Side Ventilation Use vacuum cleaner to remove any dust or threads accumulation away from outsides of both ventilation grids on chassis exposed after removal of the front cover as in pictures below and close back the top cover when done. Side Ventilation Grids on...
