HT-4712 / PB-4700
POS Terminal / POS Box
Quick Installation Guide
HT-4712
Package Contents
HT-4712 POS terminal or PB-4700 POS box x 1
Power adaptor x 1
Power cord x 1
Quick installation guide x 1
Recovery or information CD x 1
Product Features
Standard Features
System
Intel Haswell CPU, LGA 1150 package
Intel H81 or optional Q87 supporting RAID
Dual-channel DDR3 SO-DIMM x2, 1600MT/s, Max 16GB
Mechanical Structure
Gear button to adjust LCD tilt angle from 40° to 75°
Gear button to adjust LCD swivel angle from 0° to 16°
Display (for HT-4712 ONLY)
12" LCD touch panel, 1024x768 resolution
5 wires, touch panel
15570900010 Ver. Original
http://www.posiflex.com
PB-4700
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX HT-4712
Summary of Contents for POSIFLEX HT-4712

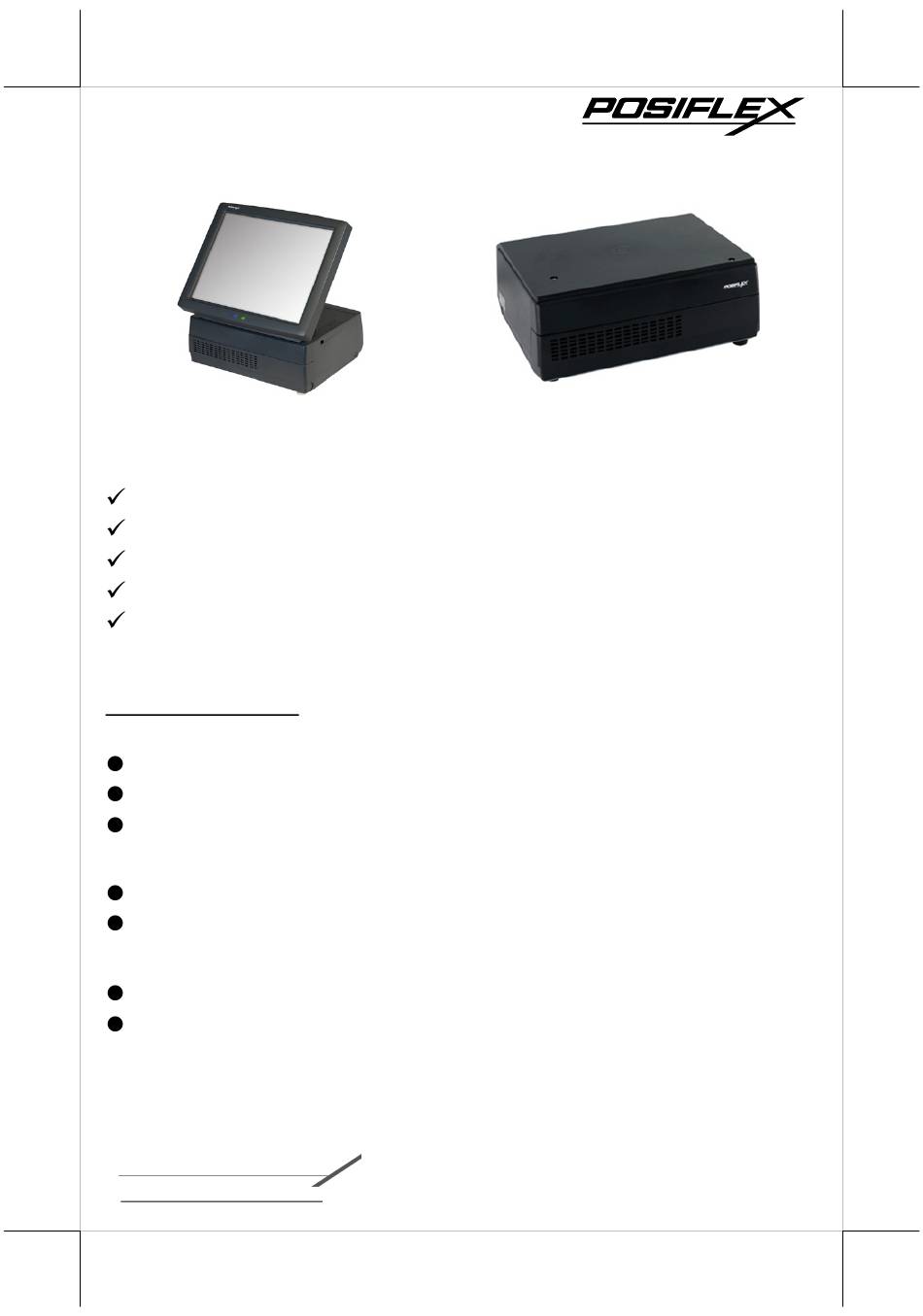

- Page 1 POS Terminal / POS Box Quick Installation Guide HT-4712 PB-4700 Package Contents HT-4712 POS terminal or PB-4700 POS box x 1 Power adaptor x 1 Power cord x 1 Quick installation guide x 1 Recovery or information CD x 1...
- Page 2 SSD, through SATA interface POSReady 7, Windows 7, Windows Embedded 8.1 Industry, Linux per request WIFI 802.11 b/g/n, through external USB dongle Views of the HT-4712/PB-4700 Front View of HT-4712/PB-4700 12-inch LCD Touch Panel Power LED Indicator LAN LED Indicator...
- Page 3 Left Side View of HT-4712/PB-4700 I/O-Port Protective Cover Release Button Right Side View of HT-4712/PB-4700 Extended USB Port Cover Power Button Top View of HT-4712/PB-4700 Left-Right Viewing Angle Up-Down Viewing Angle Adjustment Button Adjustment Button Upper Cover Customer Pole Display...
- Page 4 Bottom View of HT-4712/PB-4700 Rubber Cushion View of I/O Interfaces of HT-4712/PB-4700 11 12 7 8 9 (Reserved for optional (Reserved for optional PoweredUSB Port or PoweredUSB Port or COM port) COM port) 12V DC-IN Power Jack COM1 ~ COM4...
- Page 5 Connecting Power Adapter and I/O Cables Follow the steps listed below to open the rear I/O-port protective cover and connect cables. Press the release buttons, with forefingers, on the left and right sides of the upper cover of the POS box. Press and hold the upper right and upper left sections of rear I/O-port protective cover with...
- Page 6 Close the rear I/O-port protective cover Remember to close the rear I/O-port protective cover after completing in the power adapter and I/O cable connection. Follow the steps listed below to close the cover. Align the two wedges of the top of the rear I/O-port protective cover with the two wedged portions of the upper cover of the...
-
Page 7: Status Led Indicator
Operating System Recovery For the HT/PB-4700 main system preloaded with an operating system on HDD, Posiflex provides a recovery CD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered. - Page 8 Adjustment of LCD Monitor for A Better Viewing Angle (For HT-4712 Only) For an optimal viewing angle, follow the steps listed below to adjust the LCD monitor of the HT-4712. Vertical Adjustment Press and hold the up-down viewing angle adjustment button.
- Page 9 A and B. Optional Upgrade Kits Posiflex HT/PB-4700 can work with multiple optional upgrade kits, such as 2 LCD monitor, customer pole display, side-mount MSR, keyboard and the like. For the detailed instruction, refer to the technical manual of HT/PB-4700 or each of the user manuals of the optional upgrade kits.
- Page 10 You will see the extended USB port through which the side mount upgrade kit is connected to the POS box. Cleaning the Front Ventilation Holes and Grids Use vacuum cleaner to remove any dust away from both the ventilation holes on the front cover and ventilation grids on chassis exposed after removal of the front cover.
-
Page 11: Specifications
Specifications PB-4700 HT-4712 i3 4330TE / Pentium G3320TE / Celeron G1820 Chipset Intel H81 or optional Q87 for RAID function Memory Dual channels, DDR3 SO-DIMM x2, 1600MT/s, Max 16GB POSReady 7, Windows 7, Windows Embedded 8.1 Industry, Linux 12" LCD panel ,1024x768... - Page 12 / storage temp.: 20 to 85 Temp & Humidity humidity: 10 to 90 %; 5 to 90 % (operation condition) To get the detailed information on HT/PB-4700, please download the technical manual of this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
