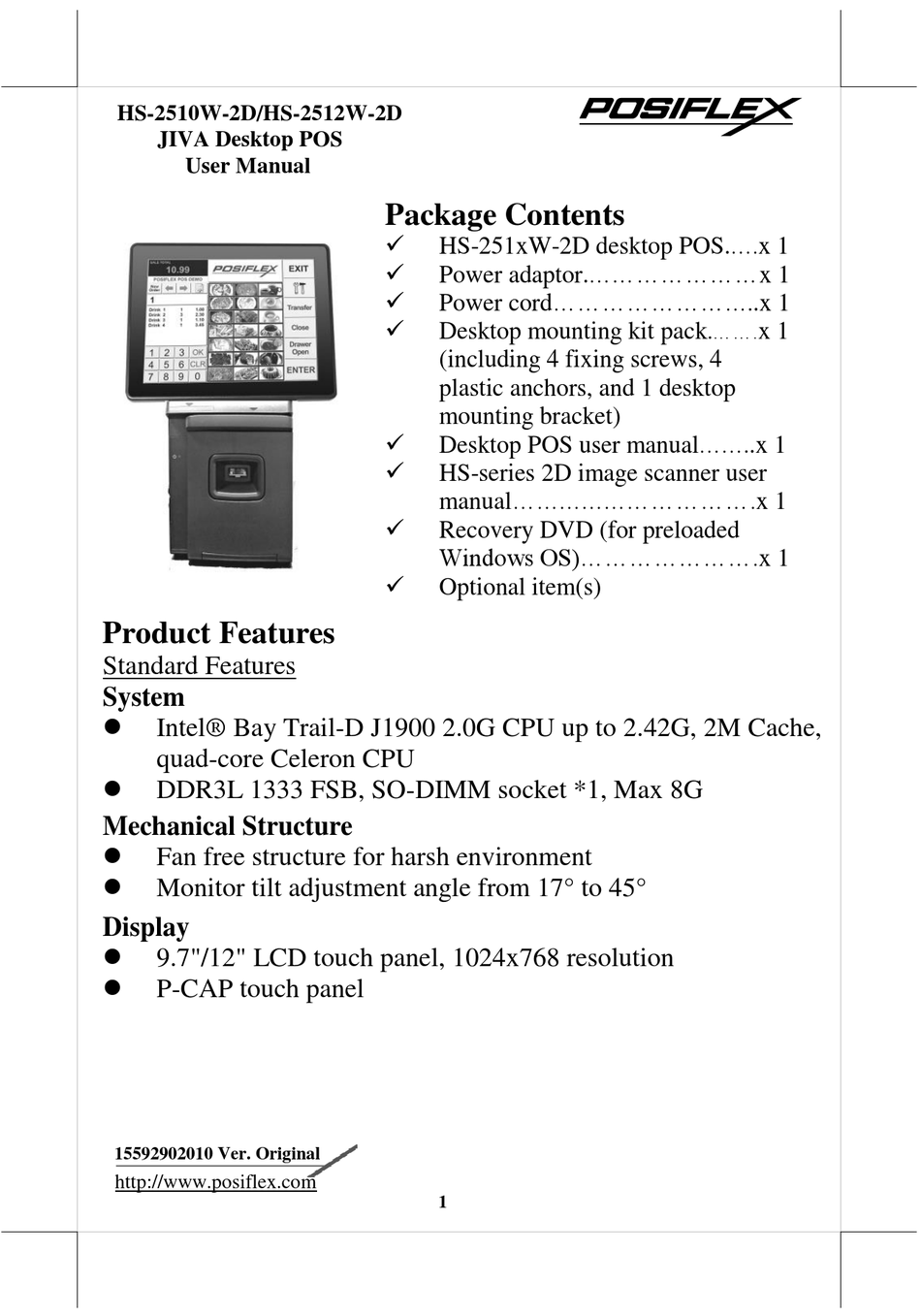

HS-2510W-2D/HS-2512W-2D
JIVA Desktop POS
User Manual
Product Features
Standard Features
System
Intel® Bay Trail-D J1900 2.0G CPU up to 2.42G, 2M Cache,
quad-core Celeron CPU
DDR3L 1333 FSB, SO-DIMM socket *1, Max 8G
Mechanical Structure
Fan free structure for harsh environment
Monitor tilt adjustment angle from 17° to 45°
Display
9.7"/12" LCD touch panel, 1024x768 resolution
P-CAP touch panel
15592902010 Ver. Original
http://www.posiflex.com
Package Contents
HS-251xW-2D desktop POS.
Power adaptor.
Power cord.....................
Desktop mounting kit pack
(including 4 fixing screws, 4
plastic anchors, and 1 desktop
mounting bracket)
Desktop POS user manual
HS-series 2D image scanner user
............
manual...
Recovery DVD (for preloaded
Windows OS)......................x 1
Optional item(s)
1
....
x 1
..................x 1
...
....
.x 1
.......
x 1
.
.......
.x 1
................x 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX HS-2510W-2D
Summary of Contents for POSIFLEX HS-2510W-2D
- Page 1 HS-2510W-2D/HS-2512W-2D JIVA Desktop POS User Manual Package Contents …. HS-251xW-2D desktop POS. ………………x 1 … Power adaptor. …. Power cord………………… .x 1 ……. Desktop mounting kit pack (including 4 fixing screws, 4 plastic anchors, and 1 desktop mounting bracket) ...
- Page 2 Optional Items System SSD storage device DDR3L 1333 FSB, SO-DIMM socket *1, Max 8G POSReady 7, Windows 7, Windows Embedded 8.1 Industry per request WIFI Wireless LAN Views of the HS-251xW-2D Front View of HS-251xW-2D LCD Touch Panel 3-track Magnetic Stripe Reader Smart Card Reader...
- Page 3 Left Side View of HS-251xW-2D Power Button Bottom View of HS-251xW-2D Bottom IO Interface View of I/O Interface of HS-251wX-2D Top I/O Interface COM (RJ50) Port DB25 parallel port USB3.0 Port VGA Port...
- Page 4 Bottom I/O Interface 12VDC-IN Power Jack RJ11 Cash Drawer Port USB2.0 Port RJ45 LAN Port COM Port PS2 Port for Keyboard Line-Out Jack Connecting Power Adapter and I/O Cables Follow the steps listed below to open the bottom I/O-port protective cover and connect cables. Make the desktop POS lie on the surface of a desk and the LCD touch panel face down.
- Page 5 Connect power adapter and I/O cables to the bottom I/O interface of the desktop POS. Make the cover join to the wedge portions of the rear plate of the POS. Determine that the cover is well wedged to the wedge portions of the rear plate of the POS.
- Page 6 Determine that the I/O Cable out interface is covered and the cable passes through the cable exit. Connecting I/O Cables to the Top I/O Interface for Customer Display If you want to connect I/O cable to the top I/O interface, follow the steps listed below to open the top I/O-port protective cover and connect I/O cables to the top I/O interface.
- Page 7 Remove the shield from the bracket of the display. Pass the connector of a cable through the cable exit of the bracket of the display. Connect the connector of the cable to the port of the customer display. Cover the portion A of the bracket with the shield.
- Page 8 Determine that the shield covering the cable is firmly fixed onto the bracket. Align the four holes of the bracket with the four screw holes formed on the bracket- fixing portion of the top I/O interface section. 10. Fix the cable into the concave area of the display bracket for arrangement.
- Page 9 12. Connect the connector of the cable to the port of the top I/O interface. 13. Break the cable-exit cover. 14. Make the cover join to the wedge portions of the rear plate of the POS. 15. Determine that the cover is well wedged to the wedge portions of the rear plate of the POS.
- Page 10 17. Determine that the I/O interface is covered and the Cable out cable passes through the cable exit. 18. The customer display installation onto the main unit is completed. Mounting the POS onto a Table To avoid the POS from backward tilting and wagging when a user touches the LCD panel, use the desktop-mounting kit shipped with the POS to hold and secure the POS firmly on a table.
- Page 11 Align the 2 screw bolts on the bottom of the POS with the 2 tracks of the bracket. Push hard the POS backward along the 2 tracks of the bracket on the table to firmly secure the POS. To completely mount the desktop POS onto the table firmly, you can apply two more self-taping screws into the 2 holes formed on the backside of base stand of the POS, as illustrated below.
-
Page 12: Status Led Indicator
Operating System Recovery For the HS-251xW-2D main system preloaded with an operating system on HDD, Posiflex provides a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is... - Page 13 A and B at the angle from 17° to 45°. Optional Upgrade Kits Posiflex HS-251xW-2D can work with multiple optional upgrade kits, such as MSR, Smart Card Reader and the like. For the detailed instruction, refer to the technical manual of HS-251xW-...
-
Page 14: Specifications
9.7" 1024 x 768 LCD P-CAP 12" 1024 x 768 LCD P-CAP Display touch panel touch panel D-SUB 15 Pin, with 12V power for Posiflex LCD Monitor Interface Two SATA ports for 2.5'' or 1'' SATA device; EMMC adaptor Storage Board 8G/16G/32G on M/B... - Page 15 HS-2510W-2D HS-2512W-2D Mechanical Desktop Installation Power on (blue) / standby (orange), bi-color LED indicators Indicator Touch USB interface Controller Touch P-CAP touch Sensor Brightness By software Control Scanner Built-in 2D image scanner Operating 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD);...
- Page 16 DataMatrix 40~120mm (Resolution(0.31)) (Measured from the front end of the scanner) ※ The product information and specifications are subject to change without prior notice. To get the detailed information on HS-251xW-2D, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
