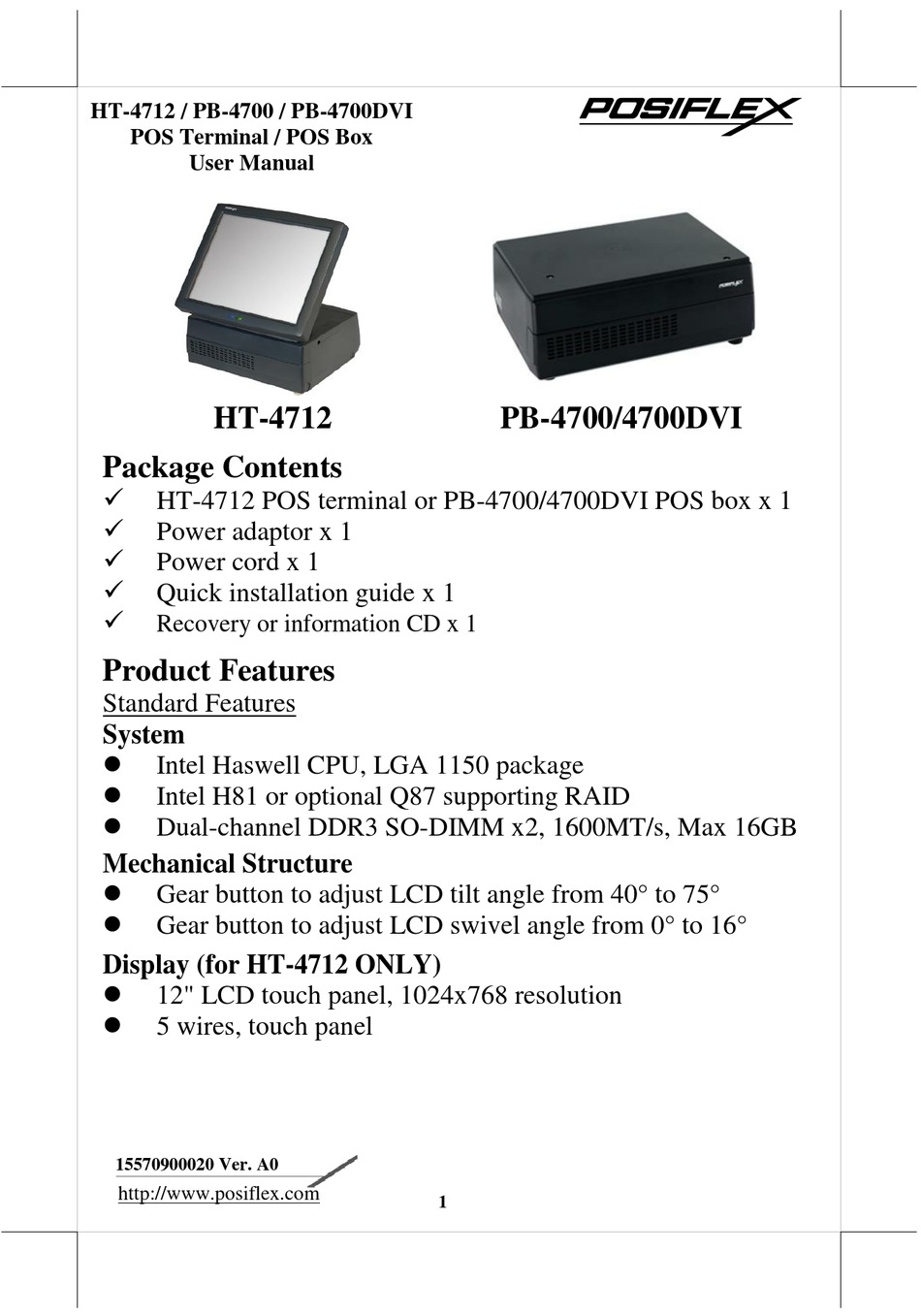

HT-4712 / PB-4700 / PB-4700DVI
POS Terminal / POS Box
User Manual
HT-4712
Package Contents
HT-4712 POS terminal or PB-4700/4700DVI POS box x 1
Power adaptor x 1
Power cord x 1
Quick installation guide x 1
Recovery or information CD x 1
Product Features
Standard Features
System
Intel Haswell CPU, LGA 1150 package
Intel H81 or optional Q87 supporting RAID
Dual-channel DDR3 SO-DIMM x2, 1600MT/s, Max 16GB
Mechanical Structure
Gear button to adjust LCD tilt angle from 40° to 75°
Gear button to adjust LCD swivel angle from 0° to 16°
Display (for HT-4712 ONLY)
12" LCD touch panel, 1024x768 resolution
5 wires, touch panel
15570900020 Ver. A0
http://www.posiflex.com
PB-4700/4700DVI
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB-4700DVI and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX PB-4700DVI

Summary of Contents for POSIFLEX PB-4700DVI

  • Page 1 HT-4712 / PB-4700 / PB-4700DVI POS Terminal / POS Box User Manual HT-4712 PB-4700/4700DVI Package Contents  HT-4712 POS terminal or PB-4700/4700DVI POS box x 1  Power adaptor x 1  Power cord x 1  Quick installation guide x 1 ...
  • Page 2  POSReady 7, Windows 7, Windows Embedded 8.1 Industry, Linux per request WIFI  802.11 b/g/n, through external USB dongle Views of the HT-4712/PB-4700/PB-4700DVI Front View of HT-4712/PB-4700/PB-4700DVI 12-inch LCD Touch Panel Power LED Indicator LAN LED Indicator Ventilation Grids...
  • Page 3 Left Side View of HT-4712/PB-4700/PB-4700DVI I/O-Port Protective Cover Release Button Right Side View of HT-4712/PB-4700/PB-4700DVI Extended USB Port Cover Power Button Top View of HT-4712/PB-4700/PB-4700DVI Left-Right Viewing Angle Up-Down Viewing Angle Adjustment Button Adjustment Button Upper Cover Customer Pole Display...
  • Page 4 Bottom View of HT-4712/PB-4700/PB-4700DVI Rubber Cushion View of I/O Interfaces of HT-4712/PB-4700 11 12 7 8 9 (Reserved for optional (Reserved for optional PoweredUSB Port or PoweredUSB Port or COM port) COM port) 12V DC-IN Power Jack COM1 ~ COM4...
  • Page 5 View of I/O Interfaces of PB-4700DVI (Reserved for optional (Reserved for optional PoweredUSB Port or PoweredUSB Port or COM port) COM port) 12V DC-IN Power Jack COM1 ~ COM4 Cash Drawer Port Parallel Port VGA Port DVI Port USB2.0 Port USB3.0 Port...
  • Page 6 Connecting Power Adapter and I/O Cables Follow the steps listed below to open the rear I/O-port protective cover and connect cables. Press the release buttons, with forefingers, on the left and right sides of the upper cover of the POS box. Press and hold the upper right and upper left sections of rear I/O-port protective cover with...
  • Page 7 I/O-port protective cover is well closed. Powering ON the HT-4712/PB-4700/PB-4700DVI Then press the power button to power on the main unit. To power it off, press the button again.

  • Page 8: Status Led Indicator

    Operating System Recovery For the HT/PB-4700/PB-4700DVI main system preloaded with an operating system on HDD, Posiflex provides a recovery CD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered.
  • Page 9 Adjustment of LCD Monitor for A Better Viewing Angle (For HT-4712 Only) For an optimal viewing angle, follow the steps listed below to adjust the LCD monitor of the HT-4712. Vertical Adjustment Press and hold the up-down viewing angle adjustment button.
  • Page 10 LCD monitor, customer pole display, side-mount MSR, keyboard and the like. For the detailed instruction, refer to the technical manual of HT-4712/PB- 4700/PB-4700DVI or each of the user manuals of the optional upgrade kits. Extended USB Port The extended USB port is provided for connection of the side mount upgrade kit to the POS box.
  • Page 11 You will see the extended USB port through which the side mount upgrade kit is connected to the POS box. Cleaning the Front Ventilation Holes and Grids Use vacuum cleaner to remove any dust away from both the ventilation holes on the front cover and ventilation grids on chassis exposed after removal of the front cover.

  • Page 12: Specifications

    Specifications PB-4700 PB-4700DVI HT-4712 i3 4330TE / Pentium G3320TE / Celeron G1820 Chipset Intel H81 or optional Q87 for RAID function Memory Dual channels, DDR3 SO-DIMM x2, 1600MT/s, Max 16GB POSReady 7, Windows 7, Windows Embedded 8.1 Industry, Linux 12" LCD...
  • Page 13 Operation temp.: 0 to 40 ℃ / storage temp.: 20 to 85℃ Temp & Humidity humidity: 10 to 90 %; 5 to 90 % (operation condition) ※ To get the detailed information on HT-4712/PB-4700/PB-4700DVI, please download the technical manual of this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
  • Page 14 <MEMO>...
