7. Secure the Connection Unit bracket to the wall:
8. For inverters with Connection Unit - secure the Connection Unit bracket to the wall:
Mark the location of the bracket screw for the DC Safety Unit and drill the hole.
Fasten the bracket using a standard bolt.
Verify that the bracket is firmly attached to the mounting surface.
9. Insert the two supplied screws through the outer heat sink fin on both sides of the
inverter and into the bracket (see Figure 10 ). Tighten the screws with a torque of 4.0
N*m / 2.9 lb.*ft.
Three Phase System MAN-01-00507-4.2

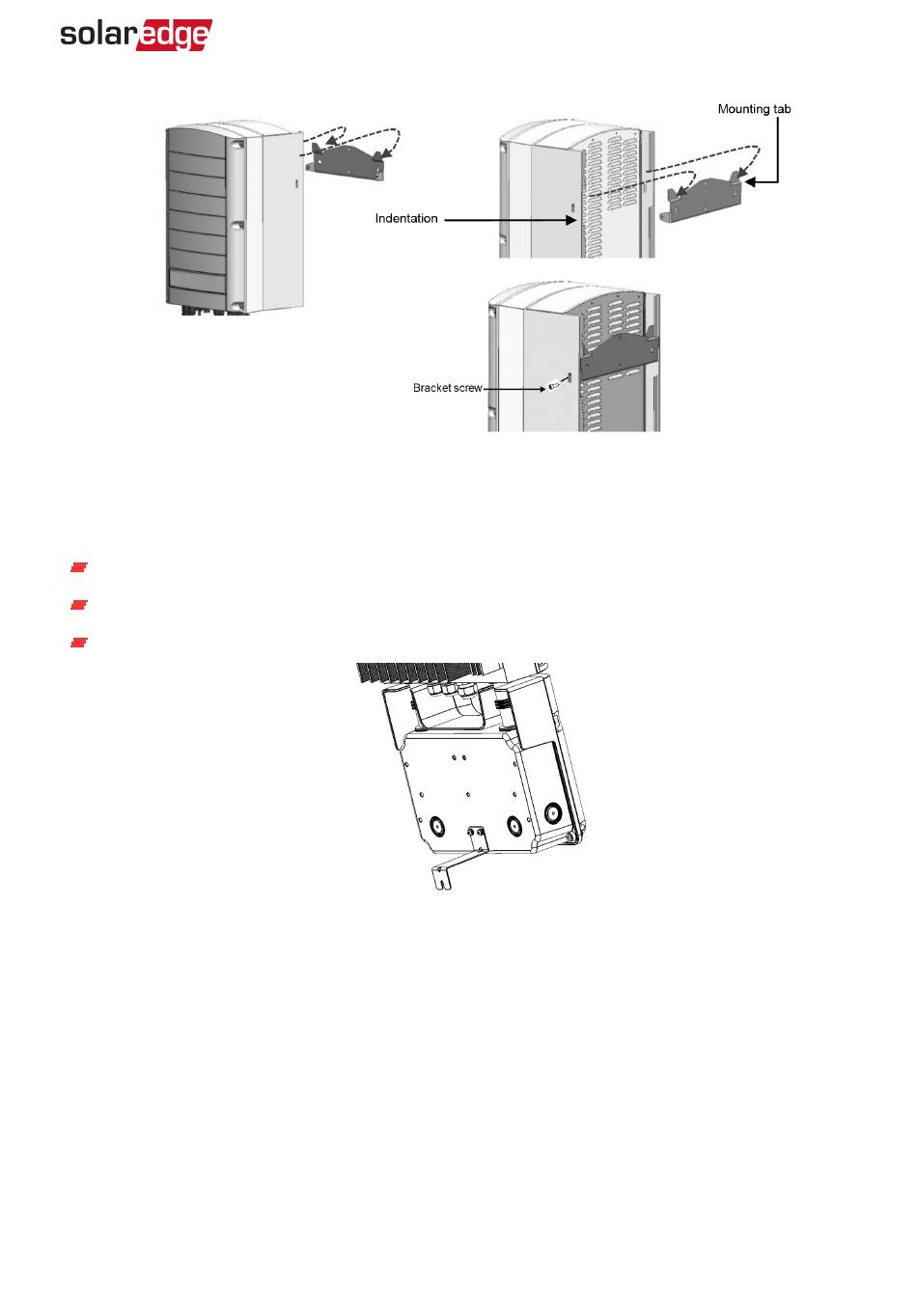

Figure 10: Hanging the inverter on the bracket
Figure 11: DC Safety Unit bracket
