Operating & Maintenance Manual
This manual contains important safety information.
Do not destroy this manual. This manual must be available to the personnel who
operate and maintain this machine.
Doosan purchased Bobcat Company from Ingersoll-Rand Company in
2007. Any reference to Ingersoll-Rand Company or use of trademarks,
service marks, logos, or other proprietary identifying marks belonging
to Ingersoll-Rand Company in this manual is historical or nominative
in nature, and is not meant to suggest a current affiliation between
Ingersoll-Rand Company and Doosan Company or the products of
either.
Utility Equipment
P.O. Box 868 - 501 Sanford Ave
Mocksville, N.C. 27028
Book: 22742944 (3-17-06) Rev. A
Revised (10-12)
Compressor Models

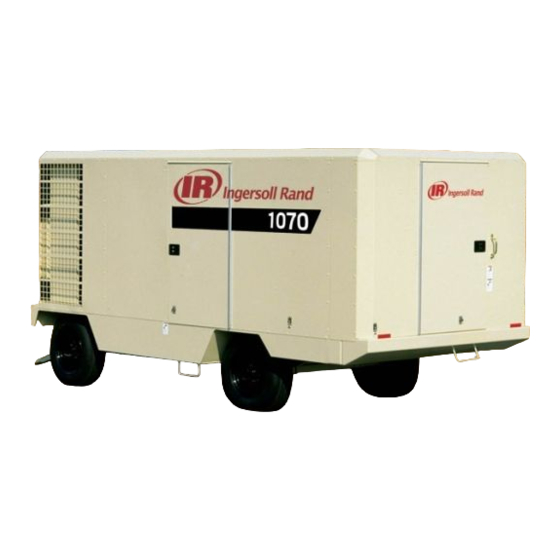

XHP1070WCAT
Code: C
XHP1170WCAT
Code: A
