Manitowoc Grove RT9130E-2 Operator's Manual page 152

SET-UP AND INSTALLATION
26
27
28
29
30
31
32
Item
1
Retaining Pin
2 Mounting Plate
3 Eye Bolt
4 Pin
5 Guide Rail
6 Adjusting Bolt
7 Holding Bracket
8 Plate
9 Pin
10 Guide Rail Mounting Bracket
11 Threaded Plate
12 Grease Fitting
13 Supporting Roller
14 Pin
15 Roller Support
16 Attach Pins
4-24
Description
Published 3-1-2018, Control # 559-03
RT9130E-2 OPERATOR MANUAL
7 m (23 Ft)
Connection Between Fly Nose and
Item
17 Retaining Clips
18 Plate
19 Rear Extension Support Bracket
20 Vertical Adjusting Bolts
21 Horizontal Adjusting Bolts
22 Mounting Bracket
23 Boom
24 7 m (23 ft) Jib
25 11 m (36 ft) Jib
26 Stirrup
27 Bolts
28 Nuts
29 Tension Spring
30 Spacer Ring
31 Pin
32 Catch Hook
Section
(Fly)
Fly
Sheave
11 m (36 ft) Section
DETAIL D

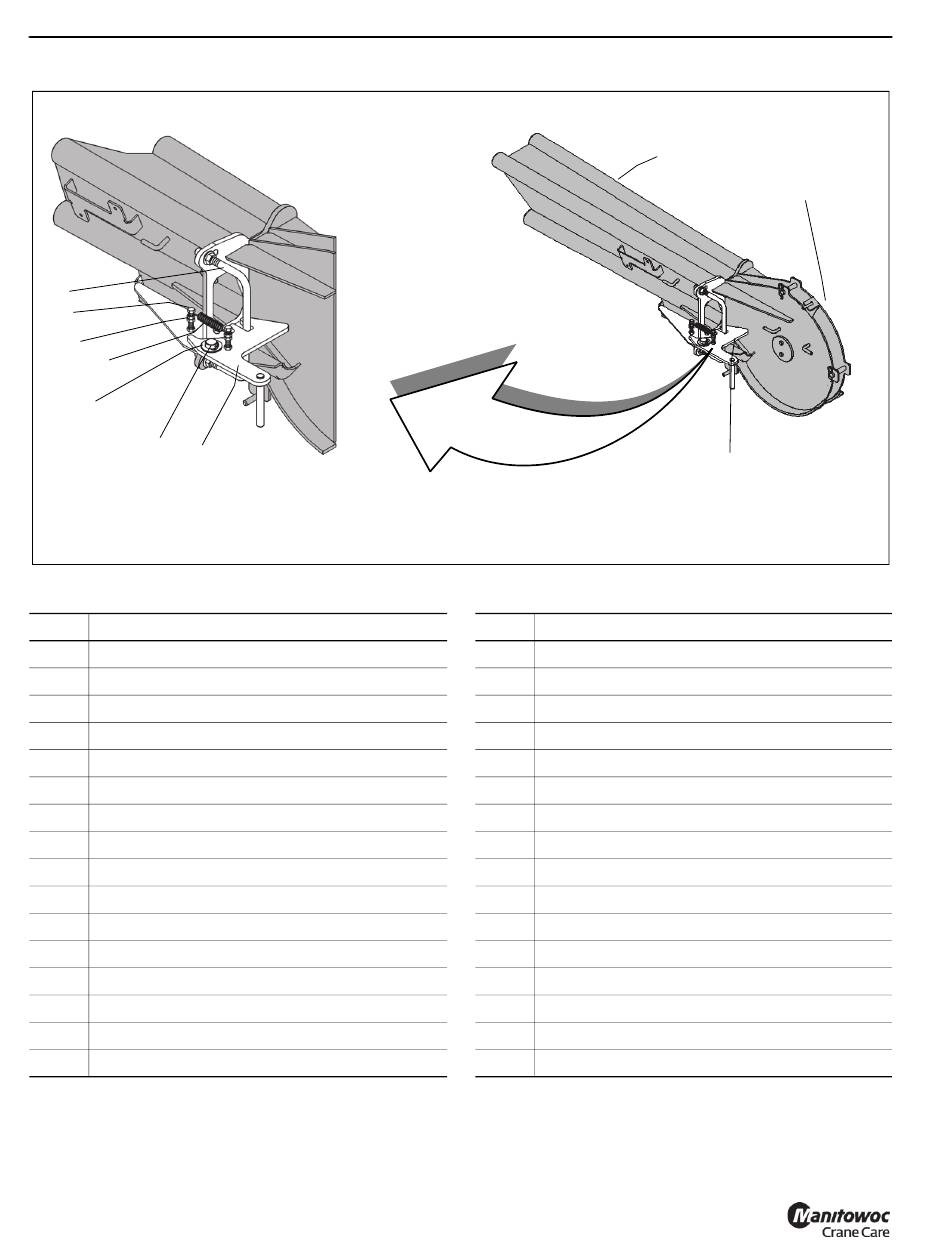

FIGURE 4-15 continued
Description
