Industrial Ethernet Switch
User manual
MIGE2206G-2GF-4GT

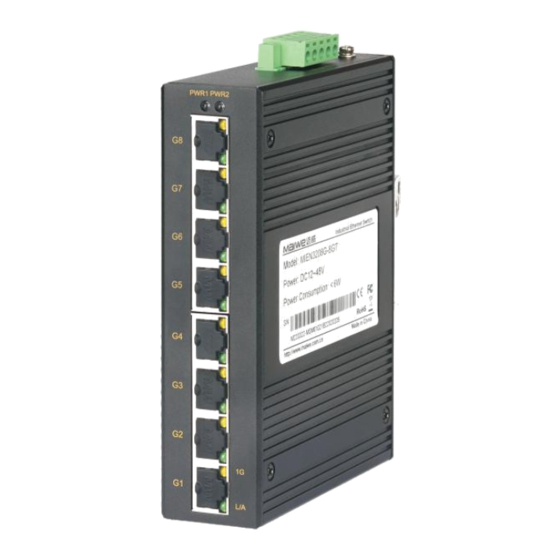

MIGE2208G-8GT
Packing list
The package of this switch contains the following items. If any item is found to be
missing or damaged, please contact the agent or the customer service center of
Maiwe for assistant
Items
Industrial Ethernet Switch
Power cord
User Manual
Product description
The switch is a full Gigabit unmanaged industrial managed din-rail industrial Ethernet
switch. MIGE2206G-2GF-4GT provides 6 Gigabit Ethernet ports (2 Gigabit SFP ports
and 4 Gigabit copper ports). MIGE2208G-8GT provides 8 Gigabit Ethernet ports (8
Gigabit copper ports).
..
MIGE2206G-2GF-4GT
Quantity
Remarks
1PCS
AD220 model only
1PCS
1PCS
MIGE2208G-8GT
Advertisement
Related Manuals for Maiwe MIGE2206G-2GF-4GT
Summary of Contents for Maiwe MIGE2206G-2GF-4GT
- Page 1 Industrial Ethernet Switch The switch is a full Gigabit unmanaged industrial managed din-rail industrial Ethernet switch. MIGE2206G-2GF-4GT provides 6 Gigabit Ethernet ports (2 Gigabit SFP ports User manual and 4 Gigabit copper ports). MIGE2208G-8GT provides 8 Gigabit Ethernet ports (8 Gigabit copper ports).
-
Page 2: Interface Description
Interface description The indicator description of the switch is shown in the following table. Unit:mm Status Definition Indicator lights System status LED Power is connected and operating normally Ground screw The power is unconnected or the system is abnormal System operates normal Blinking Gigabit RJ45 port Gigabit RJ45 port... - Page 3 Hardware installation Device connection Network cables connection Installation Precautions Connect the optical fiber and network cable to the port in the correct To prevent equipment damage or personal injury caused by improper use, observe the following precautions: During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch.
-
Page 4: Specifications
Warning Specifications Signals were transmitted by laser through optical fiber. The laser meets the MIGE2206G-2GF-4GT MIGE2208G-8GT requirement of class I, no harm with normal operation. Do not look directly into the Switch performance fiber port and the end of the optical fiber terminator. - Page 5 IEC61000-4-5(Surge), Level4 for one year. IEC61000-4-4(EFT), Level4 When sending the product back to Maiwe for repair, it is recommended that the IEC61000-4-3(RS), Level4 customer use the original packaging or the packaging with the same protective IEC61000-4-6(CS), Level4 ※The network port supports 6KV lightning protection effect, otherwise the customer shall bear the risks that occur during the transportation.
