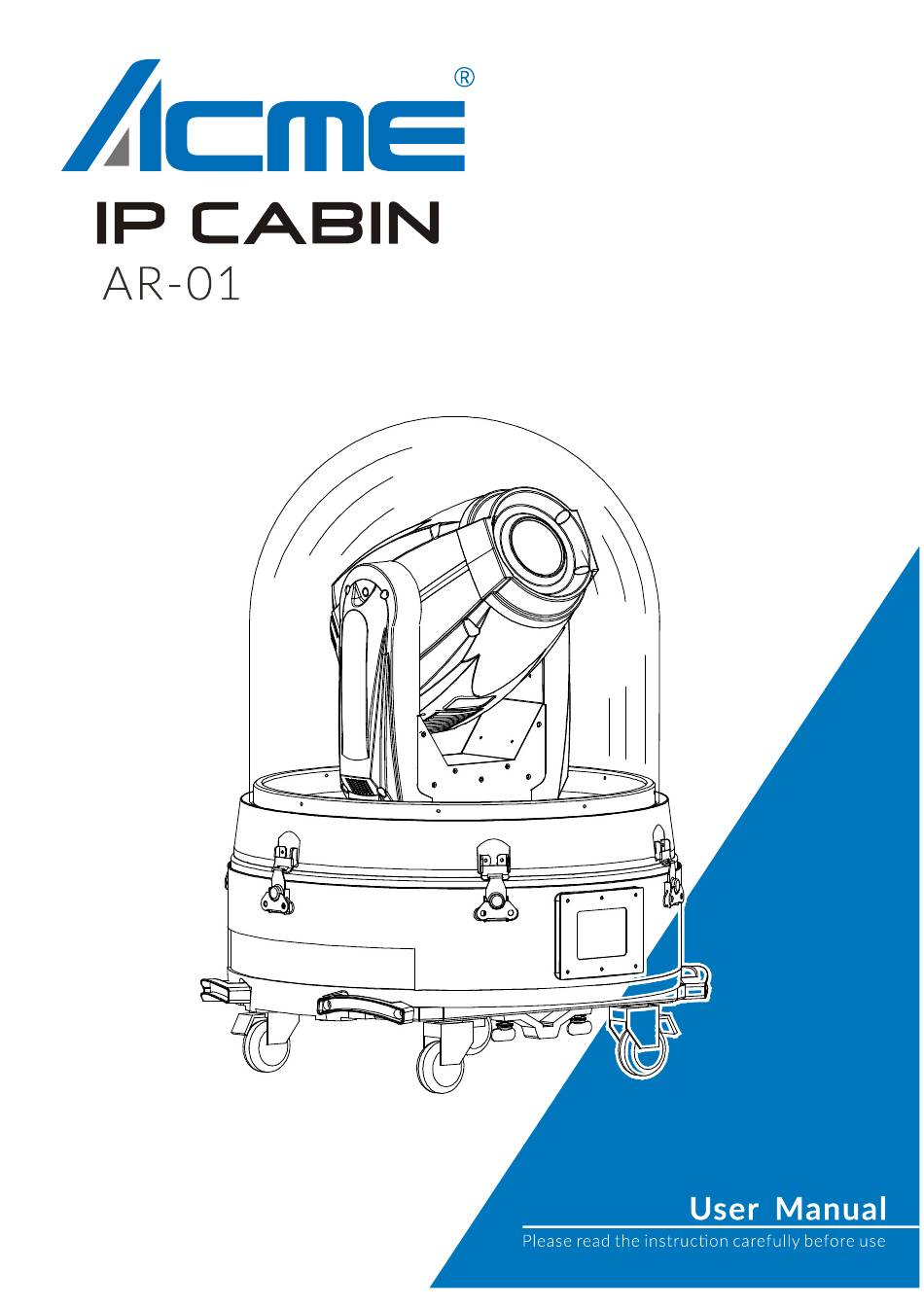

ACME IP Cabin AR-01 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP Cabin AR-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME IP Cabin AR-01

Summary of Contents for ACME IP Cabin AR-01

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions ....................2 2. Technical Specifications ..................3 3. Fixture Function ..................... 4 3.1 Control Panel ....................4 3.2 Main Function ....................6 4. Mounting the fixture ....................6 5. Troubleshooting ..................... 9 6. Fixture Cleaning and Routine Maintenance ............10...

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING  Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...

  • Page 4: Technical Specifications

    2. Technical Specifications  Control: Control Modes: DMX, Wireless control (Optional) Software upgrade: Firmware update via DMX link  Construction: Display: Blue/White LCD Touch-panel Display Data In/Out: 3-pin IP rated connectors Power In/Out: IP rated power connectors Protection rating: IP54 ...

  • Page 5: Fixture Function

    3. Fixture Function 3.1 Control Panel 1. DISPLAY: It will show the fixture’s information on the display. (the fixture temperature is 23 ℃) (the current humidity is 65％) (the electronic current is 3430mA) (the current voltage is 218V) LED INDICATORS (LED 1~6): 2.
  • Page 6 (Notice: Because the fans will begin working while the fixture is connecting to power supply, So the LED 2 may be reserved for another functions) 4. LAMP ON (LED 3) (Orange): When the fixture runs normally, the LED 3 ON; 5.

  • Page 7: Main Function

    3.2 Main Function Enter MENU mode, use buttons select the Voltage Revise, Lamp On/Off or Machine Version, and press the ENTER button to confirm. Then use buttons to setup the selected functions, and press the ENTER button to store. 4. Mounting the fixture The following is the install instructions, please read it carefully for safe operations: 1.
  • Page 8 2. Secondly, please loosen the Thumb screws and take out the Fast Lock Wrench, then use it to loosen the 6 Quick Lock screws as the arrow direction, lift the Main Support Horizontal Plate from the base; 3. Now, please lock the unit on the Main Support Horizontal Plate, make sure the horizontal plate is tightly locked on the Omega clamps of the unit base;...
  • Page 9 4. Then use the Fast Lock Wrench locked the 6 Quick Lock screws; 5. Finally, please cover the Dome on the fixture, and lock the 6 fast locks tightly.

  • Page 10: Troubleshooting

    5. Troubleshooting This is a guide to the general symptoms, problems, and solutions that may occur during the lifetime of your enclosure. However, it is important to remember that problems may occur within the unit itself and these must also be considered. A.

  • Page 11: Fixture Cleaning And Routine Maintenance

    2. Excessive debris in unit. Filter may not be fully pushed into groove. Make sure that it is in place around the whole unit. 3. Excessive water in enclosure. Weep (drain) holes may be clogged. Clear them. 4. Latches do not latch properly. Closure of globe may be obstructed.
  • Page 12 Enclosure should be free of debris both inside and out Bolts should be tight All safety cable should be in good condition Lid seal should be in good condition, Check seal inside and out for gaps. Globe should not be cracked Fans should be moving (it will be necessary to have the power on to check this), with corresponding indicator status Except for the last two items (concerning globe and fan), problems with any of these things can be...
  • Page 15 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 16 Innovation, Quality, Performance...
