LOGIQ C Series Quick Guide

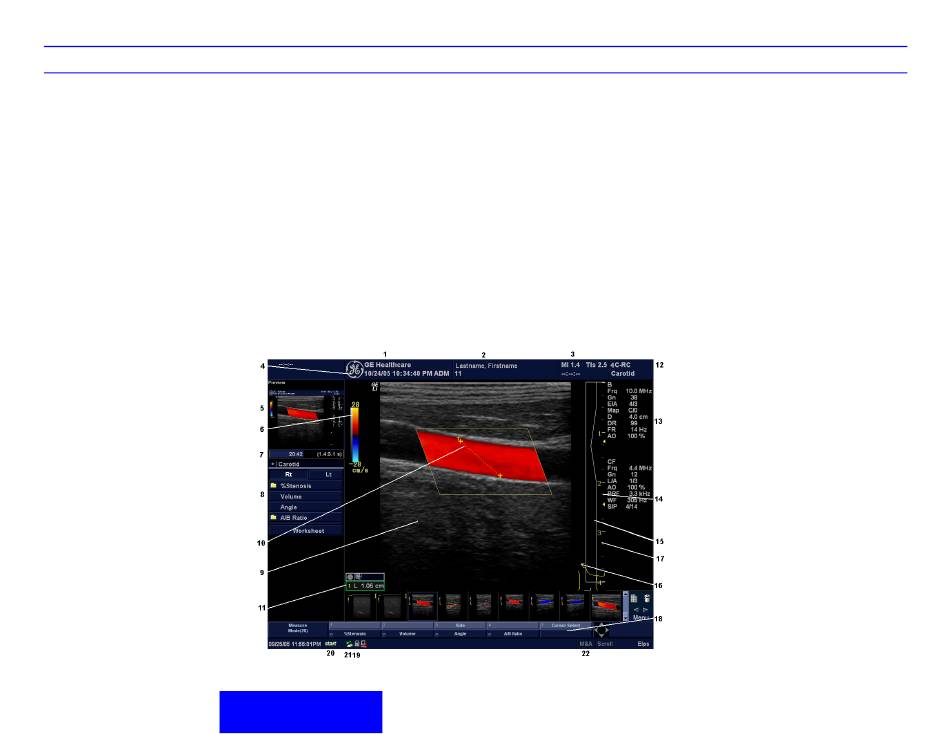

LOGIQ C Series Monitor Display Tour
1. Institution/Hospital Name, Date, Time, Operator
Identification, system status (real-time of
frozen).
2. Patient Name, Patient Identification.
3. Acoustic Output Readout.
4. GE Symbol: Probe Orientation Marker.
Coincides with the probe orientation marking on
the probe.
5. Image Preview.
6. Gray/Color Bar.
7. Cine Gauge.
8. Measurement Summary Window.
9. Image.
10. Measurement (not shown).
Direction 5401576-100 Rev. 1
11. Measurement Results Window.
12. Probe Identifier. Exam Study.
13. Imaging Parameters by Mode (current mode
highlighted).
14. Focal Zone.
15. TGC (not shown on the image).
16. Body Pattern.
17. Depth Scale.
18. Top/Sub Menu.
19. Caps Lock: On or Off.
20. Start Menu Icon
Control Panel Tour
21. Card iconTrackball Functionality Status: Scroll,
M&A (Measurement and Analysis), Position,
Size, Scan Area Width and Tilt.
22. Trackball Functionality Status: Scroll, M&A
(Measurement and Analysis), Position, Size,
Scan Area Width and Tilt
5
