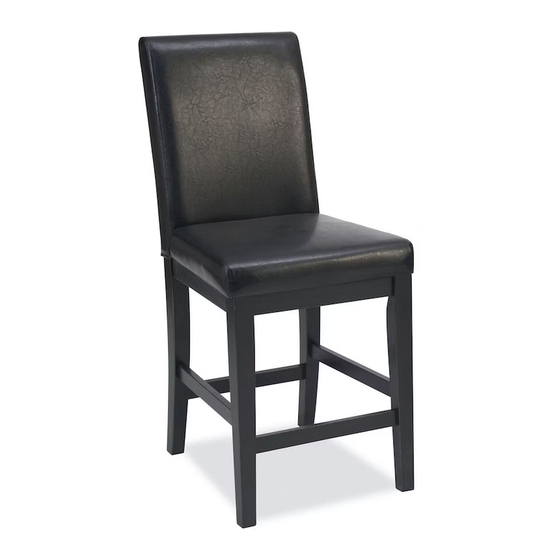

Bar stool

Advertisement

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

Part List

A.
Seat
1 pc.
E.
Side Stretcher
1 pc.
F.
Side Stretcher
1 pc.

Hardware List

Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
5033-89
Bar Stool
B.
Leg
1 pc.
G.
Front Stretcher
1 pc.
M8x76
Head Cap Bolt (long)
4 pcs. (+1 extra)
M8x57
Head Cap Bolt
4 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
Leg
1 pc.
D.
Back Frame
1 pc.
M8x35
Head Cap Bolt (short)
1 pc. (+1 extra)
Spring Washer
9 pcs. (+1 extra)
888-680-7460
M3.5x40
Wood Screw
6 pcs. (+1 extra)
Flat Washer
9 pcs. (+1 extra)
