IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

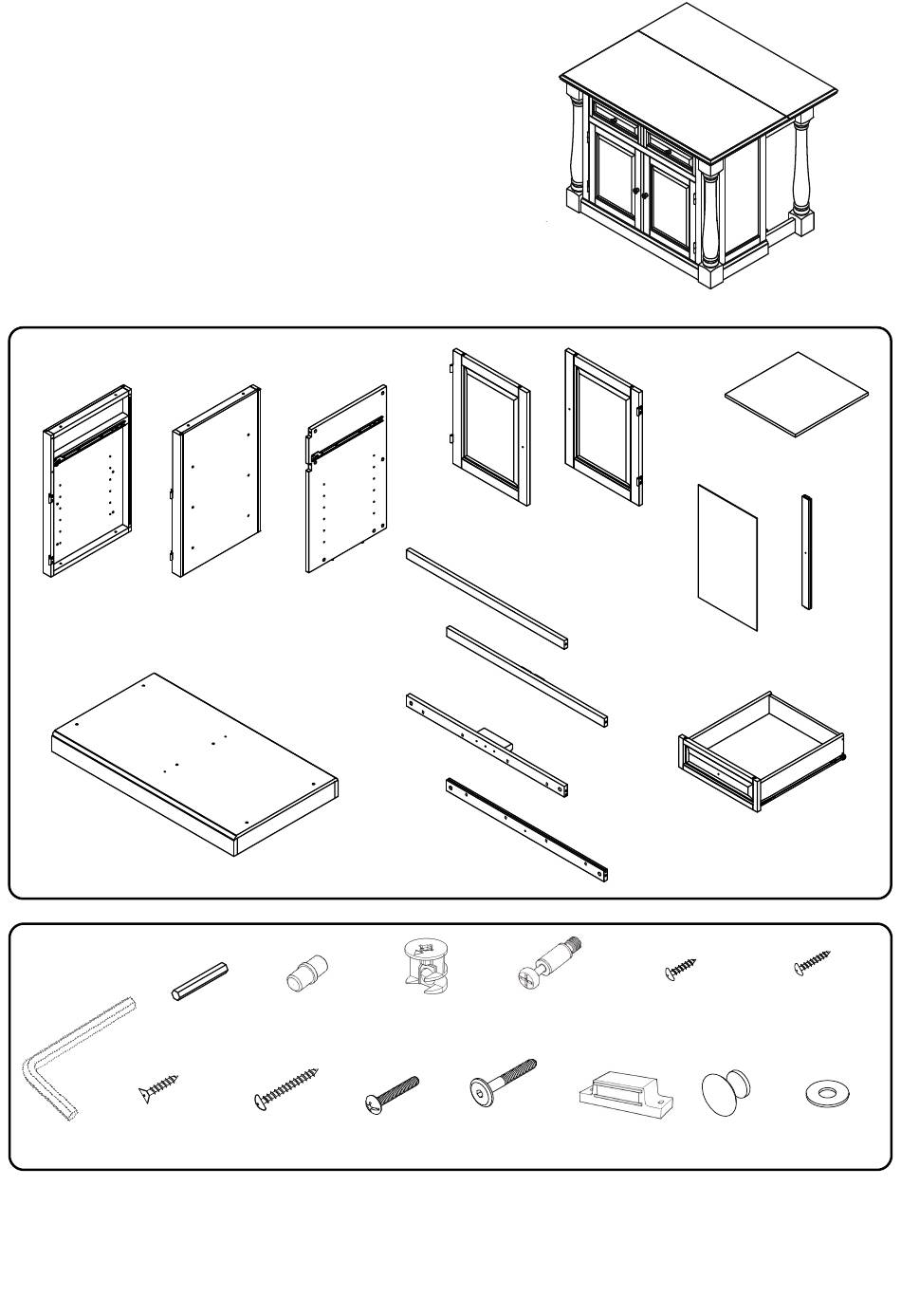

Part List
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
J.
Bottom
1 pc.
Hardware List
Small
Hex Wrench
1 pc.
Hex Wrench
1 pc.
3/4"
Flat Head Screw
12 pcs. (+1 extra)
Tool(s) required for assembly: Phillips screwdriver, Level
Kitchen Island
E.
Front Rail
D.
1 pc.
Middle Panel
1 pc.
G.
Back Rail
1 pc.
Cam Lock
Adjustable Pin
15 pcs. (+2 extra)
16 pcs. (+1 extra)
1"
Round Head Screw
Machine Screw
16 pcs. (+1 extra)
4 pcs.
M.
N.
Door
Door
1 pc.
1 pc.
Front Rail
H.
Back Rail
1 pc.
Cam Lock Screw
15 pcs. (+1 extra)
M6x35
Head Cap Bolt
Magnet
20 pcs. (+2 extra)
2 pcs.
Patent 8,584,600 B2
I.
Shelf
4 pcs.
K.
L.
Back Panel
Back Piece
2 pcs.
1 pc.
F.
1 pc.
O.
KD Drawer
2 pcs.
Refer to the last page(s) of these
instructions for drawer assembly.
1/2"
3/4"
Round Head Screw
Round Head Screw
4 pcs. (+1 extra)
8 pcs. (+1 extra)
Knob
4 pcs.
Flat Washer
8 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles 5020-941
Summary of Contents for Homestyles 5020-941
- Page 1 Kitchen Island IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Patent 8,584,600 B2 Part List Shelf...
- Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Ÿ...
- Page 3 Assembly Instructions 3/8 STEP 3 Slide Back Panel (K) into the groove of Back Rail (G), (H) and Back Piece (L). Attach Middle Panel (D) to Front Rails (E), (F), Back Rails (G), (H) and Back Piece (L) with Cam Locks. (See Figure 3) Cam Lock Figure 3...
- Page 4 Assembly Instructions 4/8 STEP 5 Cam Lock Attach Bottom (J) to unit with Cam Locks, Flat Washers and Head Cam Bolts. (See Figure 4) Figure 4 Head Cap Bolt Flat Washer STEP 6 Turn unit to its’ upright position. Attach Frame Legs (P) and (Q) to unit with Head Cap Bolts.
- Page 5 Assembly Instructions 5/8 STEP 7 3/4” Round Head Screw Attach Doors (M) and (N) to unit by sliding the door lift hinges into side panel lift hinges. (See Figure 5) Attach Knobs to Doors (M) and (N) with Machine Screws. (See Figure 6) Level unit by adjusting the adjustable levelers on the bottom of unit.
- Page 6 Assembly Instructions 6/8 STEP 9 3/4” Flat Head Screw Attach Top (A1) to Top (A2) with 3/4” Flat Head Screws. STEP 10 Head Cap Bolt Flat Washer Pull out the Drawers form unit. Attach Top (A) to unit with Flat Washers and Head Cap Bolts. (See Figure 8) Slide Drawers into place.
- Page 7 Assembly Instructions 7/8 STEP 11 90° When Leaf Top is down, it should be oriented vertically. If it not vertical and adjustment is desired, turn the adjuster on the adjuster block on Back Rail (G). (See Figure 9) Adjuster Block Figure 9 Top extension instructions STEP 1...
- Page 8 Assembly Instructions 8/8 Drawer (O) STEP 1 Attach Drawer Front (O1) and Drawer Back (O2) to Drawer Side (O3) with Wood Screws (long). Attach Drawer Side (O4) to unit with Roller at back Wood Screws (long). STEP 2 Slide Drawer Bottom (O5) into the grooves of Drawer Fronts (O1) and Drawer Back (O2) until it meets Drawer Side (O3).
- Page 9 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
