Homestyles 5033-941 Manual

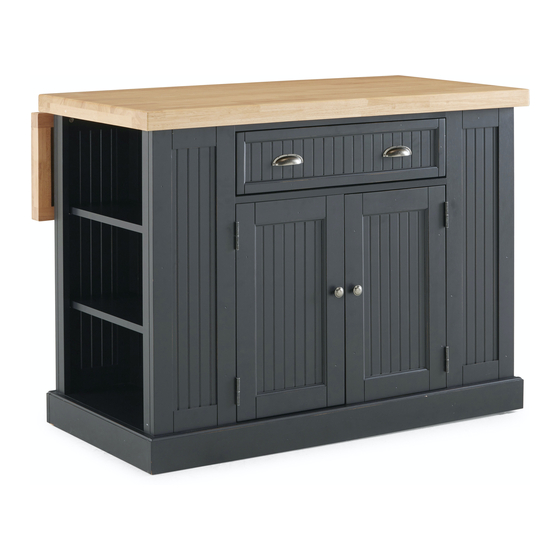

Kitchen island
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A1.
Top
1 pc.
Granite is a natural stone material with naturally occurring fissures and cavities.
A sealer has been applied to the granite to reduce the absorption of liquids.
Even with sealer applied, liquids can absorb into the granite causing permanent
stains. Never allow liquids to remain on the top. A stone sealer can be reapplied
periodically to the granite to reduce the absorption of liquids.
For assembly see instructions in carton 50
Tools required for unpacking: Phillips screwdriver, hammer
home
50
33-
941
Kitchen Island
Care Instructions
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
33-
942.
888-680-7460
A2.
Top
1 pc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5033-941 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Homestyles 5033-941

Summary of Contents for Homestyles 5033-941

  • Page 1 Kitchen Island IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List 1 pc.

  • Page 2: Unpacking Instructions

    Unpacking Instructions Top Carton STEP 1 Remove top carton. Wood Crate STEP 2 Remove wood screws. Remove upper wood supports by prying with Wood Screw a hammer. (See Figure 1) Wood Support Note: Do not hit top with hammer. Foam Figure 1 STEP 3 Remove foam, Top (A1) and Top (A2).
  • Page 3 Kitchen Island IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List Front Rail 1 pc.
  • Page 4 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 5 Assembly Instructions 3/7 Cam Lock Head Cap Bolt STEP 3 Attach Side Panel (E) to unit with Head Cap Bolts. Attach Back Rail (I) to unit with Cam Lock. (See Figure 3) Attach Back Upright (J) to unit. Slide Back Panels (K) into position. Attach Back Rail (I) to unit with Cam Lock.
  • Page 6 Assembly Instructions 4/7 Cam Lock STEP 5 Attach Side Panel (D) to unit with Head Cap Bolts. Attach Front Rails (H1) and (H2) to unit with Cam Locks. Attach Side Panel (F) to unit with Head Cap Bolts and Cam Locks. Head Cap Bolt STEP 6 Turn unit to its upright position.
  • Page 7 Assembly Instructions / 5 7 Adjustable Pin Knob Machine Screw STEP 7 Insert Adjustable Pins into side panels at desired level. Place Shelves (L) and (M) into position. Attach Doors (T) and (U) to unit by sliding door hinges into side panel hinges. (See Figure ) 5 Attach Knobs to Doors (T) and (U) with Machine Screws.
  • Page 8 Assembly Instructions / 6 7 Drawer (V) Wood Screw (long) Bottom STEP 8 Attach Drawer Front (V1) and Drawer Back (V2) to Drawer Side (V3) with Wood Screws (long). Attach Drawer Side (V4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 9 Slide Drawer Bottom (V5) into groove.
  • Page 9 Assembly Instructions / 7 7 STEP 11 Cam Lock Screw Place Tops (A1) and (A2) upside down on a soft cloth. Wood Screws for Hinge Attach Top (A2) to Top (A1) with Wood Screws for Hinge. (See Figure ) 7 Insert Cam Lock Screws into pre-drilled holes in Top (A1) , then tighten.
  • Page 10 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
