IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

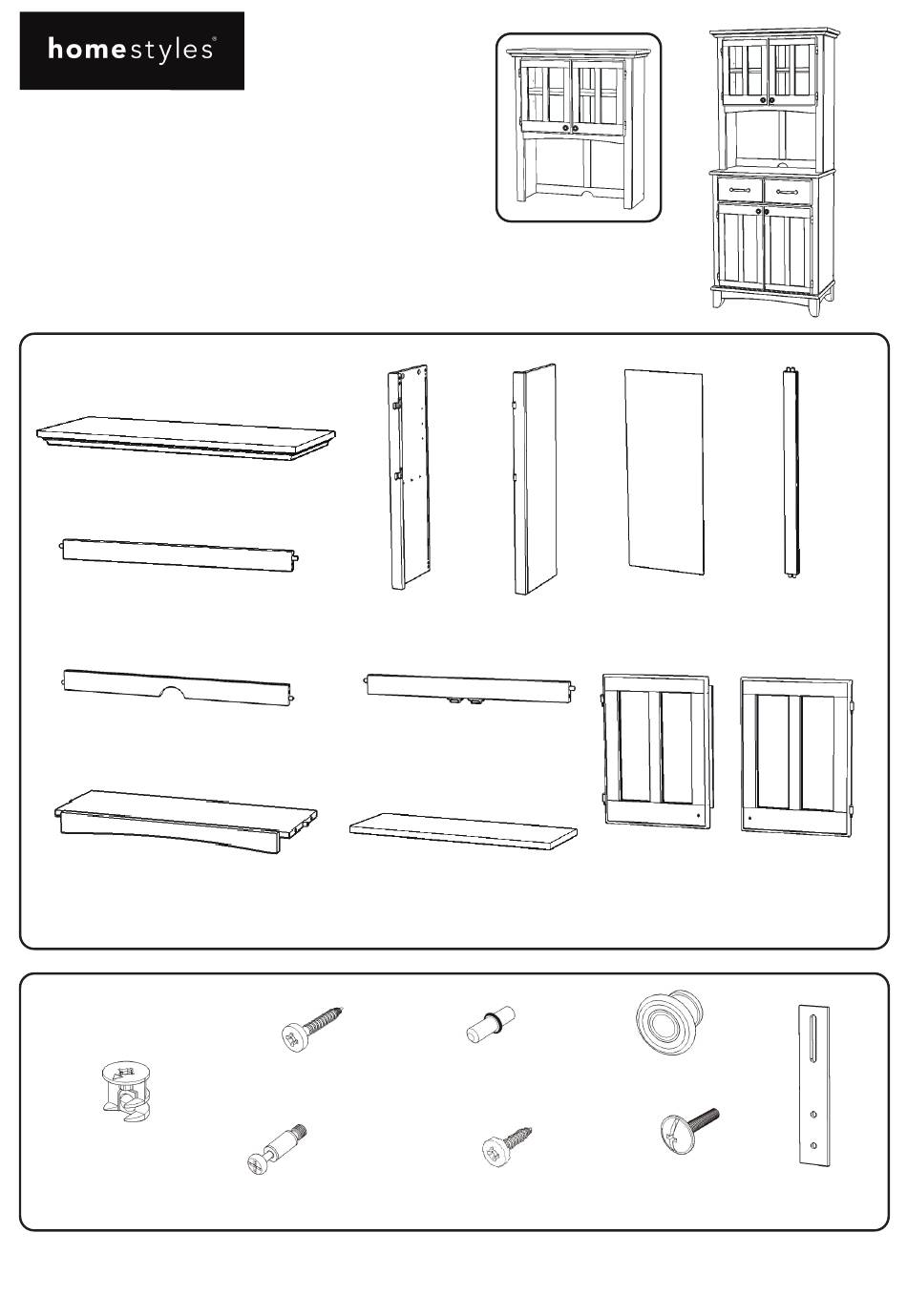

Part List
A.
Top
1 pc.
F.
Back Rail
1 pc.
G.
Back Rail
1 pc.
I.
Fixed Shelf
1 pc.
Hardware List
Cam Lock
14 pcs. (+2 extra)
Tool(s) required for assembly: Phillips screwdriver, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05001 0304
Hutch
B.
Side Panel
1 pc.
H.
Front Rail
1 pc.
J.
Shelf
1 pc.
M3.5x16
Wood Screw for Back Panel
8 pcs. (+1 extra)
Cam Lock Screw
14 pcs. (+1 extra)
Hutch
C.
D.
Side Panel
Back Panel
1 pc.
2 pcs.
Adjustable Pin
4 pcs. (+1 extra)
M4x13
Wood Screw for Bracket
8 pcs. (+1 extra)
888-680-7460, 877-831-0319
E.
Back Upright
1 pc.
K.
L.
Door
Door
1 pc.
1 pc.
Knob
2 pcs.
M4x25
Machine Screw
2 pcs.
Bracket
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05001 0304
Summary of Contents for Homestyles 20 05001 0304
- Page 1 Machine Screw Wood Screw for Bracket Bracket 14 pcs. (+1 extra) 8 pcs. (+1 extra) 2 pcs. 2 pcs. Tool(s) required for assembly: Phillips screwdriver, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. STEP 1 Cam Lock Screw Insert Cam Lock Screws into pre-drilled holes in Top (A) and Side Panels (B), (C),...
- Page 3 Assembly Instructions 3/6 STEP 3 Attach Fixed Shelf (I) to unit with Cam Locks. Cam Lock Cam Lock STEP 4 Attach Front Rail (H) to unit with Cam Lock. Cam Lock STEP 5 Cam Lock Attach Side Panel (C) to unit with Cam Locks.
- Page 4 Assembly Instructions 4/6 Adjustable Pin STEP 6 Insert Adjustable Pins into side panels at desired level. Place Shelf (J) into position. Attach Doors (K) and (L) to unit by sliding door hinges into side panel hinges. (See Figure 3) Attach Knobs to Doors (K) and (L) with Machine Screws.
- Page 5 Assembly Instructions 5/6 STEP 8 Insert Wood Screws for Back Panel into pre-drilled holes in unit. Wood Screw for Back Panel Wood Screw for Bracket Figure 5 Bracket STEP 9 Attach Hutch to Buffet with Brackets by inserting Wood Screws for Bracket into pre-drilled holes. (See Figure 5)
-
Page 6: Hardware List
Assembly Instructions 6/6 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 10 Anchor in wall Wall Screw Pre-drilled hole Bracket at top of unit Place unit at desired location. on wall 3/8”... - Page 7 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
