IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
I.
Post
1 pc.
M.
Side Panel
2 pcs.
Cartons 20 05003 0941, 0942 are also needed for assembly.
Tool(s) required for assembly:
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05003 0943

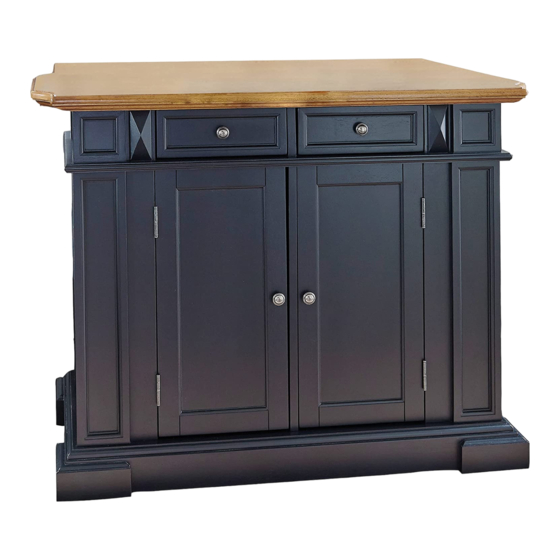

Kitchen Island
J.
Post
1 pc.
O.
Shelf
4 pcs.
Phillips screwdriver,
Level
K.
Post
1 pc.
P.
Door
1 pc.
888-680-7460, 877-831-0319
L.
Post
1 pc.
Q.
Door
1 pc.
Advertisement
Related Manuals for Homestyles 20 05003 0943
Summary of Contents for Homestyles 20 05003 0943
- Page 1 1 pc. Shelf Door Door Side Panel 4 pcs. 1 pc. 1 pc. 2 pcs. Cartons 20 05003 0941, 0942 are also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/6 STEP 3 Head Cap Bolt Attach unit and Middle Panel (E) to Base (H) with Head Cap Bolts. (See Figure 3) Figure 3 Head Cap Bolt STEP 4 Attach Posts (I) and (J) to unit with Head Cap Bolts. Slide Side Panels (M) into position.
- Page 4 Assembly Instructions 4/6 STEP 5 Head Cap Bolt Attach Rails (F) to unit with Head Cap Bolts. Attach Adjustable Pins into posts and middle panel at desired level. (See Figure 4) Slide Shelves (G) and (O) into position. Adjustable Pin Figure 4 STEP 6 Attach Doors (P) and (Q) by sliding...
- Page 5 Assembly Instructions 5/6 Wood Screw STEP 7 Remove drawers from Top Unit (A). Place Top Unit (A) and Leaf Top (B) upside down on a soft cloth. Attach Top Unit (A) to Leaf Top (B) with Wood Screws into pre-drilled holes. (See Figure 7) Figure 7 STEP 8...
- Page 6 Assembly Instructions 6/6 STEP 9 Machine Screw Attach Knobs to drawers with Machine Screws. Knob STEP 10 Slide drawers into position.
- Page 7 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
