Removing the Main Tray Assembly
To remove the Main Tray assembly follow these steps:
1.
Remove the two screws in the center of the tray assembly.
2.
Pull the ejector handles on the left side, top and bottom of the tray assembly to
release the board assembly from the internal connectors. Refer to Figure 2.

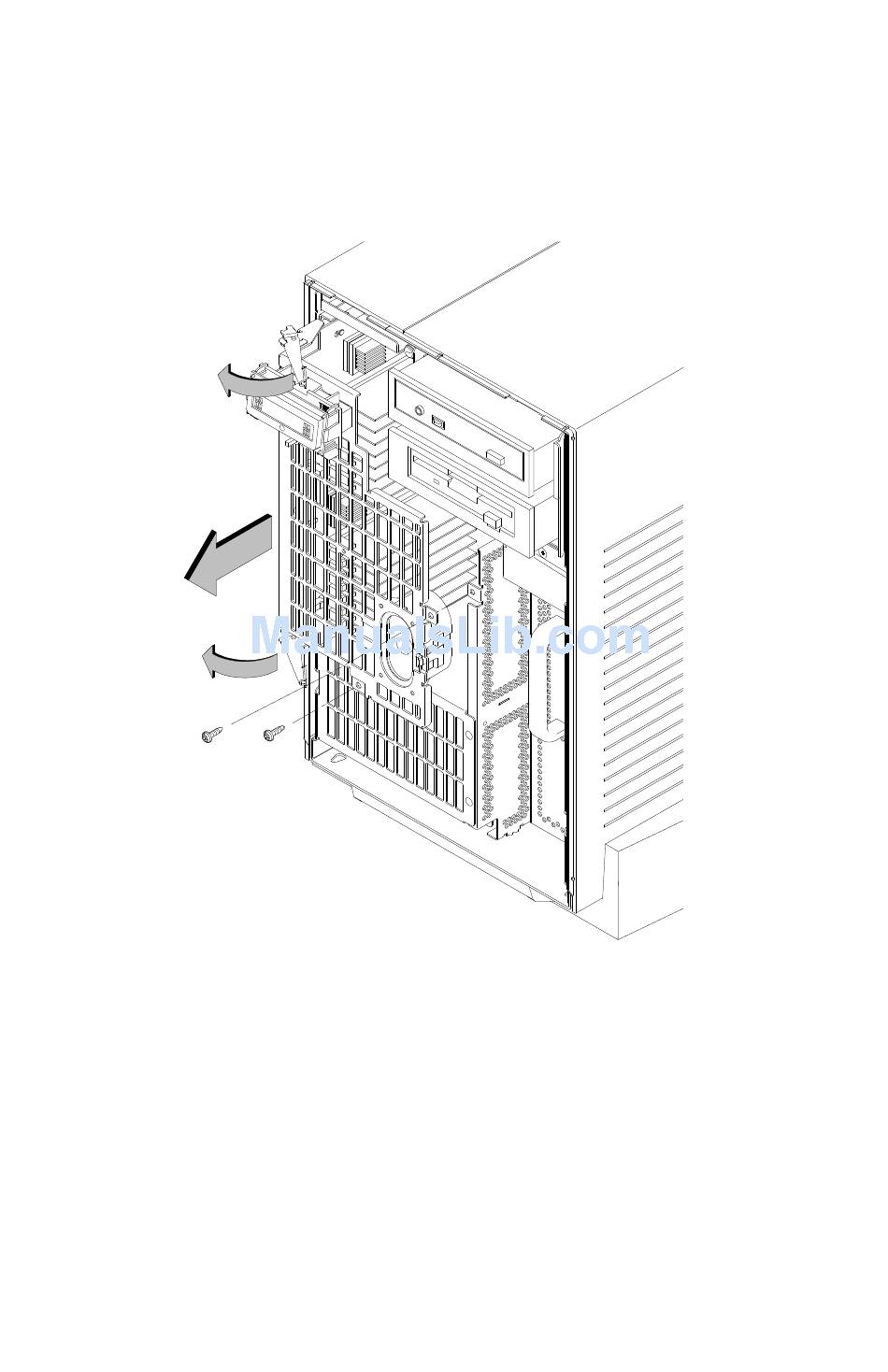

Figure 2. Removing the Tray Assembly
7
