Removing the Main Tray Assembly

Once you have prepared the workstation, you need to remove the main tray
from the system unit, as described in the following procedure:
CAUTION: Do NOT attempt to remove the main tray assembly when the workstation is in a
vertical orientation.
1 Completely loosen the five thumb screws on the rear of the system unit, as shown
Thumb Screws
Figure 2
2 Place one hand on the top of the system unit and apply pressure to prevent the
3 Slide the main tray assembly out of the chassis.
in Figure 2.

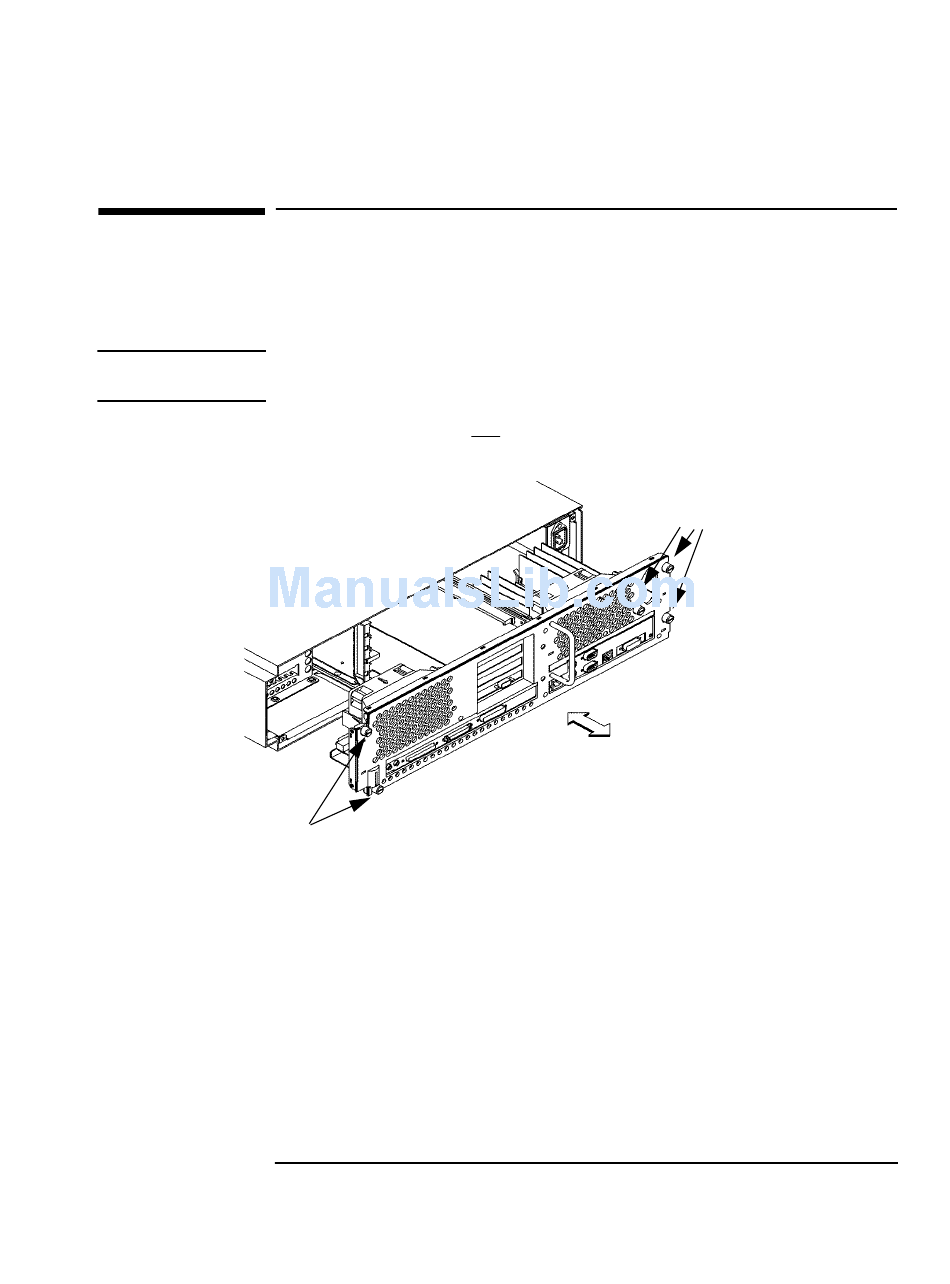

Removing Main Tray Assembly
system unit from moving, while pulling the handle on the rear panel with your
other hand. See Figure 2.
Removing the Main Tray Assembly
Thumb
Screws
