Installing the DC to DC Converter

Prior to the installation of the DC to DC converter, the SCSI Bulkhead must be

loosened and the I/O Assembly removed as detailed in the following steps:

Remove the four screws from the SCSI Bulkhead. Do not detach the cables,

the bulkhead can be allowed to hang down See figure 11.

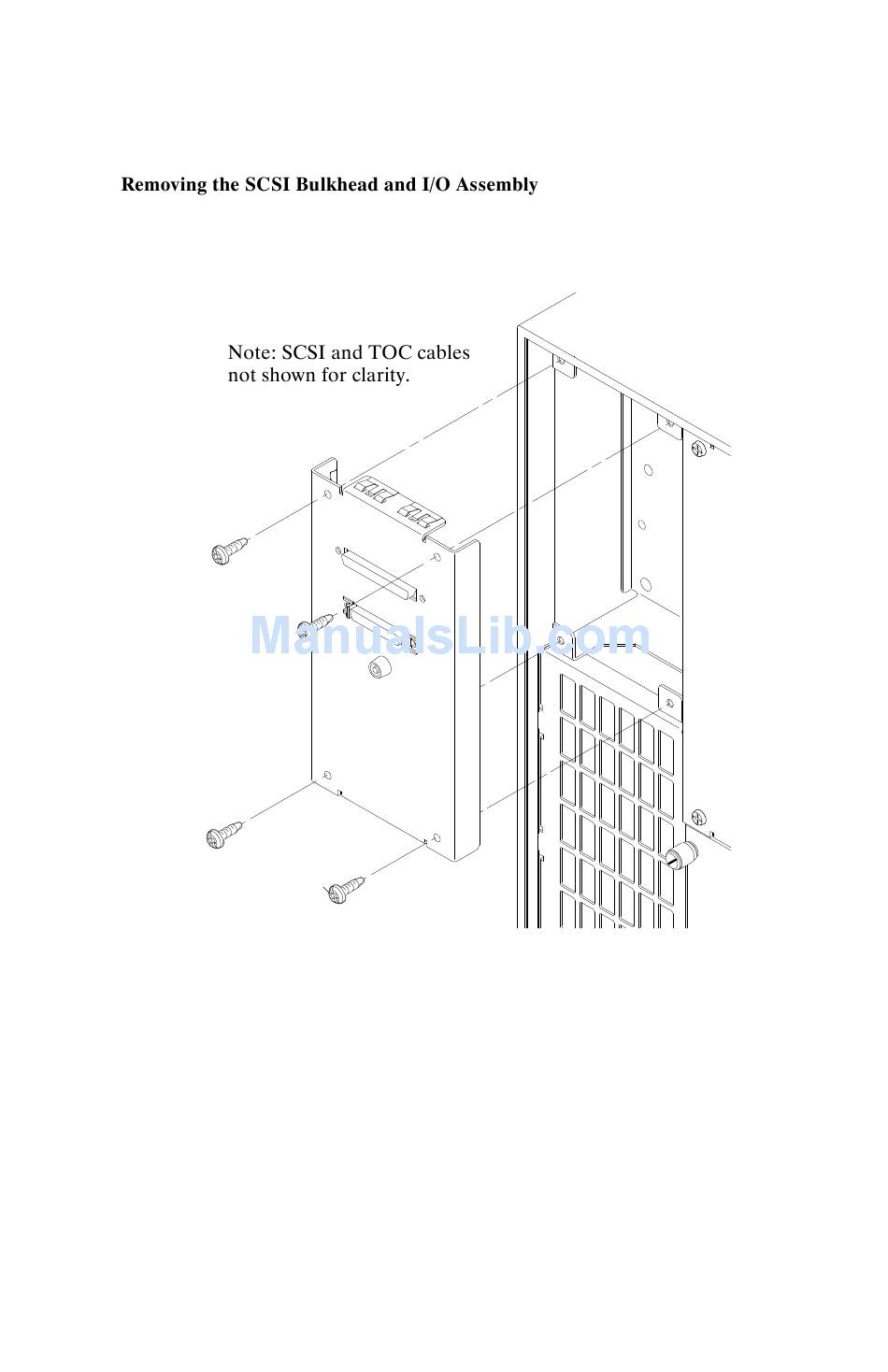

Figure 11.SCSI Bulkhead removal
