Replacing the Front Bezel
When replacing the front bezel, follow these steps, ensuring that the top latches snap
completely into position:
1.
Line up the two guide pins on the bottom with their guides and swing the panel
up.
2.
Push the front bezel against the two locking tabs at the front of the system
unit and ensure they lock in place.
CAUTION: Do not attempt to operate the workstation with the
front bezel removed. The bezel is needed to ensure
proper air flow for system cooling.

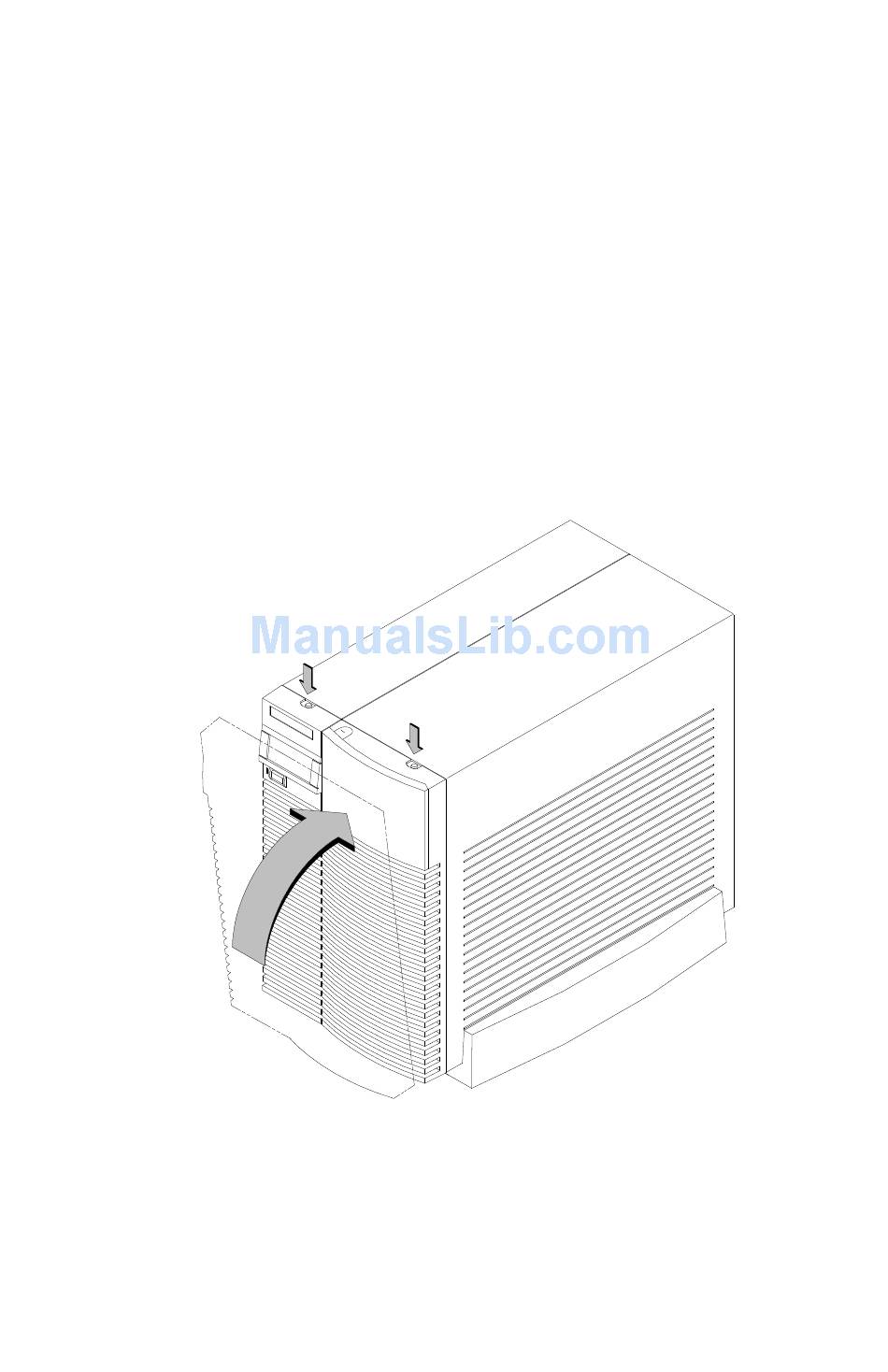

Figure 10. Replacing the Front Bezel
17
