RavenC160-180.FB 5 Wed Jul 10 14:00:20 1996

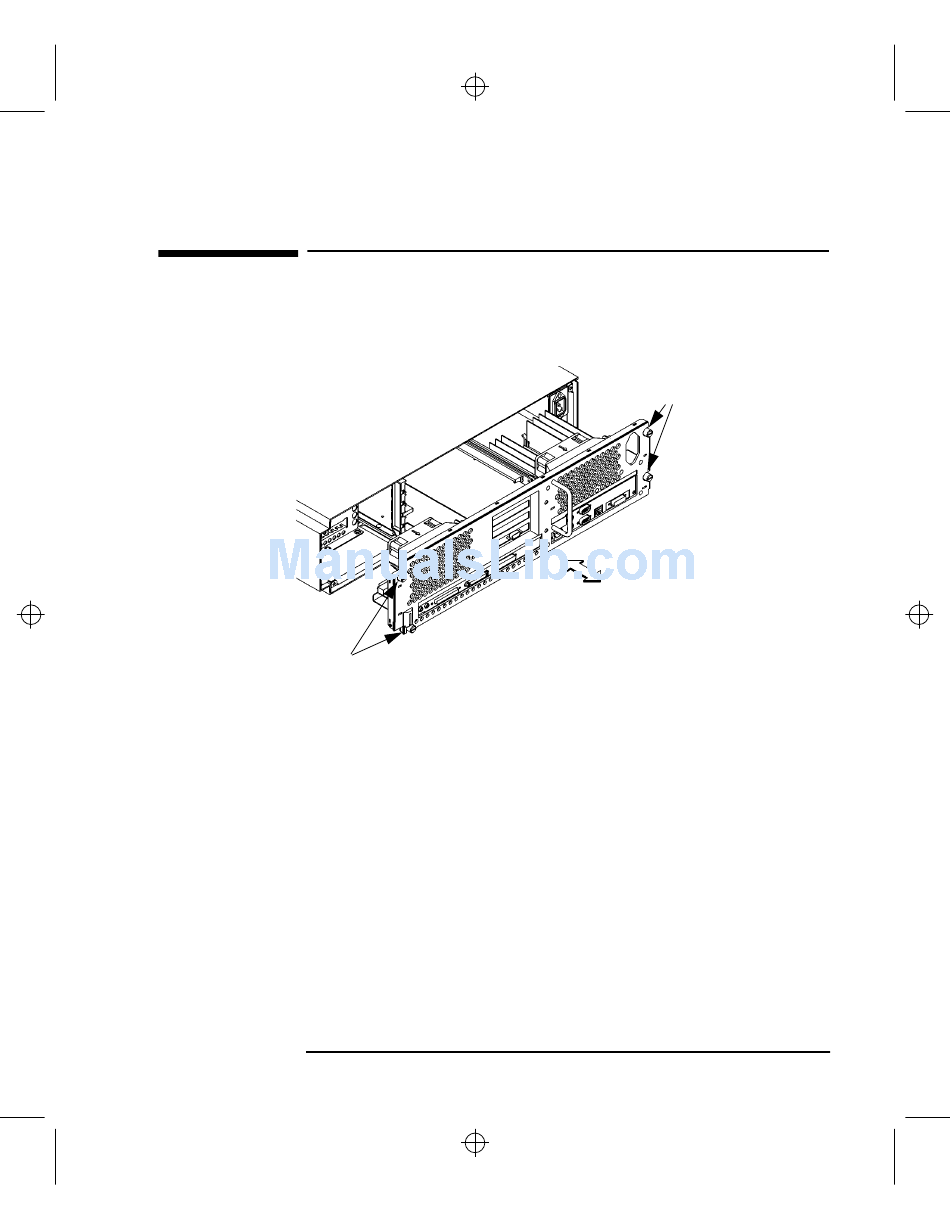

Figure 2
Removing the Main Tray Assembly
1 Completely loosen the four thumb screws on the rear of the system unit, as shown
in Figure 2.
Thumb Screws
Removing Main Tray Assembly
2 Place one hand on the top of the system unit and push, while pulling the handle
on the rear panel with your other hand. See Figure 2.
3 Slide the main tray assembly out of the chassis.
Removing the Main Tray Assembly
Thumb
Screws
5
