Removing the Main Tray Assembly

Removing the Main Tray Assembly
Once you have prepared the workstation, you need to remove the main tray
from the system unit, as described in the following procedure:
1 Completely loosen the four thumb screws on the rear of the system unit, as shown
Thumb Screws

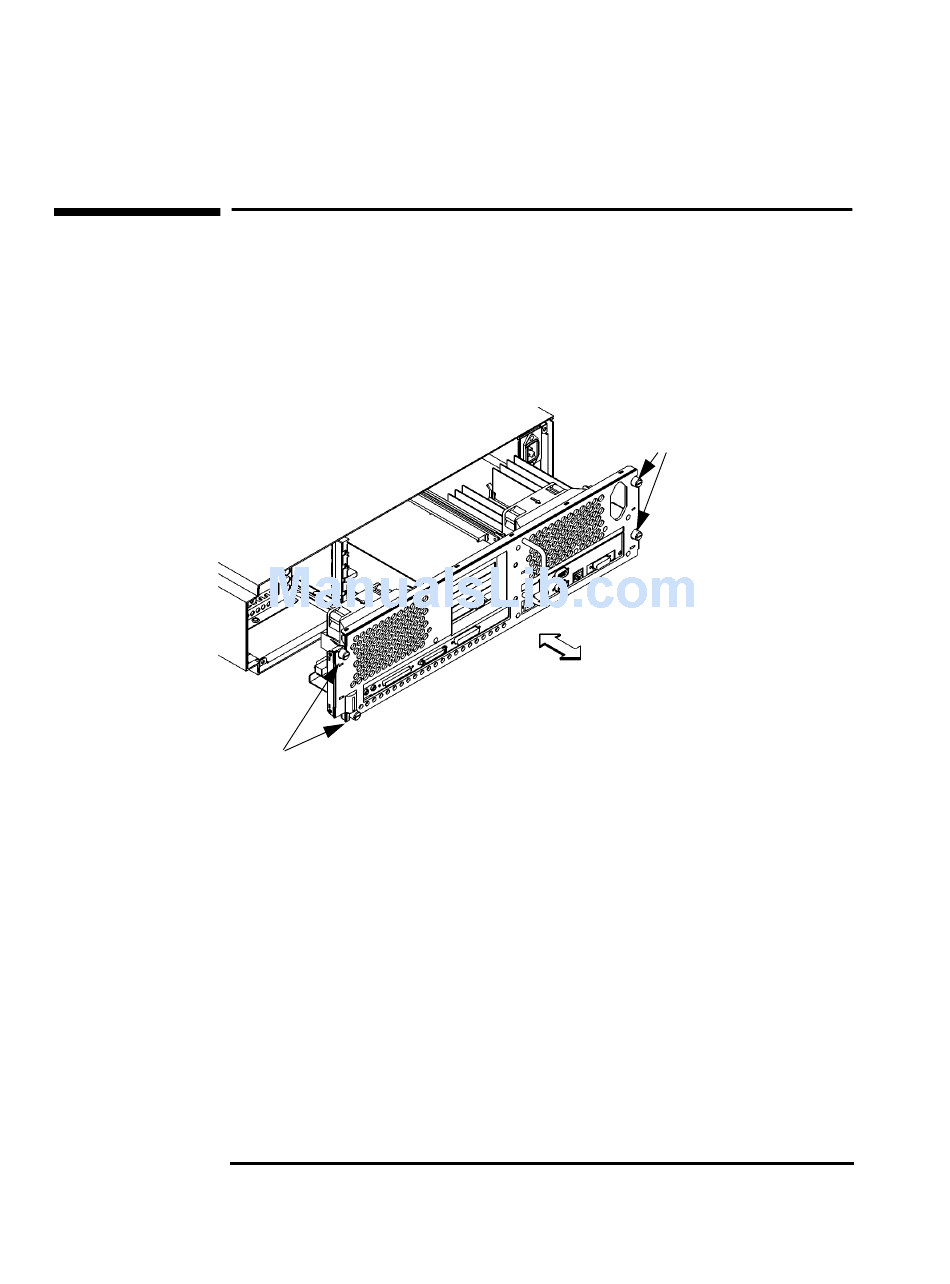

Figure 2
2 Place one hand on the top of the system unit and push, while pulling the handle
3 Slide the main tray assembly out of the chassis.
8
in Figure 2.
Removing Main Tray Assembly
on the rear panel with your other hand. See Figure 2.
Thumb
Screws
