Changing the Model Label

Before replacing the front bezel, you need to remove the old model label. Follow
these steps to remove the old model label and replace it with the new model label.
1.
Using a flat blade screwdriver on the inside of the front bezel, break off the
plastic tab behind the sheet metal as shown in Figure 8.
CAUTION: Be sure to wear safety glasses when breaking off
2.
Turn the front bezel over so that you are looking at the outside.
3.
Using the flat blade screwdriver, gently pry up the model label at each of the
three sets of plastic grooves holding the label to the bezel. Refer to Figure 9.
the plastic tab. Failure to do so can result in injury
to your eyes.

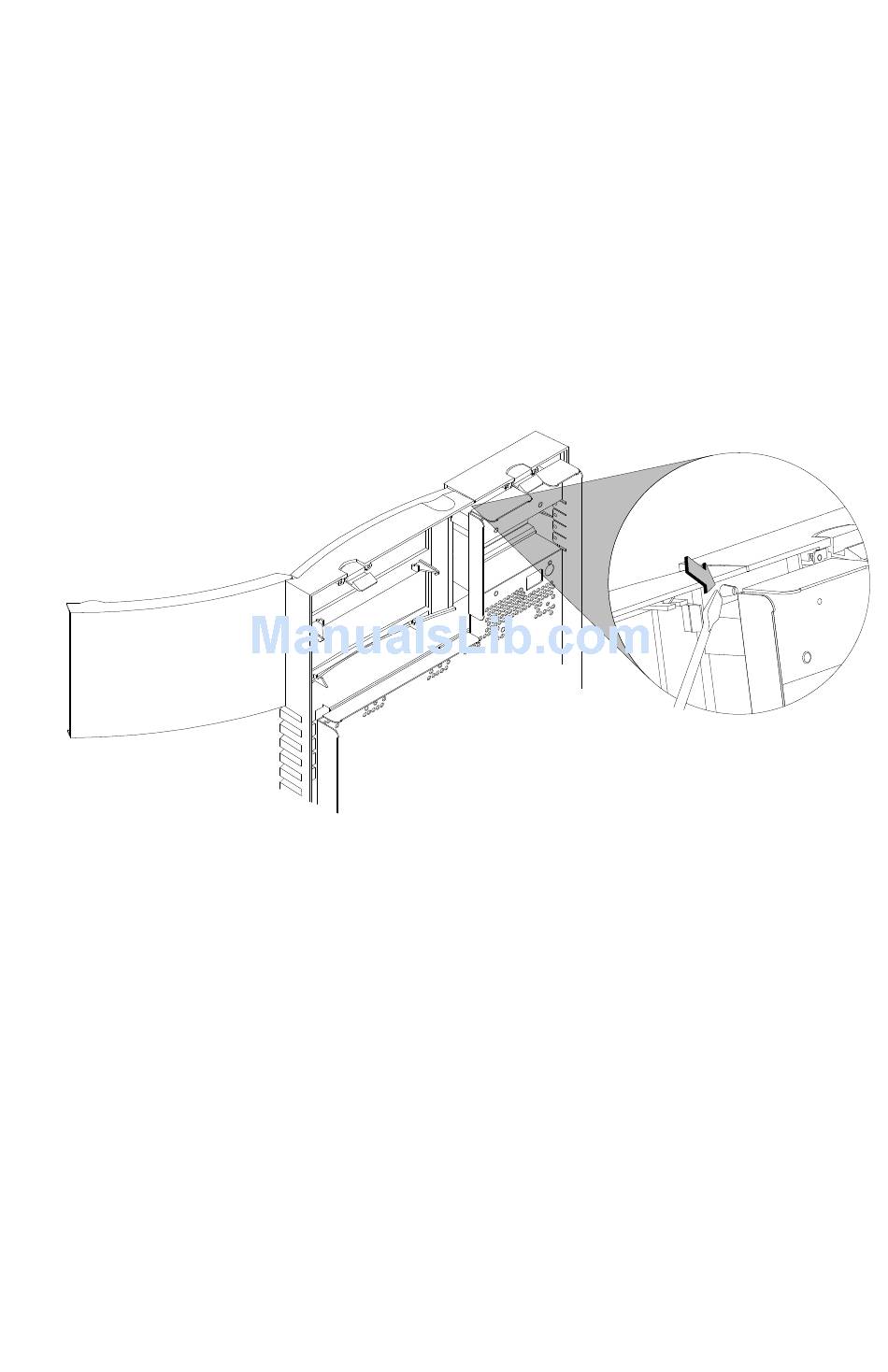

Figure 8. Breaking Off the Plastic Tab
15
