Installing Memory DIMMs

Install the memory DIMMS in the new J280 main tray as described in the following
procedure:
1.
To install a memory DIMM, open the ejector tab and line the DIMM up with
the guides as shown in Figure 5, making sure to put the notched end toward the
ejector handle .READ NOTICE below and follow slot guide shown in figure
6.
2.
Close the ejector tabs.
3.
Press firmly and evenly on the DIMM to ensure that it is fully seated.

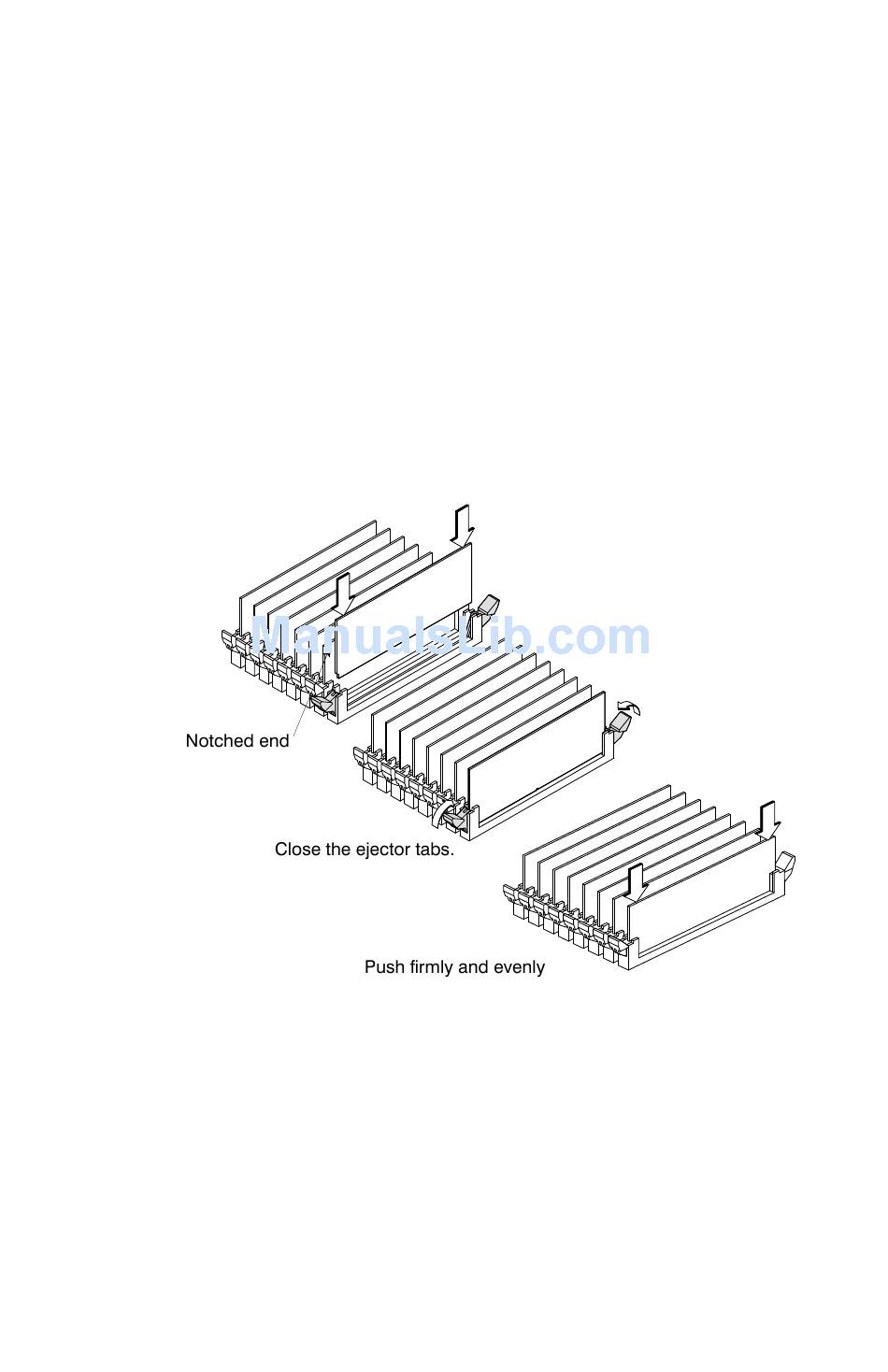

Figure 5. Installing Memory DIMMs
11
