Installing the New J280 Main Tray Assembly
Install the new tray assembly as described in the following procedure:
1.
Pull Main Tray Ejector Handles to open position.
2.
Align the top of the main tray assembly with the guides on the system unit.
Then, align the bottom with the guides and slide the main tray assembly into
the system unit. Refer to Figure 7. Refer also to the installation label on the
back of the assembly.

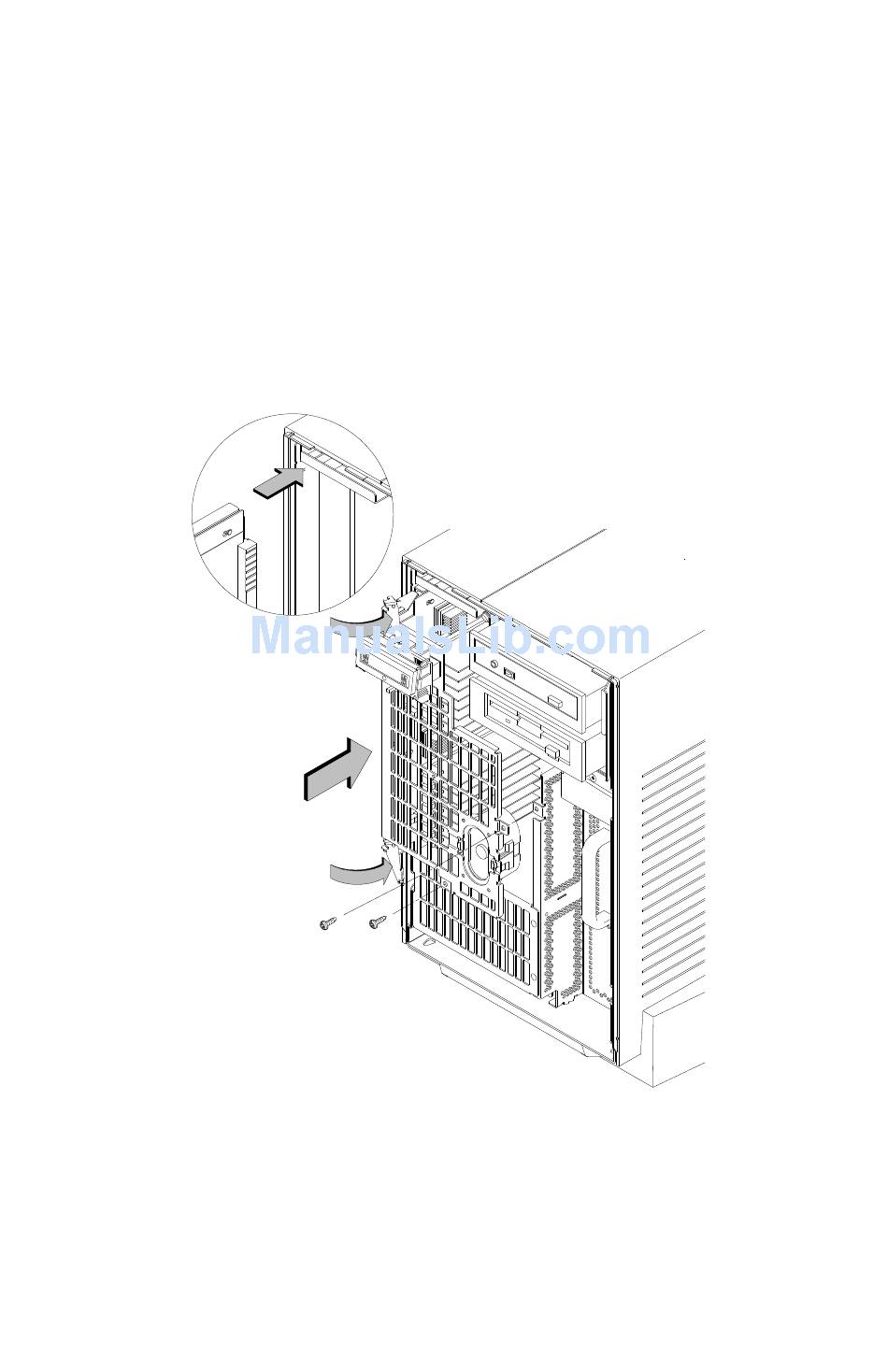

Figure 7. Replacing the Main Tray Assembly
3.
Replace the two main tray retaining screws, as shown in Figure 7.
