FireProtect / FireProtect Plus User Manual
Updated June 24, 2020

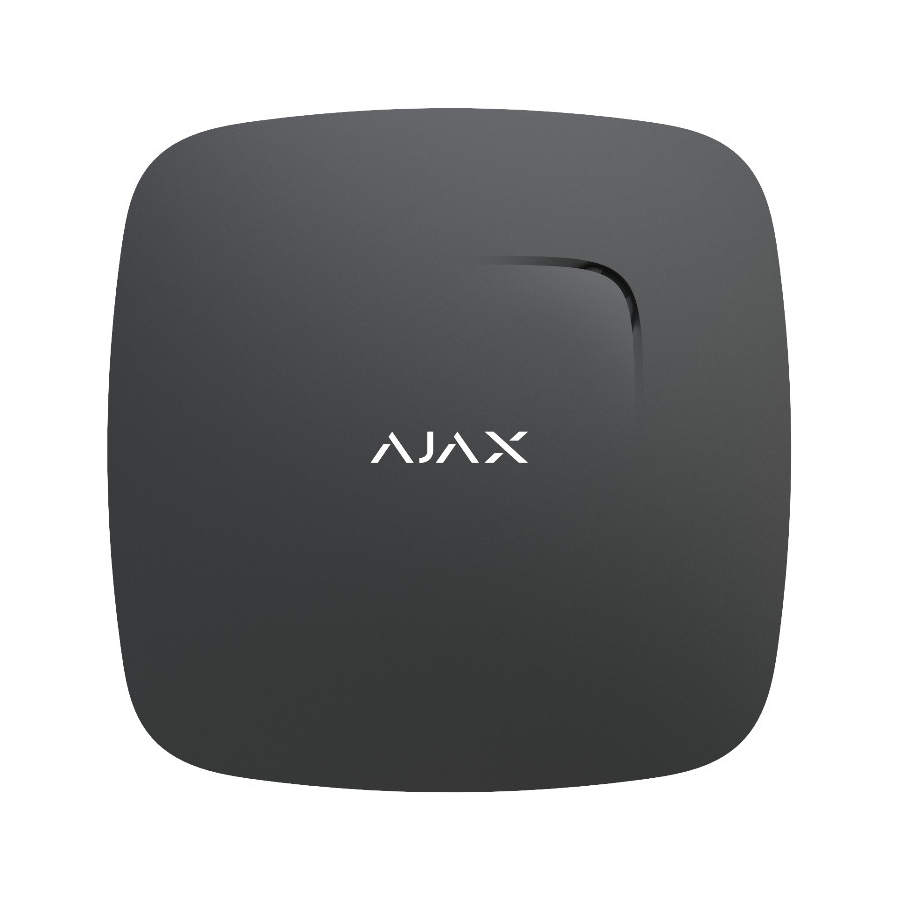

FireProtect
(FireProtect
Plus) is a wireless indoor re detector with an in-built
buzzer and a battery, ensuring up to 4 years of autonomous operation.
FireProtect can detect smoke and rapid temperature increase.
Aside from these functions, FireProtect Plus additionally can alert of dangerous
CO level. Both detectors can function independently from the hub.
Connecting to the Ajax security system via a secured
Jeweller
radio protocol,
FireProtect
(FireProtect
Plus) communicates with the
hub
at a distance of up to
1,300 m in line of sight.
The detector can be a part of third-party security systems, connecting to them
via the
Ajax uartBridge
or
Ajax ocBridge Plus
integration module.
Buy re detector with carbon monoxide sensor FireProtect Plus
The detector is set up via the
Ajax apps
for iOS, Android, macOS, and Windows.
The system noti es the user of all events through push noti cations, SMS, and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireProtect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX FireProtect

Summary of Contents for AJAX FireProtect

  • Page 1 4 years of autonomous operation. FireProtect can detect smoke and rapid temperature increase. Aside from these functions, FireProtect Plus additionally can alert of dangerous CO level. Both detectors can function independently from the hub.

  • Page 2: Functional Elements

    (if activated). The Ajax security system can be connected to a central monitoring station of a security company. Buy re detector FireProtect Functional Elements 1. Siren hole 2. Light indicator (acts as the sensor and Test button) 3. Smoke chamber hole with the temperature detector behind the net 4.
  • Page 3 The siren can be turned off by pressing the touch button (the center of the light indicator) or in the Ajax app. If smoke and temperature levels do not restore to normal values, in 10 minutes, the detector turns on the siren again.
  • Page 4 Only users with administrator rights can add the device to the hub Pairing the detector with hub: 1. Select Add Device in the Ajax app. 2. Name the device, scan or type the QR Code (located on the detector body and packaging), and select the location room.
  • Page 5 The smoke detector always operates in the active mode. When connecting FireProtect to third party security systems, it is appropriate to place it in a permanently active protection zone.
  • Page 6 States 1. Devices 2. FireProtect | FireProtect Plus Parameter State Temperature of the device. Measures on the Temperature device processor and changes gradually Signal strength between the hub and the Jeweller Signal Strength detector...
  • Page 7 Backup battery level of the device Smoke sensor The state of the smoke detector Smoke sensor dust level The dust level in the smoke chamber Firmware Detector rmware version Device ID Device identi er Setting 1. Devices 2. FireProtect | FireProtect Plus 3. Settings...
  • Page 8 When turned on, HomeSiren and StreetSiren are Alert with a siren if CO detected (FireProtect activated in case if CO concentration is Plus only) dangerous Switches the device to the signal strength test Jeweller Signal Strength Test mode FireProtect Self Test Starts FireProtect selftest...
  • Page 9 Ajax app 2. Select a hub 3. Go to its Settings by pressing 4. Select the Service item and enable the Interconnected FireProtect Alarms option Interconnected alarms are supported by FireProtect and FireProtect Plus detectors with rmware versions 3.42 and higher. Please note that when you turn on the Interconnected Alarms, you cannot set the hub-detector ping interval (Jeweller settings) of more than 48 seconds.

  • Page 10: Performance Testing

    6 seconds. You will receive the noti cation in the Ajax app regarding the test result and detector status. Installation...

  • Page 11: Selecting The Location

    If there are any beams at the ceiling, protruding by 30 or more centimeters from the ceiling level, install the detector between every two beams. Where and how to install FireProtect Plus Installation procedure Before installing the detector, make sure that you have selected the optimal...
  • Page 12 If LED doesn’t blink after xing in SmartBracket, check the status of the tamper in the Ajax app and then the xing tightness of the panel. If someone detaches the detector from the surface or takes it off the attachment panel, the security system noti es you.

  • Page 13: Maintenance And Battery Replacement

    5. inside premises with the temperature and humidity beyond the range of permissible limits; 6. closer than 1 m to the hub. Autonomous Use of the Detector The detector can be used autonomously, without connecting to a security system. 1. Switch on the detector by pressing the on/off button for 3 seconds (the logo will light up green for 1 second) and conduct the smoke test.

  • Page 14: Tech Specs

    and the detector signal with a sound every 90 seconds: if the main batteries are low — a single short signal; if the backup battery is low — two short signals; if both batteries are low — three short signals. Battery Replacement Tech Specs Smoke-sensitive element...

  • Page 15: Complete Set

    5. Installation kit 6. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service —...
