Installing the Main Tray Assembly

Install the C240 main tray assembly, as described in the following proce-

dure:

1 Align the main tray assembly with the chassis and slide it into place, as shown in

Figure 8

2 Slide the main tray in until you feel it make contact with the internal connectors.

3 Push firmly and evenly on the main tray assembly to make sure that all connec-

4 Start all five thumb screws loosely, then tighten them firmly. See Figure 8.

NOTICE:

To maintain regulatory agency compliance, verify that the main tray is

fully seated and all five thumb screws are completely tightened.

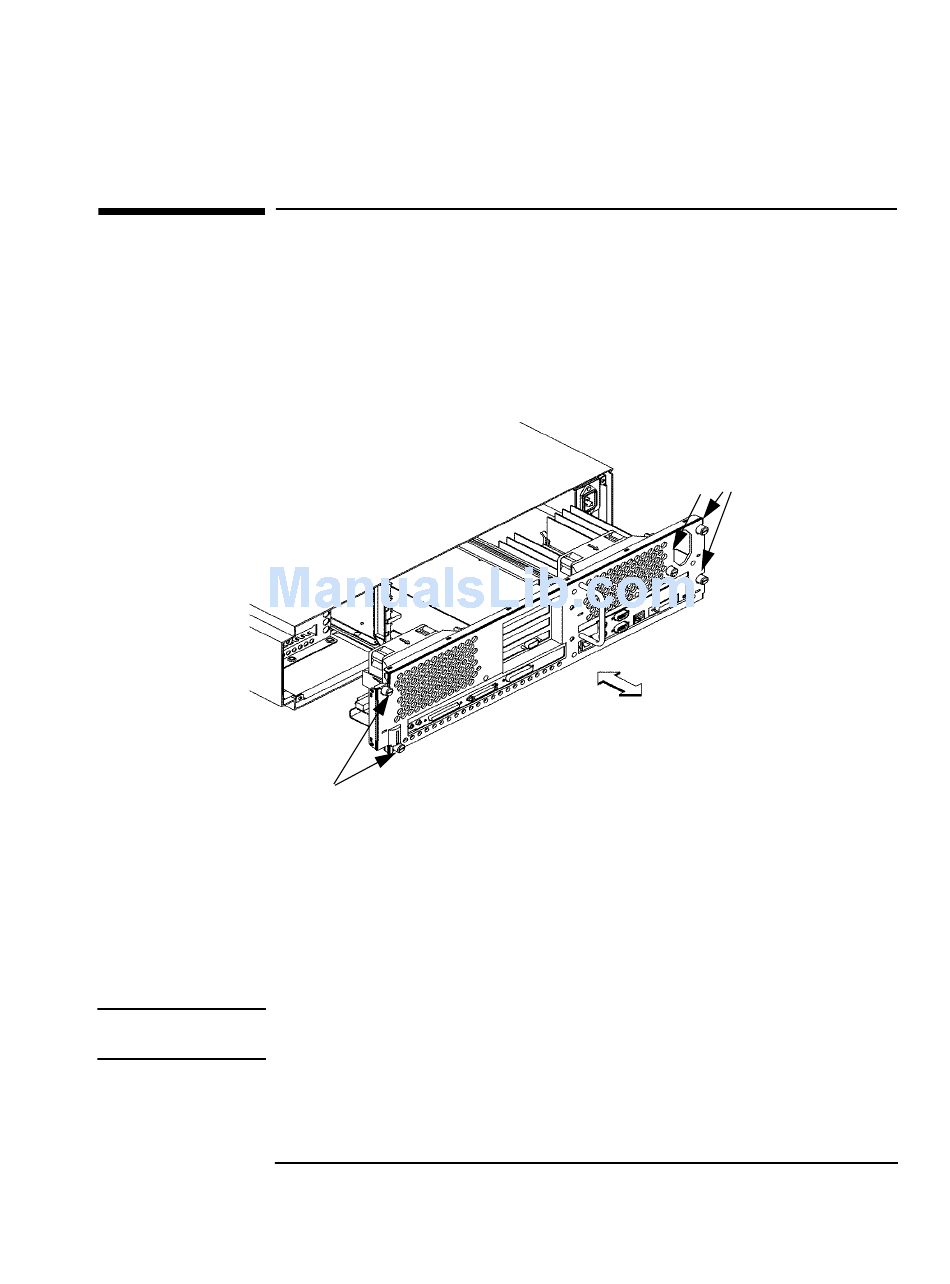

Figure 8.

Thumb Screws

Installing the New Main Tray Assembly

tors are fully seated.

Installing the Main Tray Assembly

Thumb

Screws
