Installing the C240 CPU Board

Perform the following steps to install the C240 CPU board into the system unit:

1 Be to support the board under the heat sink or you will damage the CPU board.

2 Push the two ejector handles at the same time, as shown in Figure 7.

3 Replace the two CPU board retaining screws, as shown in Figure 7.

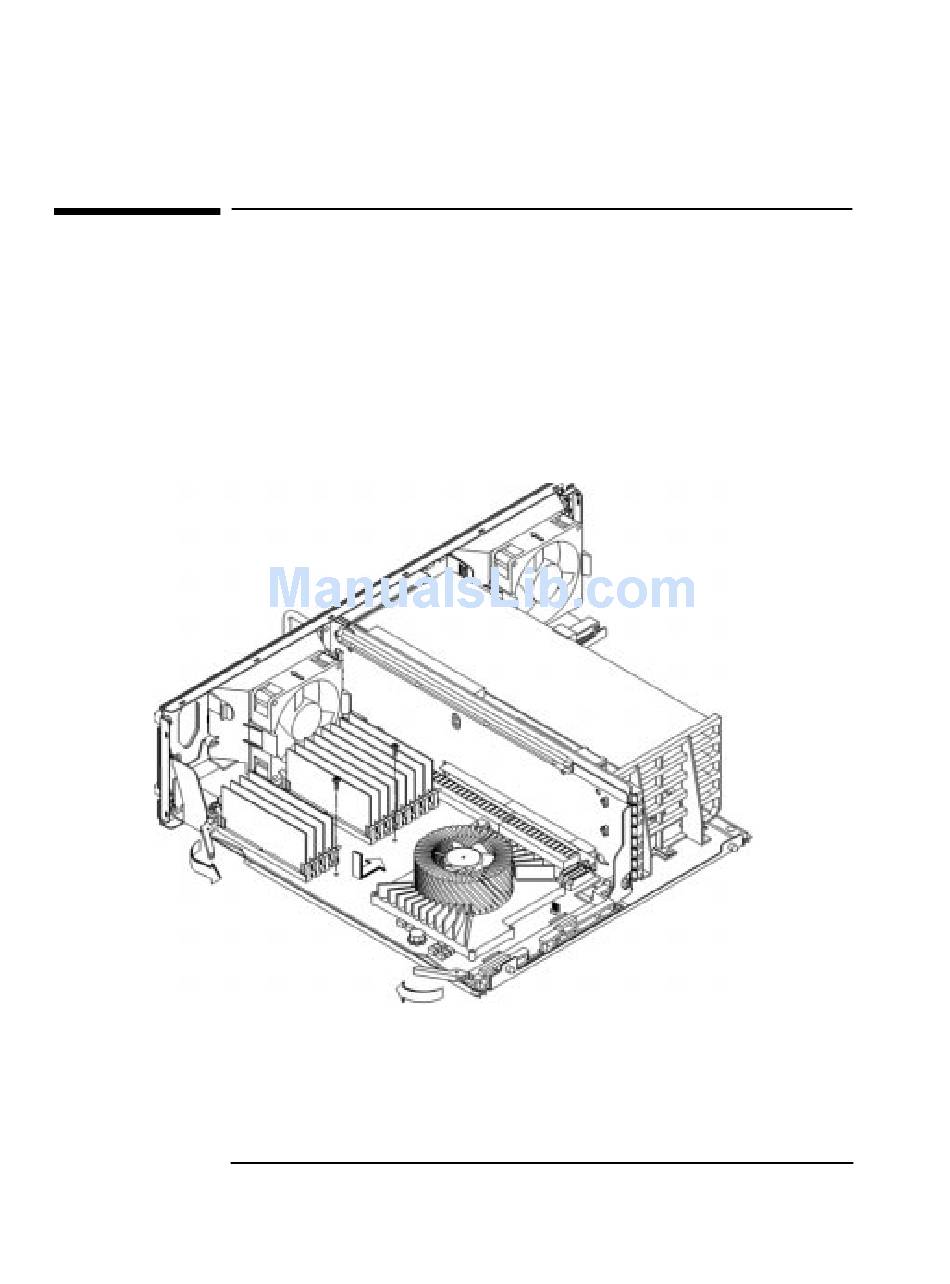

Figure 7

Installing the CPU Board (C240)

4 Install the Main Tray Assembly.

Set the CPU board down into the main tray. Slide the CPU board in approximate-

ly one inch, to install it.
