B_configure.doc 134 Tue Jul 2 15:27:17 1996
Changing Your Workstation's Hardware Configuration
Installing the EGRAM (Enhanced Graphics RAM) Module
10 Press in firmly on both ends of the option board at the same time to make sure
that it is firmly seated in the backplane connector.
11 Replace the EISA retainer and its screw, as shown in Figure 49.
12 Replace the EISA slider, as shown in Figure 49.

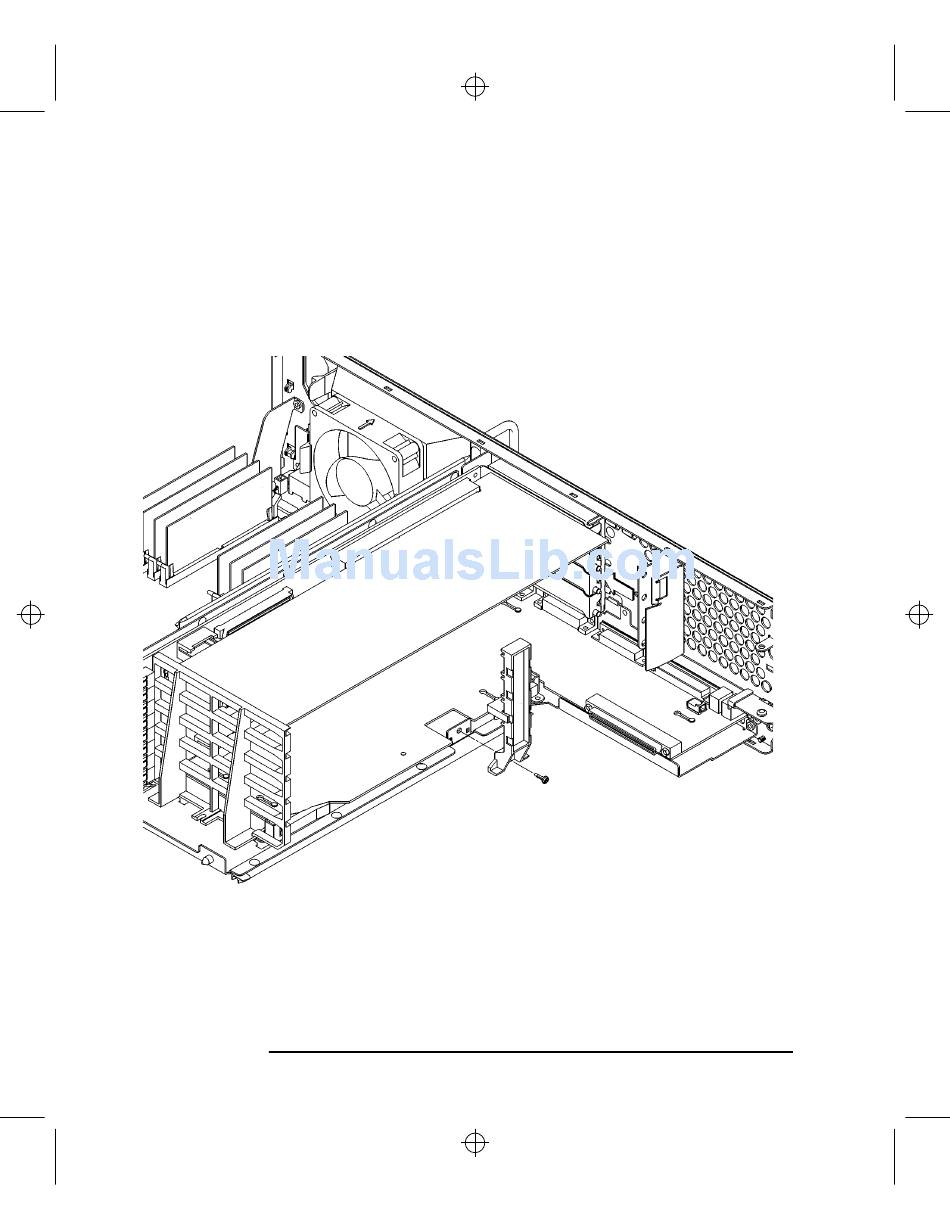

Figure 49
Installing the EISA Retainer and EISA Slider
134
