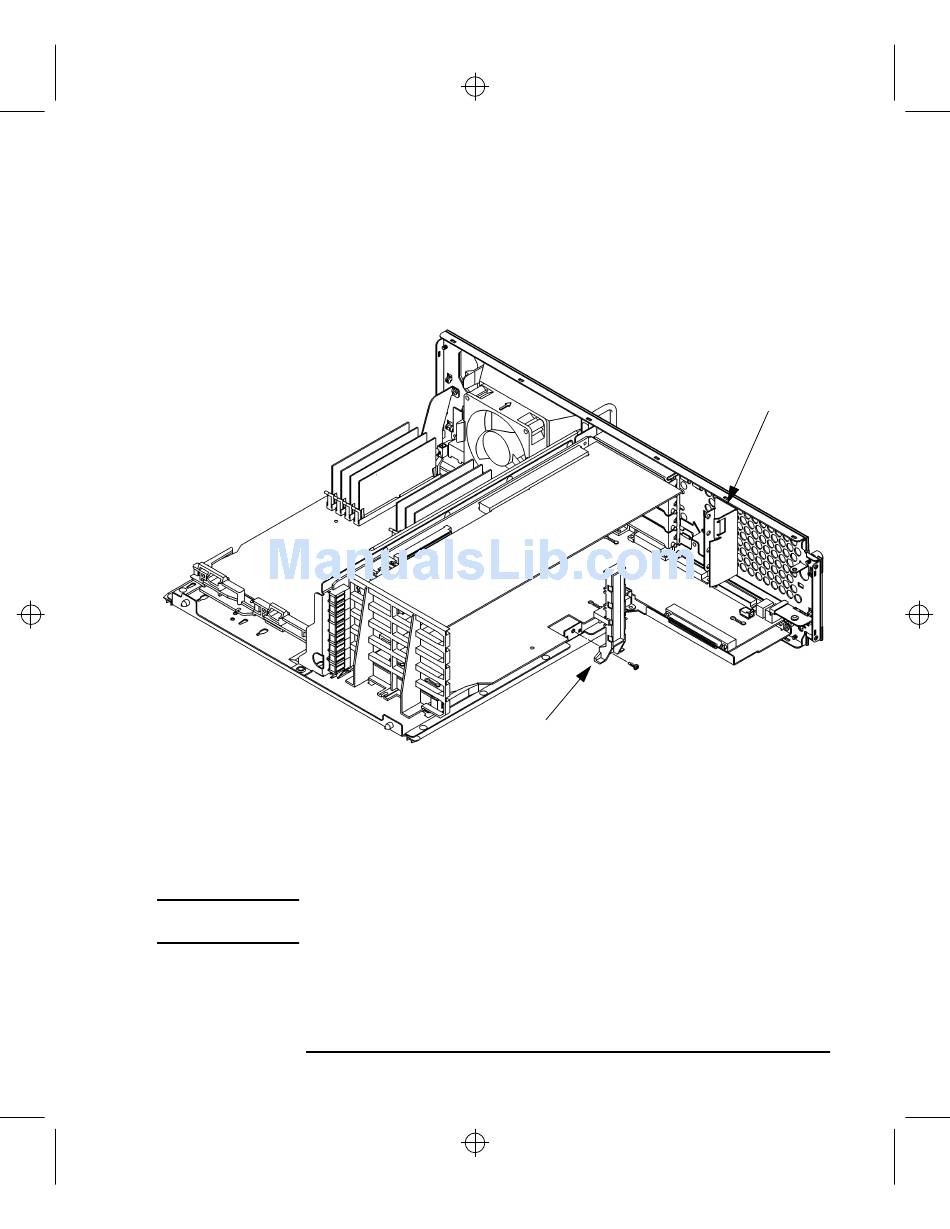

Figure 45
NOTICE
2 Slide the EISA slider to the side to remove it, as shown in Figure 45.
3 Remove the screw from the EISA retainer and remove it, as shown in Figure 45.

Removing the EISA Slider and Retainer

4 Grasp the option board by the edge with both hands and pull it straight out.
Remove all option boards, making note of which option slot each one was
installed in.
All boards must be replaced in their original slots or your system may not
run properly.
Changing Your Workstation's Hardware Configuration
Installing the EGRAM (Enhanced Graphics RAM) Module
EISA Retainer
EISA Slider
