Changing Your Workstation's Hardware Configuration
Installing an EISA, PCI, or GSC Option Board

Installing the Option Board

Follow these steps to install a GSC, EISA, or PCI board into your worksta-
tion:
1 Remove the main tray assembly as described in "Removing the Main Tray As-
sembly" earlier in this appendix.

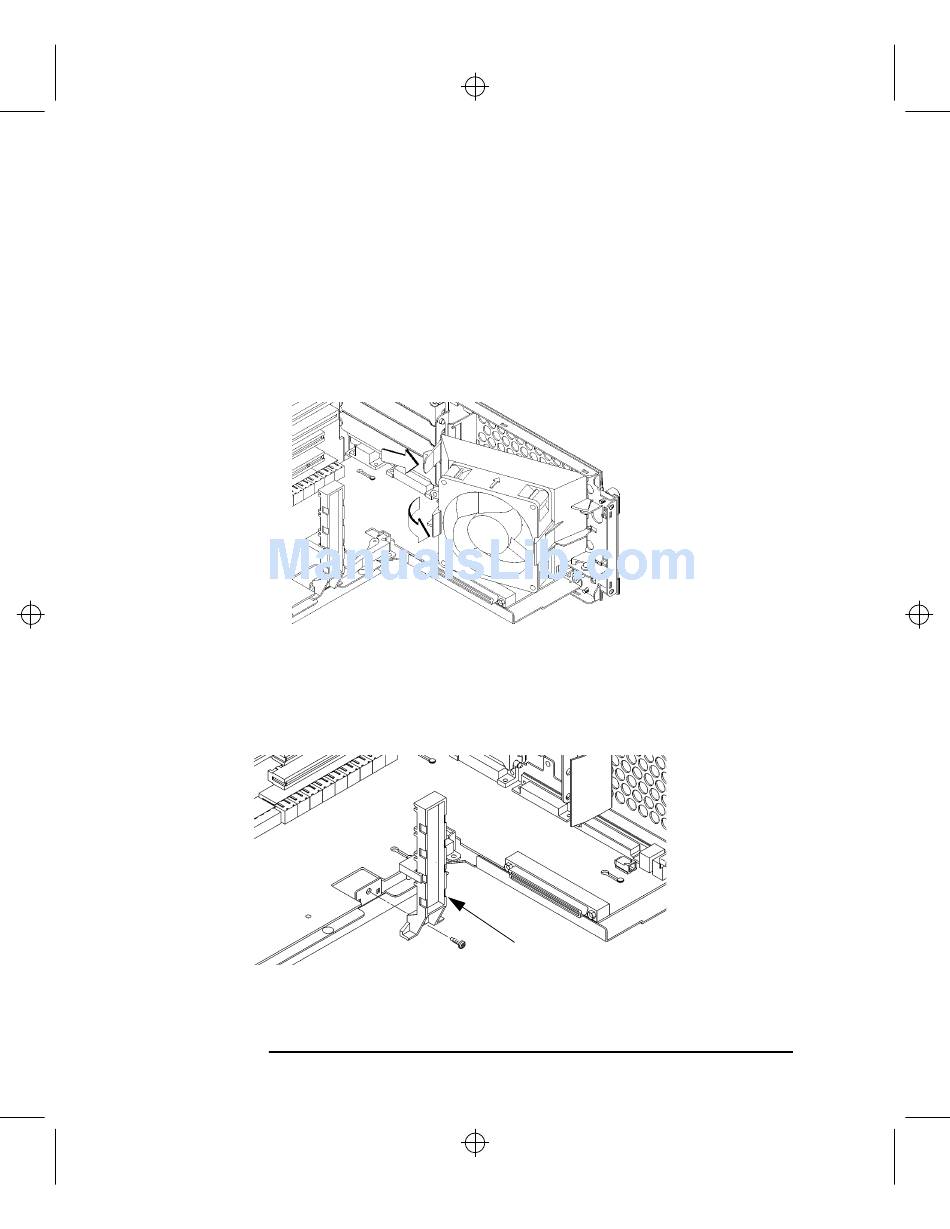

2 Press the fan release clip and rotate the fan, as shown in Figure 52.

Rotating the Fan

3 Remove the screw from the EISA retainer, and remove the EISA retainer, as
shown in Figure 53.

Removing the EISA Retainer

140
EISA Retainer
