INSTALLATION AND CARE GUIDE
R
WOODBRIDGE

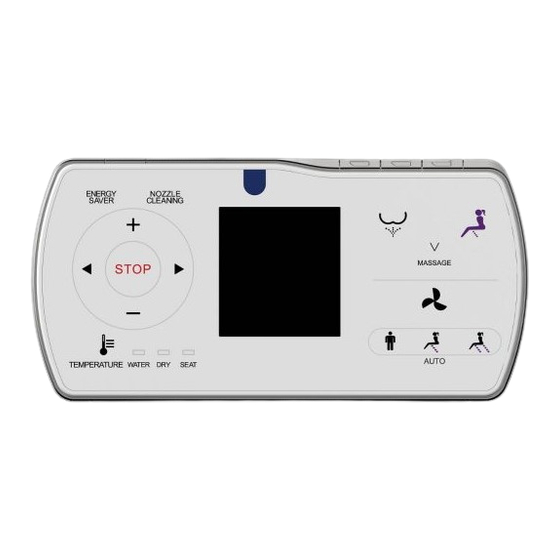

Remote Control Illustration
ENERGY
NOZZLE
SAVER
CLEANING
MASSAGE
STOP
AUTO
TEMPERATURE
WATER
DRY
SEAT
Thank you for choosing our product.Please read the instructions carefully before
installation and keep it available for future maintenance or reference.
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: help.woodbridge@gmail.com
110618 REV. 1
www.woodbridgebath.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Woodbridge B0950S/V8300
Summary of Contents for Woodbridge B0950S/V8300
- Page 1 Thank you for choosing our product.Please read the instructions carefully before installation and keep it available for future maintenance or reference. Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help.woodbridge@gmail.com 110618 REV. 1 www.woodbridgebath.com...
-
Page 2: Installation Preparation
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Installation Preparation Installation Preparation Remote control installation Remote control hanger installation (1)Drill two holes, which are parallel to the floor, on the wall with depth of 35mm, and center distance between two holes of 106mm. Make sure end-user be able to reach the remote control when sitting on the seat. -
Page 3: Usage Instruction
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Remote control illustration Front Flush button Rear Nozzle cleaning Energy saver Massage Drying U R E P R E S S Auto rear/front cleaning Auto Front cleaning Auto rear cleaning Water pressure adjustment Temperature adjustment... -
Page 4: Drying Operation
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Rear/Front cleaning Press “Rear”/“Front” button, the water comes out of wand to clean the rear/front portion of body. It automatically stops after a cycle of cleaning. If press “STOP” button when using, the function will stop immediately. -
Page 5: Auto Function
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Auto function Full-automatic function can be achieved by three “AUTO” buttons, convenient and practical. User can pre-set the suitable nozzle position, water pressure and temperature and save the setting. Full-automatic function will be activated by pressing the related function button when using afterwards. -
Page 6: Energy Saver
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Energy saver Setting energy saver time Press “ENERGY SAVER” button, LCD screen shows energy saver and figures. It shows three options of energy saver period as 3-6-9-off, which can be selected accordingly. For example, user can set from 9:00 to 15:00 as energy saver according to following operation. - Page 7 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Spray nozzle position adjustment During “REAR” or “FRONT”, press spray nozzle button of “ ” and “ ”, to move the position forward and backward by adjusting 5 levels. Water pressure adjustment During “REAR” or “FRONT”, press water pressure button of “+” and “-”, to adjust pressure for rear and front cleaning.
-
Page 8: Temperature Adjustment
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Temperature adjustment Water temperature adjustment: Press “TEMPERATURE” button one time, “WATER ” light is on,icon on the screen lights on, then adjust WATER water temperature by “+”, “-” button. It is regarded as operation completed if there is no operation in 5 seconds,... -
Page 9: Full Flush
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Full flush Press “FLUSH” button to activate full flushing. Nozzle cleaning www.woodbridgebath.com... -
Page 10: Nozzle Cleaning
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Nozzle cleaning Nozzle self-cleaning by quick press: Quick press “NOZZLE CLEANING” button, the nozzle self-cleans for a while and moves to the front position (no spray). People can continue to clean nozzle manually. self-clean for Nozzle self-cleaning by long press：... -
Page 11: Night Light
WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Combination button Night light Press “STOP” button, then “DRY” button, night light will be often in the off state; Repeat the process, night light will switch to intelligent state. Repeat above process constantly, the night light will switch between off state and intelligent state. - Page 12 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Set auto function Set automatic Rear cleaning function The default setting of automatic function is water pressure on level three, nozzle position on level three, water temperature, wind temperature and seat temperature on level three, the massage function is in the off state. User can re-set based on personal preference.
- Page 13 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Set auto function Set automatic Front cleaning function (1)Press spray nozzle position adjustment button to adjust nozzle to suitable position; Press “+”, “-” to adjust water pressure; set temperature level; open/ close massage function. (2)Press “...
- Page 14 If user needs to change previous settings, please repeat step 1-3. Thank you for using WoodBridge products! Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help.woodbridge@gmail.com...
