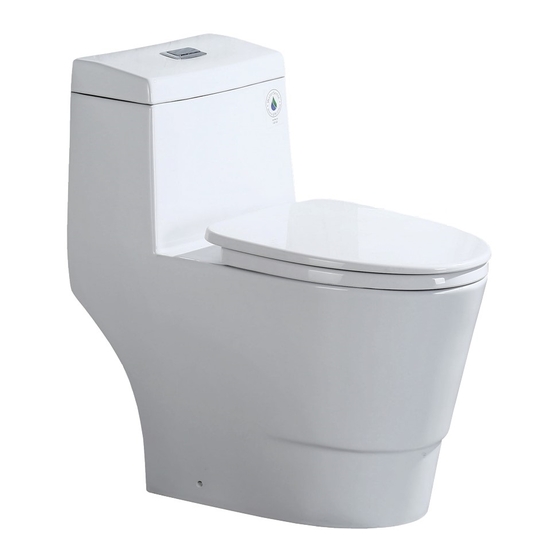

Convenient 20" height bowl toilet

Advertisement

Quick Links

INSTALLATION AND CARE GUIDE
CONVENIENT 20" HEIGHT BOWL TOILET: T-0035/B0910
Compliance with the following codes & standard:
• 2015 Uniform Plumbing Code
• 2018 International Plumbing Code
• 2018 International Residential Code
• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures
ICC
TM
LISTED
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
WOODBRIDGE
SCC Accredited
CB-P/S
ANSI
ACCREDITED
ISO/IEC 17065
OCPS
Product Certification Body
Accrédité
CCN
#1000
Or Email: help.woodbridge@gmail.com
www.woodbridgebath.com
R
®
( UPC )
®
( IPC )
®
( IPC )
PREFERED
EDUCATION
PROVIDER
092718 REV. 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-0035 and is the answer not in the manual?

Questions and answers

Summary of Contents for Woodbridge T-0035

  • Page 1 INSTALLATION AND CARE GUIDE WOODBRIDGE CONVENIENT 20" HEIGHT BOWL TOILET: T-0035/B0910 Compliance with the following codes & standard: ® ( UPC ) • 2015 Uniform Plumbing Code ® ( IPC ) • 2018 International Plumbing Code ® ( IPC ) •...
  • Page 2: Tools Required For Installation

    WOODBRIDGE MODERN ONE PIECE TOILET READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
  • Page 3 WOODBRIDGE MODERN ONE PIECE TOILET 28 1/2" 14 1/4" 2 1/2" 8" 2" 18" Rough-in 12" Standard IMPORTANT INFORMATION • Measurements are ± 3/8" and subject to change without notice • Please note that installer(s) must be certify or warranty will be voided.
  • Page 4 WOODBRIDGE MODERN ONE PIECE TOILET WATER SUPPLY LOCATION & TECHNICAL INFORMATION Side View Back View Threaded Shunk (Water Supply Fill Valve) Floor 5 1/2" Rough-in 12" Standard Side View Tank Top View (Inside) Full Half Flush Flush (1.6GPF) (1GPF) Adjust the water level in the...
  • Page 5: Installation Instructions

    WOODBRIDGE MODERN ONE PIECE TOILET INSTALLATION INSTRUCTIONS IMPORTANT! Shut off main water supply prior to installation! REMOVE OLD TOILET 1. Shut off water supply line. If you do not have shut-off valve near the toilet shut off main water supply line.
  • Page 6 WOODBRIDGE MODERN ONE PIECE TOILET CAUTION! 2 PEOPLE ARE REQUIRED TO LIFT AND DURING ENTIRE INSTALLATION OF THIS PRODUCT INSTALL NEW TOILET Step 1. Lift and carefully put the toilet over the closet flange so the closet bolts can go through the mounting holes in the toilet's base.
  • Page 7 WOODBRIDGE MODERN ONE PIECE TOILET TOILET SEAT ADJUSTMENT Hinge set Seat and cover Insert the hinges into the toilet Tighten the screws of the hinges Untighten the screws a bit by turn- ing them 90° right Clip on the toilet seat and cover...
  • Page 8: Base Installation

    WOODBRIDGE MODERN ONE PIECE TOILET ADJUSTMENT & MAINTENANCE (DUAL FLUSH VALVE) Important Note: Flush GPF amount is factory set. No additional adjustment is required. This page is for reference only. All adjustments are already made by manufacturer. 1. BASE INSTALLATION...
  • Page 9: Water Level Adjustment

    WOODBRIDGE MODERN ONE PIECE TOILET ADJUSTMENT & MAINTENACE (FILL VALVE) Important Note: Flush GPF amount is factory set. No additional adjustment is required. This page is for reference only. All adjustments are already made by manufacturer. Instructions: 95mm When valve installed, the critical level mark on fill valve (identified by C.L.
  • Page 10 Note: fill and flush valves are maintenance free. No maintenance is required. Retain these installation instructions for future reference! Thank you for using WoodBridge products! Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help.woodbridge@gmail.com...
  • Page 11: Installer Information

    WOODBRIDGE NOTES NOTES INSTALLER INFORMATION INSTALLER INFORMATION DATE OF INSTALL: DATE OF INSTALL: INSTALLER’S NAME: INSTALLER’S NAME: PLUMBER: PLUMBER: CONTRACTOR: CONTRACTOR: LICENSE #: LICENSE #: www.woodbridgebath.com...
  • Page 12 . This warranty does not WOODBRIDGE extend to plumbing or components installed by dealers, installers or Woodbridge products must be installed by a fully insured and by any party other WOODBRIDGE licensed plumber only. Installation of any our product by anyone...
