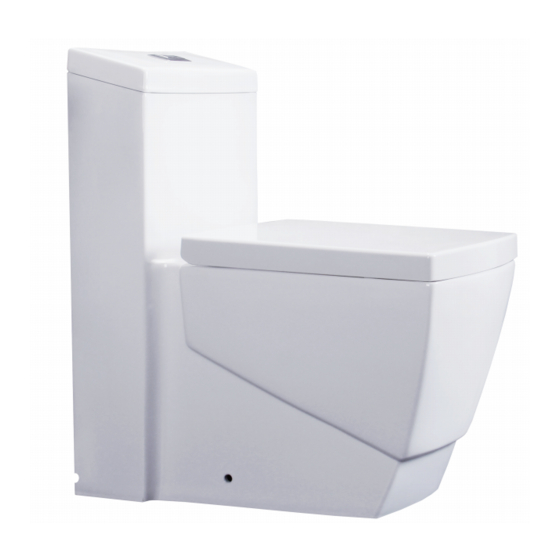

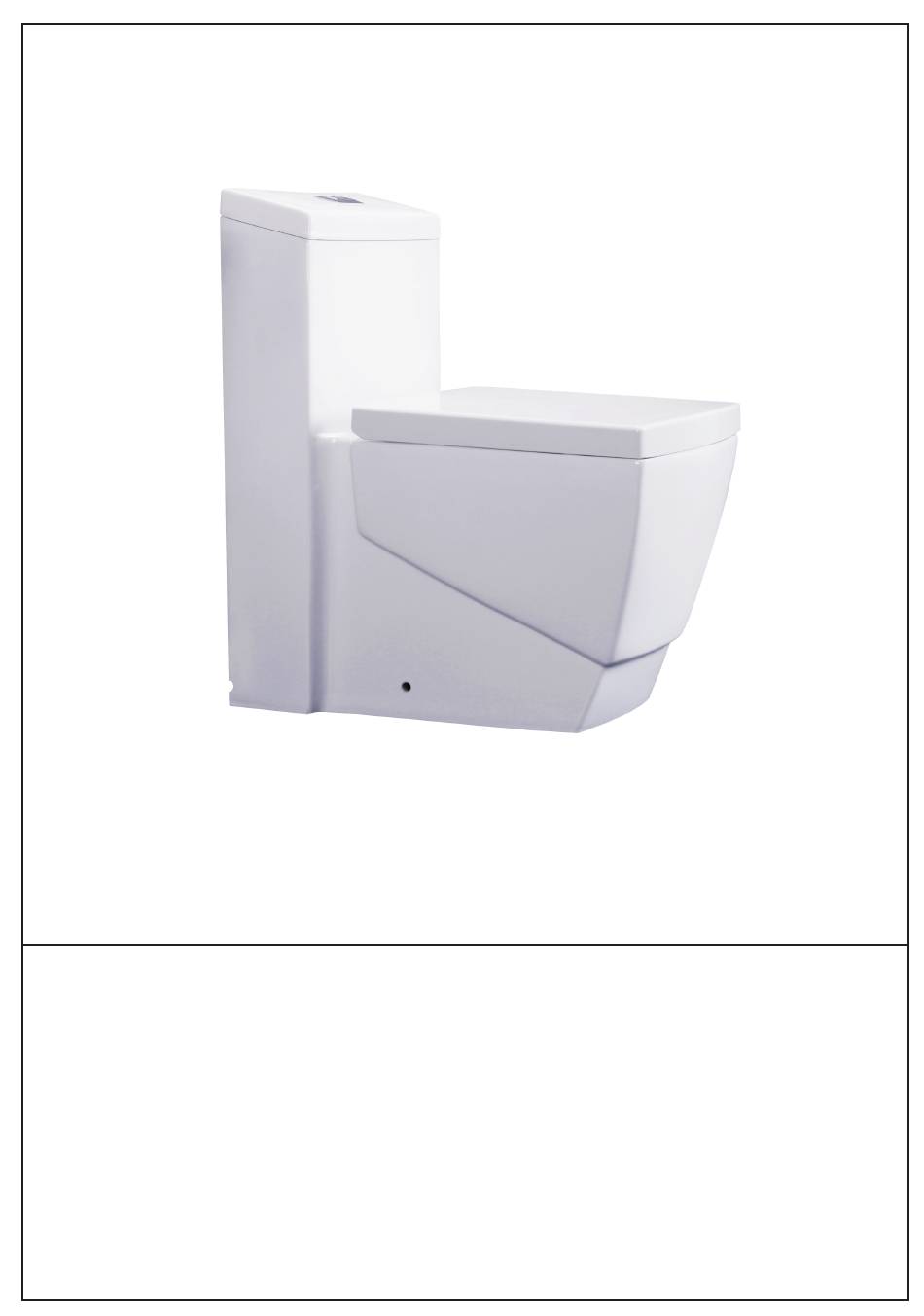

- Page 1 ONE PIECE SQUARE TOILET B0920 MPN: INSTALLATION INSTRUCTIONS WoodBridge...
-
Page 2: Tools Required For Installation
ONE PIECE SQUARE TOILET READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION. 2 PEOPLE ARE REQUIRED TO LIFT AND DURING ENTIRE INSTALLATION OF THIS PRODUCT INSTALLATION OF THIS PRODUCTS BY AN INEXPERIENCED INSTALLER MAY RESULT... -
Page 3: Dimensions/Technical Data
ONE PIECE SQUARE TOILET DIMENSIONS/TECHNICAL DATA 355mm [14"] 470mm [18 1/2"] 755mm 400mm [29 3/4"] [15 3/4"] 305mm [12"] 153mm [6"] 270mm 381mm 152mm [10 5/8"] [6"] [15"] 1 5/8" 345mm [13 5/8"] 685mm [27 "] ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull all dimensions of actual model for installation and measuring purposes. - Page 4 ONE PIECE SQUARE TOILET WATER SUPPLY LOCATION & TECHNICAL INFORMATION Side View Back View Threaded Shunk (Water Supply Fill Valve) Floor Rough-in 12" Standard Side View Tank Top View (Inside) Full Half Flush Flush (1.6GPF) (1GPF) Adjust the water level in the Flush GPF amount is factory toilet's tank if neccessary by Floor...
-
Page 5: Installation Instructions
ONE PIECE SQUARE TOILET INSTALLATION INSTRUCTIONS IMPORTANT! Shut off main water supply prior to installation! REMOVE OLD TOILET 1. Shut off water supply line. If you do not have shut-off valve near the toilet shut off main water supply line. 2. - Page 6 ONE PIECE SQUARE TOILET CAUTION! 2 PEOPLE ARE REQUIRED TO LIFT AND DURING ENTIRE INSTALLATION OF THIS PRODUCT INSTALL NEW TOILET Step 1. Lift and carefully put the toilet over the closet flange so the closet bolts can go through the mounting holes in the toilet's base.
- Page 7 ONE PIECE SQUARE TOILET TOILET SEAT ADJUSTMENT Hinge set Seat and cover Insert the hinges into the toilet Tighten the screws of the hinges Untighten the screws a bit by turn- ing them 90° right Clip on the toilet seat and cover Aligh the toilet seat and cover Take off the toilet seat and cover with ceramic...
-
Page 8: Troubleshooting
ONE PIECE SQUARE TOILET ADJUSTMENT & MAINTENANCE (DUAL FLUSH VALVE) Important Note: Flush GPF amount is factory set. No additional adjustment is required. This page is for reference only. All adjustments are already made by manufacturer. 1. BASE INSTALLATION Gasket Check the dual flush Install the base with the Install a body of the flush... -
Page 9: Water Level Adjustment
ONE PIECE SQUARE TOILET ADJUSTMENT & MAINTENACE (FILL VALVE) Important Note: Flush GPF amount is factory set. No additional adjustment is required. This page is for reference only. All adjustments are already made by manufacturer. Instructions: 95mm When valve installed, the critical level mark on fill valve (identified by C.L. - Page 10 ONE PIECE SQUARE TOILET CLEANING & TROUBLESHOOTING (FILL VALVE) FILL VALVE CLEANING Shut off water supply line Carefully, take out the filter Use water to wash and clean Re-install the filter and before filter cleaning. from inlet by using pliers. the filter and adapter from any re-connect the water supply debris.
