NT9005 EU V1.0
32 ZONE SECURITY SYSTEM
Compatible with DLS2002 downloading software
Installation & Programming Guide
WARNING: This manual contains information on limitations regarding product use and function and
information on the limitations as to liability of the manufacturer. Read the entire manual carefully.
firealarmresources.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Envoy NT9005EU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSC Envoy NT9005EU

Summary of Contents for DSC Envoy NT9005EU

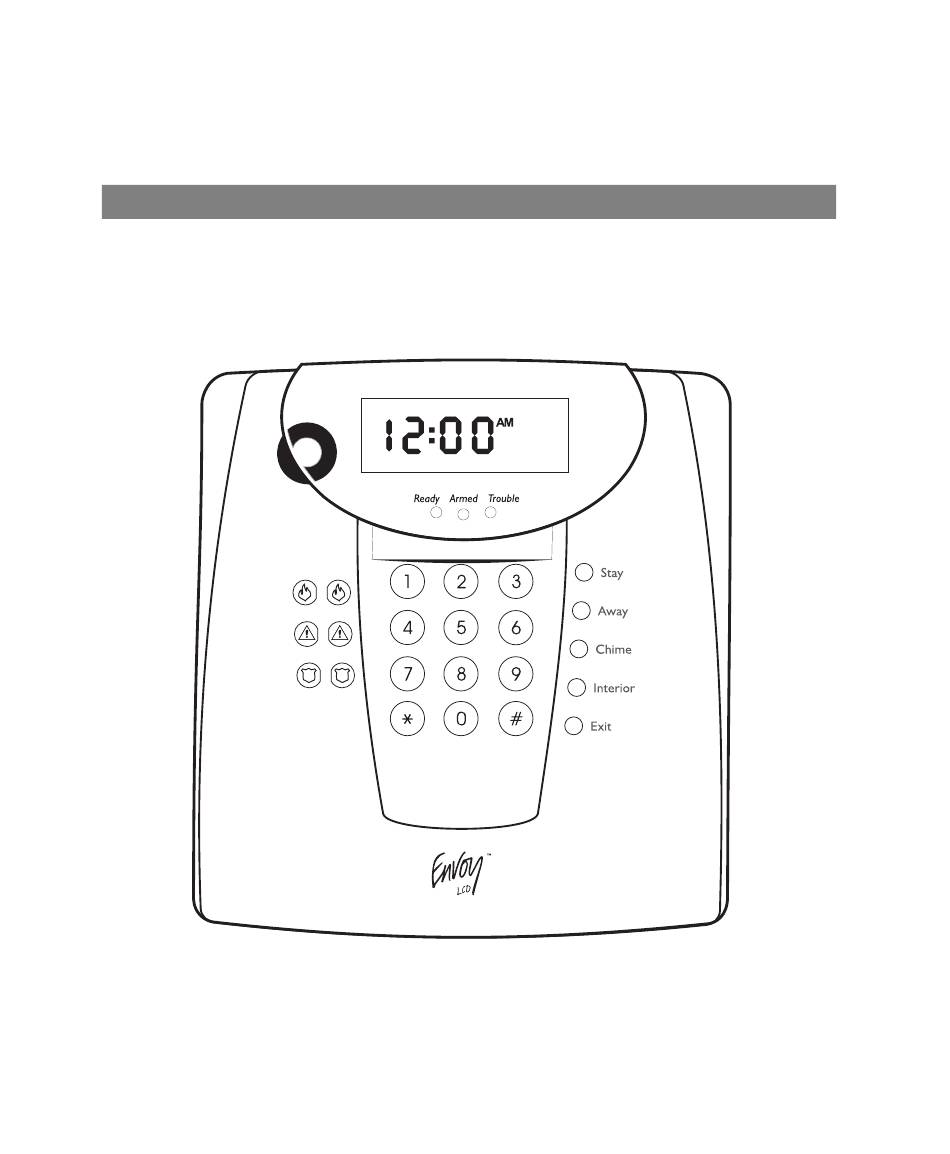

  • Page 1 NT9005 EU V1.0 32 ZONE SECURITY SYSTEM Compatible with DLS2002 downloading software Installation & Programming Guide WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. Read the entire manual carefully. firealarmresources.com...
  • Page 2 FCC COMPLIANCE STATEMENT CAUTION: Changes or modifications not expressly approved by Digital Security Controls Incidence of Harm Ltd. could void your authority to use this equipment. If the NT9005 equipment causes harm to the telephone network, the telephone company will This equipment has been tested and found to comply with the limits for a Class B digital device, notify you in advance that temporary discontinuance of service may be required.

  • Page 3: Table Of Contents

    Table of Contents 3-2 Conventions Used ....12 Chapter 1: Description & Operation ..1 3-3 [*] Functions ..... . . 13 1-1 System Overview .
  • Page 4 Such damages include, but are not limited to, loss of profits, loss that they do not function upon delivery. In such cases, DSC can replace or of the product or any associated equipment, cost of capital, cost of substi- credit at its option.

  • Page 5: Chapter 1: Description & Operation

    Chapter 1: Description & Operation 1-1 System Overview • NT9204 Keybus interface/4 programmable outputs • 32 wireless detectors (maximum). The NT9005 is a full-featured, wireless security system • 16 wireless keys (maximum). designed for fast and easy installation. The system may include any of the following components (refer •...

  • Page 6: System Specifications

    Description & Operation 1-2 System Specifications • 3 programmable telephone numbers • 2 system account codes The NT9005 system supports up to 32 system users. • DTMF and pulse dialing The system can be programmed using the keypad on the NT9005 control unit, or using DLS2002 down- •...

  • Page 7: Modules And Devices

    1-3 Modules and Devices 1-3 Modules and Devices Refer to the relevant installation manuals for specifica- external contacts. This device is fully supervised for tions, installation and operation of the following mod- tamper, device fault, low battery, open and closed. ules and devices.

  • Page 8: Nt9005 Label & Console

    Description & Operation 1-4 NT9005 Labels & Console 1-5.1 Start-up • When power is first applied to the system the fol- The NT9005 system comes with peel off instructions lowing will occur: which list the Flash Programming steps for quick setup.
  • Page 9 1-5 Operation Figure 2 - LCD Display Figure 3 - Controls & Indicators Ready Armed Troubl Stay Aw ay C hime Interio Exit 7-segment Displays 1 and 2 – These two 7-segment displays indicate the hour digits when the local clock is active, and identify the zone when the OPEN or ALARM icons are active.
  • Page 10 Description & Operation Stay Armed - (Ready light is OFF, Stay icon is ON, Zone Violations- When an armed zone is violated: Bypass icon is ON), This mode is activated by pressing • The event is logged to the event buffer. a function key programmed for Stay mode (default •...

  • Page 11: Chapter 2: Installation

    Chapter 2: Installation 2-1 Installation Procedure Install NT9005 Back Cover- Route wiring through the access holes provided and mount the Read the following procedure to familiarize yourself back cover. Refer to paragraph 2.2 ‘NT9005 with the necessary steps before installing the system. Installation’.

  • Page 12: Nt9005 Installation

    Installation 2-2 NT9005 Installation Secure the wiring to the appropriate terminals (2) using a flat blade screwdriver. The NT9005 back cover comes attached to the back Mount the unit on the junction box using the of the NT9005 control unit. The back cover acts as a screw holes (3) provided.

  • Page 13: System Wiring

    2-3 System Wiring 2-2.3 Mounting the Control Unit Ratings: 9 V / 20 VA / 50/60 Hz. Position the unit on the mounting tabs located at Module A is wired correctly the top of the back cover. Refer to Figure 5. (within 1000’/305m of the panel) WARNING: Ensure that AC Power is OFF when mount- Module B is wired correctly...
  • Page 14 Installation 2-3.2 Programmable Output Wiring Entering [00] in section [030] will configure the associated terminal as a PGM output. To Programmable outputs (PGMs) are available directly configure the terminal as a zone, [01]-[32] from the system panel or from the NT9204 module. must be entered.

  • Page 15: Wireless Device Placement

    2-4 Wireless Device Placement The hardwired zones of this product are intended to be used with contacts or key- switches. No power is available to power motion or smoke detectors 2-3.4 Telephone Line If a telephone line is required for central station commu- nication or downloading, connect the RJ-31X telephone line to the terminals indicated in the figure below.

  • Page 16: Chapter 3: Programming

    Chapter 3: Programming 3-1 Programming Overview Advanced Programming Advanced Programming enables the installer to cus- There are three methods of programming the tom design all aspects of the system. See Chapter 5: NT9005: Flash Programming, Advanced Program- Advanced Programming. ming, and downloading with DLS2002 Software. DLS Software Programming [*] Functions DLS software enables the installer to download/upload...

  • Page 17: Functions

    If the [#] key is pressed, only the data entered will be [*] Functions changed. All programming data remaining will be left All programming of features, function keys, and priority keys unchanged. For example, when programming tele- (Fire, Panic and Auxiliary keys) is accomplished through the [*] phone numbers, press the [#] key after the number is functions.
  • Page 18 Programming [*][2] Trouble Announcements [*][1] ZONE BYPASSING When Disarmed - A bypassed zone will not cause an alarm. If The panel continuously monitors a number of possible trouble a zone is bypassed the panel can be armed (Ready light will be conditions.
  • Page 19 3-3 [*] Functions 2 AC Failure - There is no audible annunciation on AC Press [*][2][7] ; keypad beeps 2 times, scrolls power failure. The system Trouble light will come zones 1-32. ON, but the audible indication will not sound until Press [7] again;...
  • Page 20 Programming [*][5] Programming Access Codes [*][6] USER Functions Enter [*][5][Master Code][01-32,33,34,40,41,42] to pro- Enter: [*][6][Supervisor Code or Master Code][1-8] for gram access codes. functions listed below. Enter [*][5][Master Code][01-32,33,34,41,42][*] to delete 1 Time and Date - The default setting for time and an access code.
  • Page 21 3-3 [*] Functions 8 User Walk Test - This will start or end the User Walk [*][8] Flash/Advanced Programming Test. Three beeps indicate that the test has begun; a Enter [*][8][Installer Code][1] to enter Flash Programming. two second tone indicates that the test has ended. See Flash Programming for Details The User Walk Test is identical to the Installer Walk Enter [*][8][Installer Code][2] to enter Advanced Program-...

  • Page 22: Chapter 4: Flash Programming

    Chapter 4: Flash Programming Refer to:Zone Definitions section [ 001] to [004] Flash Programming FLASH Zone Assignment section [202] to [205] Flash Programming provides a quick way to program the Wireless Serial Numbers in section [804] system when standard options are selected or to provide a Telephone Number basic setup before more advanced programming is per- formed.
  • Page 23 Account Information Record Central Station Telephone Number I___I___I___I___I___I___I___I___I___I___I___I___I___I___I___I___I Client_____________________________________________ I___I___I___I___I___I___I___I___I___I___I___I___I___I___I___I___I Address___________________________________________ Central Station Account Number I___I___I___I___I Telephone_________________________________________ Installation Date___________________________________ Installer’s Code I___I___I___I___I Zone Serial Number Location Zone Serial Number Location I___I___I___I___I___I___I _____________________ I___I___I___I___I___I___I _____________________ I___I___I___I___I___I___I _____________________ I___I___I___I___I___I___I _____________________ I___I___I___I___I___I___I _____________________ I___I___I___I___I___I___I _____________________ I___I___I___I___I___I___I...

  • Page 24: Chapter 5: Advanced Programming

    Chapter 5: Advanced Programming [301] First Telephone Number (32 Digits) ... 33 This section enables the installer to program all aspects [302] Second Telephone Number (32 Digits) ..33 [303] Third Telephone Number (32 Digits) .

  • Page 25: Keypad Programming

    [000] Keypad Programming [*][5] User Programming - Console Only - Pressing this key [000] Keypad Programming is the equivalent of entering [*][5]. A Supervisor or Master This section programs the display, function keys and priority keys access code is required to enter the User Programming menu. options.
  • Page 26 Advanced Programming [000][6] Keypad Programming [000][7] Keypad Priority Key Options ON Local Clock Display Enabled ON [F] Key Enable System time will be displayed on the keypad Holding the [F] Key is two seconds generates a fire alarm. The time is not displayed during [*] programming. OFF [F] Key Disable ON [A] Key Enable OFF Local Clock Display Disabled...

  • Page 27: Zone Definitions

    [001]-[004] Zone Definition Interior Stay/Away - This zone works the same as the 24-Hr Latching/Tamper - If this zone is violated, the sys- Interior zone type except that the zone will be bypassed tem will not arm until [*][8][Installer’s Code] is entered. under the following conditions: Momentary Keyswitch Arm - Momentary violations of - the system is armed in Stay mode.

  • Page 28: System Times

    Advanced Programming [001] - [004] Zone Definitions FLASH [005] System Times This section requires 32 two digit entries. Each two digit entry deter- Default mines how the zone will operate. See Zone Definitions on the pre- Entry Delay 1 030 I___I___I___I (000 - 255) seconds ceding page and Zone Attributes section [101]-[132].
  • Page 29 [009-011] PGM Output Programming Fire and Burglary Output - causes the PGM output to System Event (with Event Options) - Latched System Event (Strobe). The PGM output switches to ground when switch to ground upon any bell activity. The output will be any of the selected System Events (Alarms) occur on the sys- pulsed or steady depending on the type of bell activity.

  • Page 30: Keypad Lockout Options

    Advanced Programming Not Used [009] PGM Output Programming (PGM 1,2) NT9005 Away Armed Status - Both output types [17] and [18] are Default designed to follow the status of the Stay/Away zones. If the system is armed with Stay/Aways bypassed, the Stay output PGM 1 I___I___I should be active.

  • Page 31: Second System Option Codes

    [014] Second System Option Codes ON Double End-of-line Resistors ON Event Buffer follows Swinger Shut- down All zones will use double end-of-line resistors. Double EOL resistors offer the capability of detecting zone faults When an event reaches the swinger shutdown limit pro- and tampers.

  • Page 32: Third System Option Codes

    Advanced Programming Bell Squawks On Trouble ON Quick Exit Enabled Whenever there is a Trouble condition annunciated on the When armed, users may enter the [*][0] command to allow a system keypads, the bell will squawk 2 times every 10 sec- single Delay 1 or Delay 2 zone to be activated so they may onds (as per the keypad buzzer).

  • Page 33: Fourth System Option Codes

    [016] Fourth System Option Codes [016] Fourth System Option Codes [017] Fifth System Option Codes ON AC Trouble Displayed ON WLS Key does not use Access Code If AC power fails, the condition will be reported to the moni- The panel will NOT accept the disarm keycode from an uni- toring station and will be indicated as a Trouble condition on dentified wireless key.

  • Page 34: Sixth System Option Codes

    Advanced Programming [018] Sixth System Option Codes [030] Hardwired Zone Assignments ON Keybus Enabled This two digit entry indicates which zones will be hardwired zones. The first entry is for zone 1, the second entry is for zone 2. Keybus Expansion Enabled. The two flexible ports are set to run external Keybus for module support.

  • Page 35: Zone Attributes

    [101] -[132] Zone Attributes [101] -[132] Zone Attributes Zone Attribute Defaults: = Option ON = Option OFF Zone Type 00 Null Zone [101] 01 ( 01 Delay 1 [102] 02 ( 02 Delay 2 [103] 03 ( 03 Instant [104] 04 ( 04 Interior [105] 05 ( 05 Int.

  • Page 36: Programmable Output Attributes

    Advanced Programming [141-154] Programmable Output Attributes [172] Burglary Verified Timer This option affects the Cross Zone Police Code log and transmission, See section [009-011] for an explanation of PGM attributes. but it does not inhibit the normal communication of alarms. When a zone alarm occurs, the Burglary Verified Timer starts.

  • Page 37: Zone Assignment

    [202]-[205] Zone Assignment [202]-[205] Zone Assignment FLASH [301]-[311] Telephone Numbers These eight bit toggle sections determine which zones on the system The telephone numbers entered here are for use by the system to are enabled. All zones that are enabled will be supervised via the send reporting codes to the central monitoring station, a residential panel’s EOL supervision, and will operate according to the zone type telephone or pager.

  • Page 38: Alarm/Restoral Reporting Codes

    Advanced Programming [320]-[327] Alarm/Restoral Reporting Codes [328] Misc. Alarm Reporting Codes These reporting codes are used by the communicator to transmit These codes are sent to the Alarm and Restorals Call Direction zone alarms and restorals for zones 01-32. They are sent to the Group programmed in section [361].

  • Page 39: Tamper/Restoral Reporting Codes

    [330]-[337] Tamper/Restoral Reporting Codes [330]-[337] Tamper/Restoral Reporting Codes [339]-[347] Closing(Arming)/Opening Reporting Codes These codes are sent to the Tamper Alarm and Restorals Call Direc- These codes are sent to the Opening and Closing Call Direction tion Group programmed in section [363]. Group programmed in section [365].

  • Page 40: Misc. Closing (Arming) Reporting Codes

    Advanced Programming I___I___I Future Use [343] Misc. Closing (Arming) Reporting Codes I___I___I General System Trouble These codes are sent to the System Openings and Closings Call Direction Group programmed in section [365]. This code is sent to report miscellaneous system troubles not reported individually.

  • Page 41: Test Transmission Reporting Codes

    [352] Test Transmission Reporting Codes This code is sent when the 128 event internal buffer has [360] Communicator Format Options reached a level of 75% full since the last successful upload from a downloading computer. 20 bps, 1400 Hz Handshake I___I___I DLS Lead IN 20 bps, 2300 Hz Handshake...

  • Page 42: Communicator Format Options

    Advanced Programming Residential Dial - This communication format works as fol- [365] System Openings and Closings lows: If an event occurs that is programmed to communicate, the ON 1st Telephone No. panel will seize the line and dial the appropriate telephone OFF 1st Telephone No.

  • Page 43: Test Transmission Time Of Day

    [371] Test Transmission Time of Day [4] Transmission Delay [380] First Communicator Option Codes This value defines the delay before transmission. The delay is for ON Communications Enabled zones which have the Transmission Delay attribute enabled. The system’s communicator will be enabled and all events Default I___I___I___I 000-255 Seconds...

  • Page 44: Second Communicator Option Code

    Advanced Programming ON Alternate Dial (1st & 3rd) ON Opening after Alarm Bell Ringback Enabled After each dialing attempt, the communicator switches between the 1st phone number and 3rd phone number until When the Opening After Alarm reporting code is transmitted all attempts have been made to each number.

  • Page 45: First Downloading Option Code

    Section [400] Downloading ON Call Back enabled Section [400] Downloading When the system answers the downloading computer’s Downloading call, the computer and the system will hang up. The sys- Downloading allows programming of the entire system via a tem will then call the downloading computer’s telephone computer, modem and telephone line or PC-Link.

  • Page 46: Clock Adjust

    Advanced Programming ON Access codes are 6 digits [700] Clock Adjust All access codes in the system will be 6 digits in length This feature is intended to compensate for clock inaccuracies. except for the Panel ID Code and the Downloading Determine the net gain/loss per day by monitoring the clock Access Code.

  • Page 47: Second International Option Codes

    [702] Second International Option Codes ON Bell on FTC when Armed [702] Second International Option Codes If a failure to communicate trouble is generated while the ON Pulse Dialing Make/Break Ratio 33/67 system is armed, the bell output will sound for the time European Pulse Dial Standard programmed in section [005] or until the system is dis- armed.

  • Page 48: Wireless Zone Serial Numbers

    Advanced Programming [32] 000000 I___I___I___I___I___I___I Module Programming [804] Wireless Key Serial Numbers NT9204 FLASH Refer to Programmable Output options sections [009] to [011] Sub Sec- Default tion [804] Wireless Zone Serial Numbers FLASH [41] 000000 I___I___I___I___I___I___I Zone Default [42] 000000 I___I___I___I___I___I___I Section [43]...

  • Page 49: Zone Transmitter Supervision Options

    [804]-[82-85] Zone Transmitter Supervision Options [804]-[82-85] Zone Transmitter Supervision Options These eight bit toggle sections determine which wireless zones on the system are supervised. All zones that are enabled will be super- vised for communication integrity, and will operate according to the zone type programmed.

  • Page 50: Installer Walk Test Enable/Disable

    Advanced Programming Indication Bell/Buzzer [901] Installer Walk Test Enable/Dis- Function able Good Good 1 Beep/Squawk 3 Beep/Squawk When this mode is ON, all zones become 24-Hr non force-armable Not Enrolled Error Tone zones that will sound the bell (steady or pulsed ) for 2 seconds and transmit their programmed alarm reporting codes (section [320- RF Jam Detection - For proper RF Jam detction, zones must be 323]) when violated.

  • Page 51: Appendix A: Reporting Codes

    Appendix A - Reporting Codes The following tables contain Contact ID and Auto- where the “1” indicates which zone went into alarm. matic SIA format reporting codes. For more informa- SIA Format - Level 2 (Hardcoded) tion on reporting code formats, see section [360] to The SIA communication format used in this product [381].
  • Page 52 Advanced Programming Automatic Dialer SIA Auto Rep Section # Reporting Code Code Sent When... Contact ID Direction* Codes** Codes [338] Keypad Lockout maximum number of incorrect access codes has (4) 21 JA-00 been entered at a keypad [339] Closings system armed (user 01-34, 40-42 indicated) (4) A2 CL-UU [343]...
  • Page 53 Table2: Contact ID Zone Alarm/Restoral Table 3: SIA Format Automatic Event Codes (as per ADEMCO): Zone Alarm/Restoral Codes Program any of these codes for zone alarms/restorals when SIA Auto Rep using the standard (non-automatic) Contact ID reporting for- Codes* Zone Definition mat.

  • Page 54: Appendix B: Smoke Detector

    Appendix B - Smoke Detector Placement Research indicates that hostile fires in homes generate smoke to a greater or lesser extent. Experiments with typical fires in homes indicate that detectable quanti- ties of smoke precede detectable levels of heat in most cases.

  • Page 55: Placement

    Appendix C - WLS925L-433/WLS935L-433 Door/Window Contact Mount Transmitter and Magnet Remove Cover Mount the backplate of the transmitter using the screws At the notched location on the cover, insert the flat blade provided and replace the circuit board. The head of the of a small screwdriver between the base and the cover screw must be below the circuit board so that the sensor and twist the screwdriver to pop the cover off.

  • Page 56: Motion Detector

    Appendix D - WLS904PL-433 Wireless Motion Detector Installation Instructions The WLS904PL motion detector is designed to com- It is suggested that wall Mounting hole knockouts bine the convenience of a wireless detector with anchors be used for all effective and reliable detection of human motion as screw locations.
  • Page 57 When performing the module placement test, the sonic Lithium CR123A battery. Do not install any other type. The reliability of the security system unit must be tampered by removing the unit from the depends on its batteries. backplate and replacing it. The placement test cannot be performed by creating motion in front of the device.
  • Page 58 NOTES firealarmresources.com...
  • Page 59 WARNING Please Read Carefully No t e to Ins ta ll er s smoke detectors, such as when the fire is in a chimney, walls or roofs, or on the This warning contains vital information. As the only individual in contact with other side of closed doors.
  • Page 60 CLASS 1.7 ©2005 Digital Security Controls Toronto, Canada • www.dsc.com Printed in Canada 29007148R001 firealarmresources.com...
