32 zone security system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Compatible with DLS-3 v1.3 (and higher) downloading software

User Guide

WARNING: This manual contains information on limitations regarding product use
and function and information on the limitations as to liability of the manufacturer.
Read the entire manual carefully.
NT9005 V1.0
32 ZONE SECURITY SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Envoy NT9005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSC Envoy NT9005

Summary of Contents for DSC Envoy NT9005

  • Page 1: User Guide

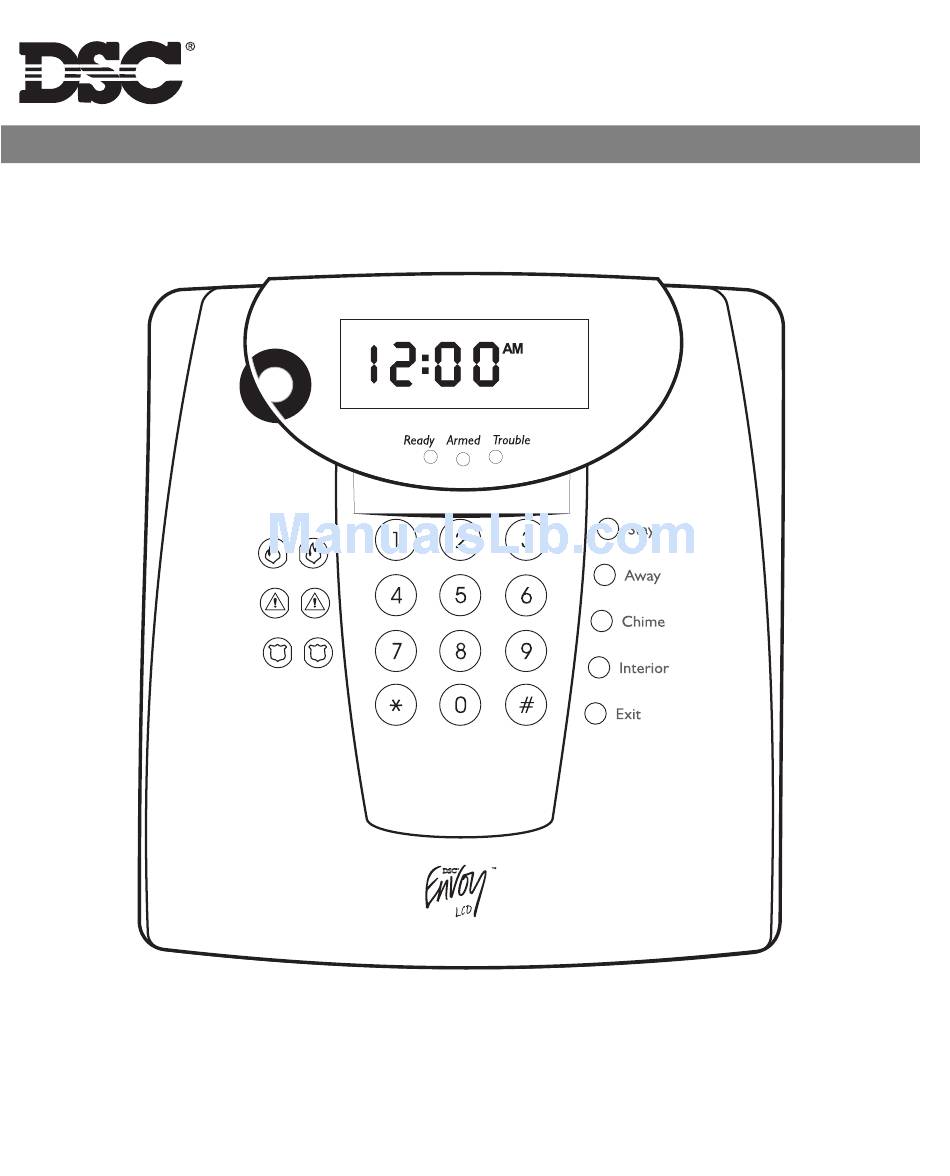

    NT9005 V1.0 32 ZONE SECURITY SYSTEM Compatible with DLS-3 v1.3 (and higher) downloading software User Guide WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. Read the entire manual carefully.
  • Page 2 Q u i c k R ef e r e n c e G u i d e The following chart lists the basic functions of your system, and the keys to press for each function. Refer to the listed page number for more information. NOTE: Some functions may not be available on your system.

  • Page 3: Table Of Contents

    Maintenance ..............5 Section 8: Guidelines for Locating Section 2: Using Your NT9005 System Smoke Detectors Operating the System from the NT9005 Controller ..6 Section 9: Replacing Batteries LCD................6 Tips for Buying Batteries..........24 Section 3: Turning Your System On (Arming) After Installing New Batteries ........

  • Page 4: Limited Warranty

    If the laws function upon delivery. In such cases, DSC can replace or credit at its of such a jurisdiction apply to any claim by or against DSC, the limitations option.

  • Page 5: Access Code]

    (indicated by [master code]). You can also use the master code to turn the system on and off. The NT9005 controller and its lights and functions are described on 2 and 3. The Quick Reference Guide inside the front cover shows you the commands required to access basic system functions, and the page number on which each function is described.

  • Page 6: Nt9005 Controller Features

    NT9005 controller Features This is the NT9005 controller. It controls and monitors all devices on your NT9005 security system. You can access all system functions using the buttons on the NT9005. Please familiarize yourself with your new system console and its features.
  • Page 7 Press both Keys for two seconds to send an Siren Auxiliary message. The NT9005 uses the siren to warn you about Press both Keys for two seconds to send a fire and burglary alarms. Panic message. IMPORTANT NOTE: The Fire, Auxiliary and...

  • Page 8: Section 1: Introduction

    (if remote monitoring is enabled). You will access system functions with your NT9005 controller, which is described on pages 2 and 3 of this manual. Each NT9005 has a siren, number pad, emergency keys, and five function keys.

  • Page 9: Fire Detection

    I n tr o d u c t i o n Fire Detection This NT9005 controller is capable of monitoring fire detection devices such as smoke detectors and providing a warning if a fire condition is detected. Good fire detection depends on having an adequate number of detectors placed in appro- priate locations.

  • Page 10: Section 2: Using Your Nt9005 System

    Section 2: Using Your NT9005 System Operating the The NT9005 controller provides a large, easy to understand LCD to help you to use System from your system. the NT9005 You can check the current status of your system by viewing the LCD. The NT9005...

  • Page 11: Section 3: Turning Your System On (Arming) And Off (Disarming)

    Section 3: Turning Your System On (Arming) and Off (Disarming) This section describes how to turn your system on and off. Read this section care- fully. Turning On 1. Before you turn on your system, make sure that it is Ready. You can tell that the Your System system is ready when the green (Ready) light is ON.

  • Page 12: Turning Off Your System

    As soon as you enter the correct code, the red (Armed) light turns OFF and the keypad stops beeping. 3. If an alarm occurred while the system was ON, the NT9005 will display the Memory icon. See Checking Alarms in Memory on page 14.

  • Page 13: Turning On Your System When Everyone Is Away (Away Mode)

    T u r n i n g Y o u r S ys te m O n ( A rm i n g ) a n d O f f ( Di s a rm i n g ) Turning On When you turn on your system using the Away method, both interior zones (e.g., Your System motion detectors) and perimeter zones (e.g., door and window contacts) will be...

  • Page 14: Turning On Your System While You Are At Home

    Turning On Use the Stay mode when you want to stay at home, and also want to prevent Your System unauthorized entry from outside. The system will only turn on the perimeter zones While You Are (e.g., door and window contacts), and will leave the interior zones off (e.g., At Home (Stay motion detectors) so that you will be free to move around inside.

  • Page 15: Turing On Your System With No Entry Time

    T u r n i n g Y o u r S ys te m O n ( A rm i n g ) a n d O f f ( Di s a rm i n g ) 3. Go out through the entry/exit door. The system will be armed in Away mode. If you do not exit, the system will be armed in Stay mode.

  • Page 16: Exiting When The System Is On (Quick Exit)

    Exiting When Your installer will tell you if the Quick Exit feature will work on your system. You the System is can use the Quick Exit feature to leave the premises while the system is on, with- On (Quick out having to turn your system off and on again. Exit) To use the Quick Exit feature: 1.

  • Page 17: Section 4: Dealing With Alarms And Emergencies

    Section 4: Dealing With Alarms and Emergencies Read this section carefully so that you will know what to do if your system goes into alarm. If you return to your premises and the siren is on, contact the local author- ities from a nearby safe location.

  • Page 18: Intrusion (Burglary) Alarms

    Calling for The NT9005 has three pairs of emergency keys. Using these keys you can send an Help immediate Fire, Auxiliary or Panic message to your central station.

  • Page 19: Section 5: Using Advanced Functions

    Section 5: Using Advanced Functions This section describes how to perform more specialized functions: turning off spe- cific detectors (bypassing zones), turning the door chime on or off, checking sys- tem troubles, and testing your system. Turning Off Sometimes, you may need to temporarily turn off one or more detectors (e.g., if Part of Your you need to go into a protected area while the system is turned on or if a detector System...

  • Page 20: Checking Trouble Conditions

    NOTE: For security reasons, your installer may program the system to pre- vent you from turning off certain detectors (for example, smoke detectors). NOTE: If you have 24-hour zones (zones that are continuously on) on your system, they will stay bypassed until you turn off the bypass using the steps above (ask your installer for more information).
  • Page 21 U s i n g A d v an c e d F u n c t i o n s Display: Problem and how it should be addressed: [2] AC Power Electrical power to the system has been interrupted. Check your fuse box or circuit breaker to ensure that the electricial supply for Trouble the system is on.

  • Page 22: Testing Your System

    Testing Your Test your system every week. Report any problems immediately to your installation System company. NOTE: Perform system tests during off-peak hours, such as early morning or late evening. 1. If your system has remote monitoring, call the central station to tell them that you are testing your system.

  • Page 23: Section 6: Customizing Your System

    Section 6: Customizing Your System This section describes how to customize your system to suit your needs. Refer to this section for detailed instructions on programming access codes and setting time and date. Programming The master code (code 40) can be used to program system options, arm and dis- Access Codes arm the system and program other access codes.

  • Page 24: Setting The Time And Date

    = 112600). 4. To exit programming, press Turning the If your installer has enabled the door chime feature, your NT9005 will beep when- Door Chime ever designated doors or windows are opened or closed. Your installer has pro- On or Off grammed which doors and windows will activate the door chime.

  • Page 25: Section 7: Fire Safety

    Section 7: Fire Safety Read this section carefully. It contains important information about fire safety. Household Most fires occur in the home. To minimize this danger, we recommend that a Fire Safety household fire safety audit be done and a fire escape plan be created. Audit 1.
  • Page 26 • A good plan emphasizes a quick escape. Do not investigate or attempt to fight the fire, and do not gather belongings or pets as this wastes valuable time. Once outside, do not re-enter the house. Wait for the fire department. •...

  • Page 27: Section 8: Guidelines For Locating Smoke Detectors

    Section 8: Guidelines for Locating Smoke Detectors Research has shown that all hostile fires in homes gen- erate smoke to a greater or lesser extent. Experiments with typical fires in homes indicate that detectable quantities of smoke precede detectable levels of heat in most cases.

  • Page 28: Section 9: Replacing Batteries

    Section 9: Replacing Batteries rom time to time, the batteries in the detectors and other components of your system will need to be changed. If a device has a low battery, your system will display a trouble mes- Checking Trouble Conditions on page 16 sage (see When the batteries in one device need to be replaced, it is suggested that the batteries in all system devices be replaced at the same time.

  • Page 29: Door/Window Contacts

    R e p l a c i n g B at te r i e s Door/Window WLS907T-433 Contacts Insert a small screwdriver into the slot on the side of the sensor. Push the screwdriver in and lift off the cover. Remove the old batteries and install three fresh Eveready Alkaline Ener- gizer AAA batteries.

  • Page 30: Glassbreak Detectors

    Glassbreak WLS912-433 Remove the detector from its mounting plate by pushing the detector in the direction indi- Detectors cated. Install the three Energizer AA batteries, observing the correct polarity, as shown below. WLS912L-433 Remove the detector from its mounting plate by pushing the detector in the direction indi- cated.

  • Page 31: Glossary

    Glossary Access code A 4 or 6-digit code you enter on the keypad to turn your system on or off, or to use other system features. Alarm When a zone is violated (e.g., a smoke detector detects smoke, a motion detector senses movement, a door with a contact is opened), it will trigger an alarm.
  • Page 32 (Use when one or more people will stay on the premises.) Trouble The NT9005 controller continuously checks the system for problems. If the control- ler finds a problem (trouble), it will indicate this at the keypad. See Checking Trouble Conditions on page 16 for a list of possible trouble conditions, and how they are displayed.

  • Page 33: System Information

    System Information Fill out the following information for future reference and store this guide in a safe space. For Service Central Station Information: Account #:_______________________________ Telephone #: ____________________________ Installer Information: Company: _______________________________ Telephone #: ____________________________ ________________________________________ ________________________________________ Access Codes Your Master Code is: _____________________________ Your Supervisor Code #1 is: _______________________ Your Supervisor Code #2 is: _______________________ Additional Access Codes:...

  • Page 34: Zone Information

    Zone Information There are ________ active zones on the system. Zone Protected Area Zone Type Zone Protected Area Zone Type...

  • Page 35: Index

    Index troubles 16 Function buttons 3, 6, 9, 10, Status 6 Chime 20 12, 20 Stay 10 AC power trouble message Cleaning the system 5 System Codes See Access codes how it works 4 Access codes Glassbreak detectors 26 Communication trouble mes- maintenance 5 adding 19 sage 17...

  • Page 36: Warning

    WARNING Please Read Carefully N o te to In s t a ller s Every fire is different in the amount of smoke produced and the rate of burning. This warning contains vital information. As the only individual in contact with sys- Smoke detectors cannot sense all types of fires equally well.

  • Page 37: Fcc Compliance Statement

    Ltd. could void your authority to use this equipment. If the NT9005 equipment causes harm to the telephone network, the telephone company will This equipment has been tested and found to comply with the limits for a Class B digital device, notify you in advance that temporary discontinuance of service may be required.
  • Page 38 NOTES...
  • Page 39 NOTES...
  • Page 40 ©2001 Digital Security Controls Ltd. Toronto • Canada • www.dsc.com Printed in Canada 29034463 R001...
