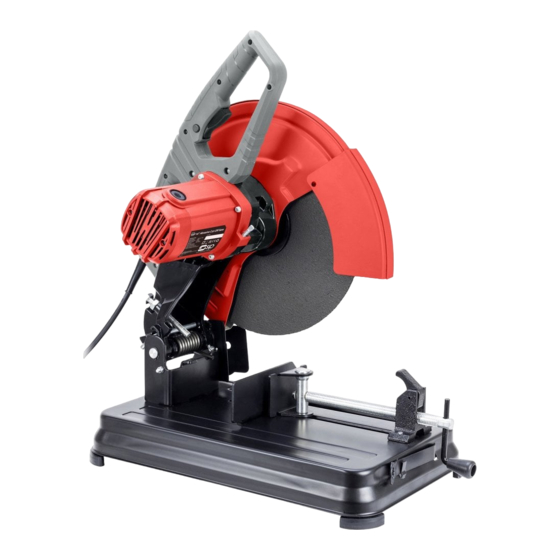

SIP 14" Abrasive
Cut Off Saw
01307
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIP 01307
Summary of Contents for SIP 01307
- Page 1 SIP 14” Abrasive SIP Industrial Products Limited Gelders Hall Road Shepshed Cut Off Saw Loughborough Leicestershire LE12 9NH 01307 United Kingdom For help or advice please contact your distributor, or sip directly on: Tel.: 01509 500400 Email:sales@sip-group.com or technical@sip-group.com www.sip-group.com...
-
Page 3: Table Of Contents
CONTENTS Page No. Description Safety Instructions Electrical Connections Guarantee Technical Specification Your Saw Operating Instructions Maintenance Wiring Diagram Exploded Drawing Part List UK - Declaration Of Conformity EU - Declaration Of Conformity... -
Page 4: Safety Instructions
Read all these instructions before operating the tool and save this user manual for future reference. SIP recommends that this tool should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us and we will be more than happy to advise you. - Page 5 SAFETY INSTRUCTIONS...cont 6. WEAR THE CORRECT CLOTHING: Do not wear loose clothing, neck-ties, rings, bracelets, or other jewellery, which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair. Roll long sleeves up above the elbow. 7.
- Page 6 SAFETY INSTRUCTIONS...cont 17. USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual for recommended accessories. Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards and will invalidate any warranty you may have. 18. REMOVE ADJUSTING KEYS AND WRENCHES: Form a habit of checking to see that keys and adjusting wrenches are removed from the tool before every use.
- Page 7 SAFETY INSTRUCTIONS...cont Do not modify the abrasive cut off saw to do tasks other than those intended. When sawing always use the vice to hold the material; To avoid injury, the work piece should never be held with the bare hands. ...
- Page 8 SAFETY INSTRUCTIONS...cont When using the saw always ensure the operator as well as those in the area wear ear protection. When using the saw always ensure the operator as well as those in the area wear eye protection. Some wood and wood composites have the potential to be highly toxic;...
-
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: Read these electrical safety instructions thoroughly before connecting the product to the mains supply. This saw is for use with a 230v UK domestic socket and should be grounded/earthed. Make sure that the product is connected to an outlet that has the same configuration as the plug (see Figure 1). - Page 10 ELECTRICAL CONNECTIONS NOTE: Always make sure the mains supply is of the correct voltage and the correct fuse protection is used. In the event of replacing the fuse always replace the fuse with the same value as the original. WARNING: Improper use of extension leads may cause inefficient operation of the item which can result in overheating and motor damage.
-
Page 11: Guarantee
GUARANTEE This item is covered by a 24 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the item outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs. -
Page 12: Technical Specification
TECHNICAL SPECIFICATION Model No. 01307 Input Voltage 220-240V / 50Hz Power 2300W Speed 3800rpm Disc Size 355 mm Bore Size 25.4 mm Round Tube @0° 130 mm Round Tube @45° 110 mm Square Box Section @0° 120 mm x 120 mm Square Box Section @45°... -
Page 13: Your Saw
YOUR SAW Item No Description Item No Description Moving / Adjustable Vice Clamp Moving Guard Fixed Vice Clamp Abrasive Disc Motor Spark Deflector Vice Clamp Nut Trigger Switch Handle Vice Handle... -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS NOTE: If any parts are missing, please contact SIP Customer Service. TEL: 01509 500400 EMAIL: customerservice@sip-group.com Danger / Caution: Before starting the machine, check that all covers and safety equipment are correctly fitted and tight. Raising the Cutting Head To raise the head prior to cutting, pull the head down, pull and turn the head lock pin and the head will raise. - Page 15 OPERATING INSTRUCTIONS Making a Cut Caution: The abrasive disc bolt must be tight at all times, check before each use and at regular intervals during operation. The vice jaw can be set in different positions depending on the size of material to be cut, the vice can be adjusted to 45˚...
-
Page 16: Maintenance
MAINTENANCE Note: Disconnect the abrasive cut off saw from the mains supply before changing ac- cessories, servicing or performing maintenance. Replace or repair damaged parts. Use genuine parts only. Non-authorized parts may be dangerous and will invalidate the warranty. General Inspection Cleaning and maintenance of this saw is mainly common sense some points for guidance are as follows: •... - Page 17 MAINTENANCE Flange Lock Fig.5 Fig.4 Note: The abrasive disc must be rated above 3800rpm and be within the expiry date, any disc rated below this or expired could shatter and possibly cause injury to the operator or people nearby. Replacing The Brushes •...
-
Page 18: Wiring Diagram
WIRING DIAGRAM... -
Page 19: Exploded Drawing
EXPLODED DRAWING... -
Page 20: Part List
PART LIST Description Description Self Tapping Screw Motor Gear (left-handed) Motor Rear Cover Front cover Screw Bearing Brush Cavity Output Shaft Carbon Brush Shaft key Retaining Cap Saw Guard Screw Locknut Motor Housing Rubber Screw Circular Adjustment MovingGuard Vulcanized Fibre Washer Screw Bearing Screw... - Page 21 NOTES...
-
Page 22: Uk - Declaration Of Conformity
As the manufacturer within the UK, England, Scotland & Wales, declare that the SIP 14” Abrasive Cut Off Saw - SIP Part No. 01307 Conforms to the requirements of the following regulation(s), as indicated. Supply of Machinery (Safety) Regulations 2008... -
Page 23: Eu - Declaration Of Conformity
Republic of Ireland As the manufacturer’s authorised representative within the EC declare that the SIP 14” Abrasive Cut Off Saw - SIP Part No. 01307 Conforms to the requirements of the following directive(s), as indicated. 2006/42/EC - Machinery Directive 2014/30/EU - EMC Directive... - Page 24 FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP Please dispose of packaging for the product in a DIRECTLY ON: responsible manner. It is suitable for recycling. Help TEL: 01509 500400 to protect the environment, take the packaging to EMAIL: sales@sip-group.com or...
