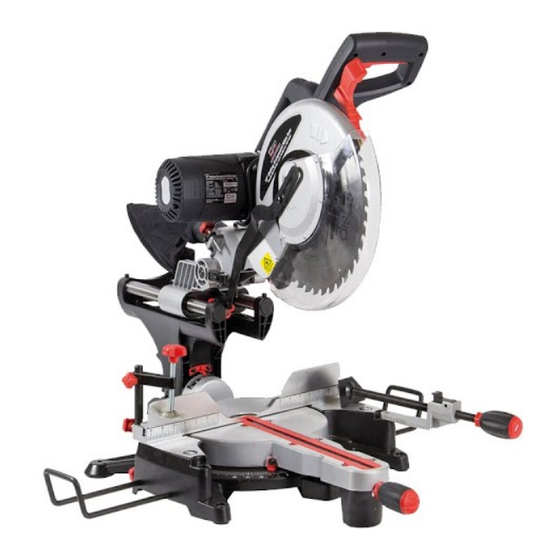

12" Compound Sliding Mitre Saw
Double Bevel
Please read and fully understand the instructions in this manual
before operation. Keep this manual safe for future reference.
01504
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 01504 and is the answer not in the manual?

Questions and answers

Related Manuals for SIP 01504

Summary of Contents for SIP 01504

  • Page 1 This will allow the recycling of raw materials and help protect the envi- ronment. FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP DIRECTLY ON: 01504 TEL: 01509500400 EMAIL: sales@sip-group.com or technical@sip-group.com www.sip-group.com...

  • Page 2: Eu Declaration Of Conformity

    As the manufacturer within the UK, England, Scotland & Wales, declare that the 12” Compound Sliding Mitre Saw - SIP Part No. 01504 12" Compound Sliding Mitre Saw - SIP Part. No. 01504 Conforms to the requirements of the following directive(s), as indicated.

  • Page 3: General Inspection

    MAINTENANCE….cont CONTENTS GENERAL INSPECTION Cleaning and maintenance of this saw is mainly common sense some points for guidance are as follows:  Page No. Description Regularly check that all the fixing screws are tight, particularly the outer flange. They may vibrate loose over time. Safety Symbols Used Throughout This Manual ...

  • Page 4: Safety Symbols Used Throughout This Manual

     With the blade guard held in place; remove the blade guard screw. SIP recommends that this tool should not be modified or used for any application other  Slide the black plate up to reveal the blade retaining bolt and flange.

  • Page 5: Maintenance

    MAINTENANCE SAFETY INSTRUCTIONS….cont STORE TOOLS SAFELY WHEN THEY ARE NOT IN USE: All tools should be stored in a dry, Danger: Always ensure that the saw is turned off and that the plug is disconnect- locked cupboard wherever possible and out of the reach of children. ed from the mains supply before carrying out any adjustments, repairs or mainte- WEAR THE CORRECT CLOTHING: Do not wear loose clothing, neckties, rings, bracelets, or nance.
  • Page 6 SAFETY INSTRUCTIONS….cont OPERATING INSTRUCTIONS….cont REMOVE ADJUSTING KEYS AND WRENCHES: Form a habit of checking to see that keys Make a cut as explained in the main instruction manual then raise the main saw head and adjusting wrenches are removed from the tool before every use. above the workpiece.

  • Page 7: Using The Depth Stop

    OPERATING INSTRUCTIONS….cont SAFETY INSTRUCTIONS….cont  Do not use the saw until the table is clear of all tools, wood scraps, etc., except for  Tighten the mitre lock (12) to hold the desired angle. the workpiece. Small debris or loose pieces of wood or other objects that contact the revolving blade can be thrown with high speed.

  • Page 8: Making A Bevel Cut

    SAFETY INSTRUCTIONS….cont OPERATING INSTRUCTIONS….cont  Ensure that the table base is properly secured so it will not move during operation.  Turn on the laser by pressing the laser On/Off switch (24).  Make sure that all keys and wrenches are removed before switching on the saw. ...

  • Page 9: Cross-Cutting (With Slide Action)

    OPERATING INSTRUCTIONS….cont SAFETY INSTRUCTIONS….cont at the operator. Note: It is possible to remove the clamp assembly (18) by loosening the  Always remember to switch off the laser on / off switch (2) after finishing a job, only clamp assembly lock and moving it to the other side of the table. Make turn the laser beam on when the workpiece is on the mitre saw table.

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS OPERATING INSTRUCTIONS Part number 01504 Warning: Do not stare into the laser beam as this is dangerous and will damage your eyes. Input voltage 230V ~ 50hz Power 2000 W  Do not stare directly at the laser beam, never aim the beam at any person or an...

  • Page 11: Electrical Connection

    GETTING TO KNOW YOUR SAW….cont ELECTRICAL CONNECTION This mitre saw is double insulated. This means the operator is separated from the tool's electrical system by two complete sets of electrical insula- tion. This saw is fitted with a standard UK type 230v ~ plug. Before using the tool inspect the cable and plug to ensure that neither are damaged.

  • Page 12: Getting To Know Your Saw

    GUARANTEE GETTING TO KNOW YOUR SAW This SIP 12” double bevel saw is covered by a 12 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to mis- use or operating the saw outside the scope of this manual - any claims deemed to...
