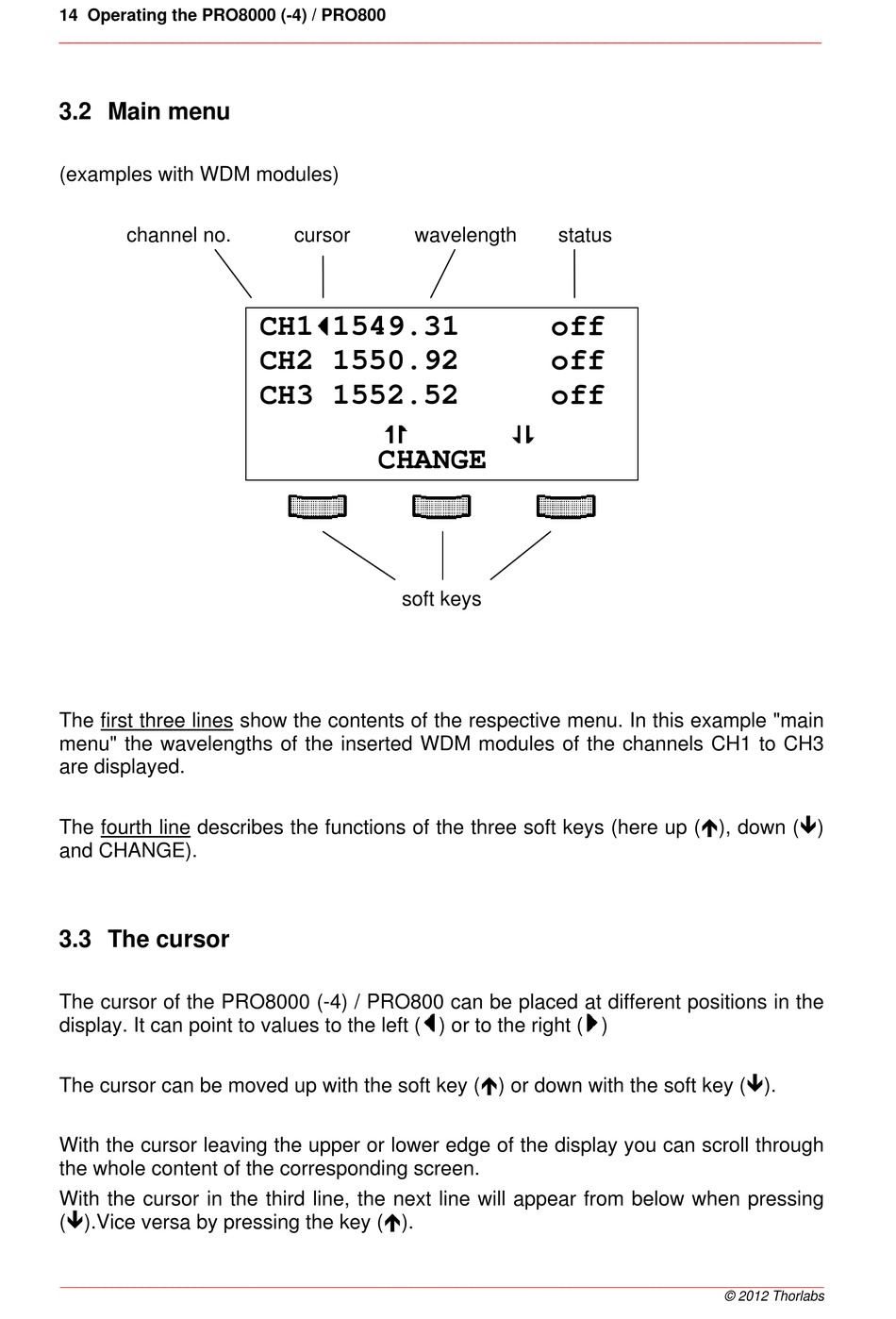

3.2 Main menu

(examples with WDM modules)
channel no.
The first three lines show the contents of the respective menu. In this example "main
menu" the wavelengths of the inserted WDM modules of the channels CH1 to CH3
are displayed.
The fourth line describes the functions of the three soft keys (here up (), down ()
and CHANGE).

3.3 The cursor

The cursor of the PRO8000 (-4) / PRO800 can be placed at different positions in the
display. It can point to values to the left ( ) or to the right ( )
The cursor can be moved up with the soft key () or down with the soft key ().
With the cursor leaving the upper or lower edge of the display you can scroll through
the whole content of the corresponding screen.
With the cursor in the third line, the next line will appear from below when pressing
().Vice versa by pressing the key ().
