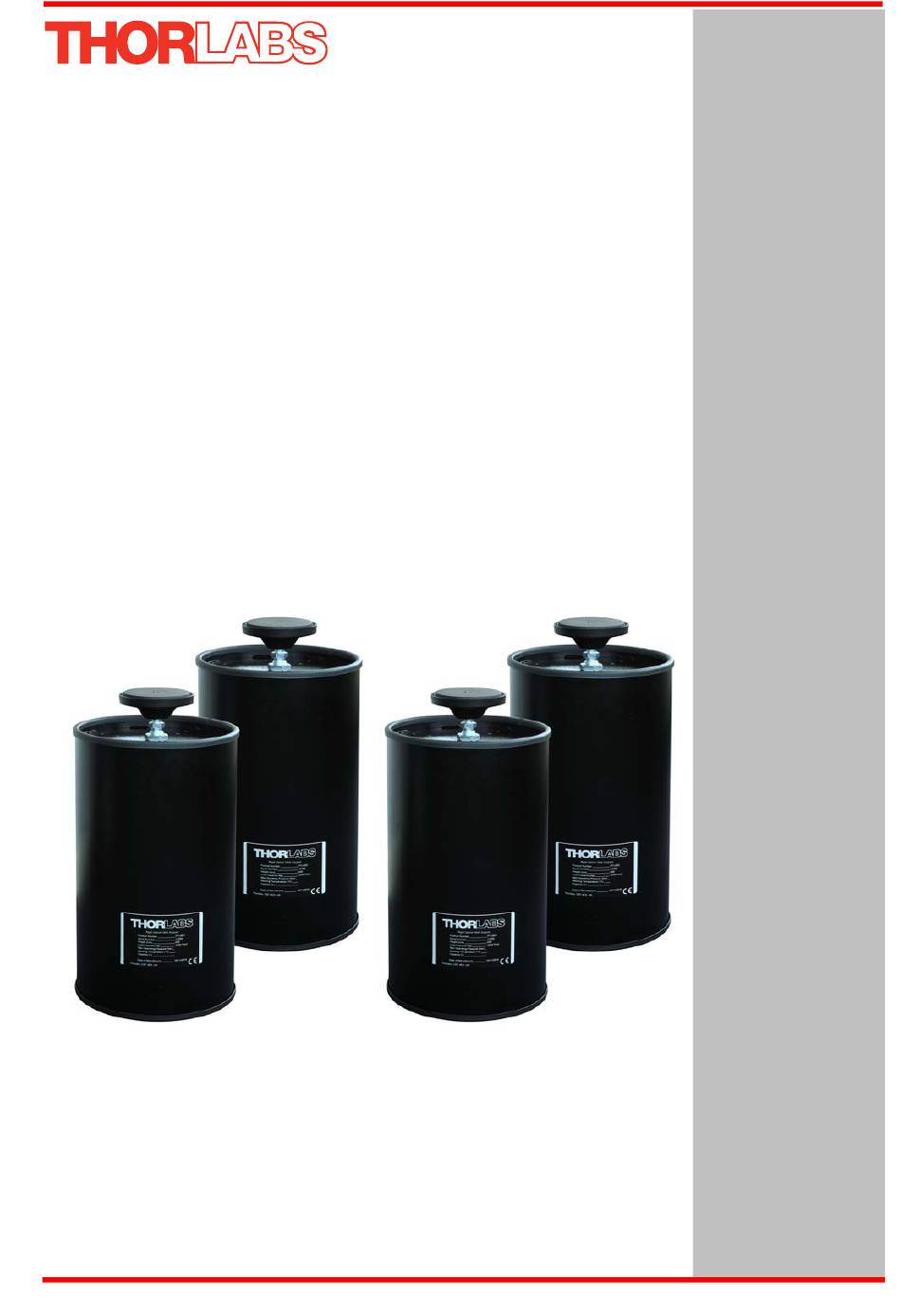

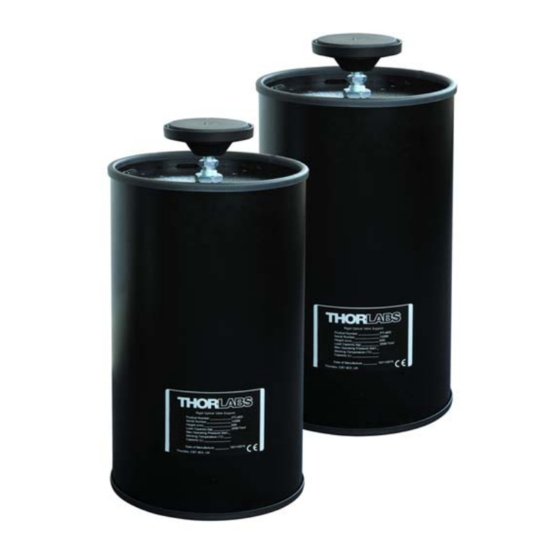

- Page 1 PTL701, PTL802, PTL803 Rigid, Non-isolating Optical Table Supports User Guide Original Instructions...
-
Page 2: Table Of Contents
3.1 General Description ............................4 3.2 Parts List ................................4 3.2.1 Preparation ....................................4 3.3 Installation ................................5 3.3.1 Mounting the Table on the Supports .............................5 3.4 Set-up .................................6 Chapter 4 Joined Systems ...........................7 Chapter 5 Thorlabs Worldwide Contacts ......................9 HA0320T Rev D Nov 2016... -
Page 3: Chapter 2 Safety
Chapter 1 Safety 1.1 Safety Information For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself. The following safety symbols may be used throughout the handbook and on the equipment itself. -
Page 4: Chapter 3 Installation
+15 mm, -8 mm (+0.59", -0.31") range. A choice of height allows any of the standard Thorlabs table tops to be mounted at a nominal working height of 910mm (36 in.) above the floor. -
Page 5: Installation
2.3 Installation Note During item 1, two people, one on each side, should be employed in positioning the supports. 1) Position the supports in approximately the correct position for the table – see Fig. 2.2 for dimensions. 5.0 mm 0.55 x L Fig. -
Page 6: Set-Up
Chapter 2 2.4 Set-up 1) Using the 24 mm wrench supplied, adjust the pad on top of one of the supports to the required height. 2) Repeat item 1) for the support diagonally opposite. 3) Repeat items (1) and (2) for the remaining two supports. 4) Using a bubble level or other suitable device, check that the work surface is level. -
Page 7: Chapter 4 Joined Systems
Chapter 3 Joined Systems The location and pneumatic connections for a joined system will depend on the configuration of the system. Some typical examples are shown below. Please contact your local tech support office for more details. 3.1 Smaller Systems Although single tables require four isolators, smaller joined systems may require only six rather than eight isolators. - Page 8 Chapter 3 3.2 Larger Systems Depending on the configuration of the joiner, larger systems may require eight or more isolators as shown below. Fig. 3.2 Isolator posiitons and pneumatic connections - larger systems HA0320T Rev D Nov 2016...
-
Page 9: Chapter 5 Thorlabs Worldwide Contacts
Rigid, Non-isolating Optical Table Supports Chapter 4 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. - Page 10 www.thorlabs.com...
