Lumens DC-F20 Quick Installation Manual

DC-F20 Quick Installation Guide
Important
Please activate your warranty at
www.MyLumens.com/support
Please visit our website
version of Software, Multilingual User Manual and Quick Start Guide.
1. Package Contents

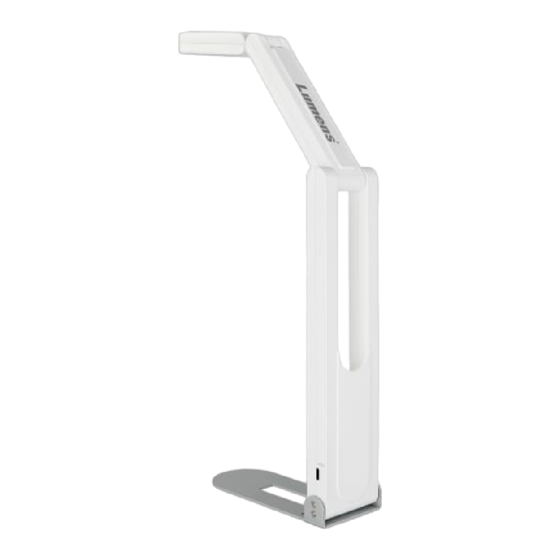

Camera
Quick Installation Guide
2. Product Overview
Auto Lamp
Tune Button
Button
MIC LED
Type C Port
5100464-50 MAR. 2022
www.MyLumens.com/reg
to download
USB 2.0 Cable(1.8m)
(Type-C to Type-A)
180°
180°
USB
* Please only operate in the positions illustrated.
Improper use may damage the device.
3. Installation and Connections
1 Connecting to a computer
latest
2 Connecting to an Interactive Whiteboard (IWB)
4. Getting Started
1.Installing Ladibug software.
2. After installing the software,
double-click the icon to open the
software, view images and
DC-F20.
*
The Power Frequency setting page will
display during the first use. Please
the settings following the
170°
screen.
4. Adjust the support arm and camera
head to the required positions.
5. Press
6. You are ready to teach/present.
www.MyLumens.com
USB Cable
USB Cable
Computer
For Windows:
3. Place an object to be displayed under
the camera.
control *
DC-F20 camera coverage is 420 mm x 297 mm.
(Equivalent to A3 paper size)
complete
instructions on the
button to optimize the image.
Copyright © Lumens Digital Optics Inc. All rights reserved.
Computer
Projector
HDMI Cable
USB Cable
IWB
For MAC:
