Summary of Contents for Lumens DC145
- Page 1 DC145 Document Camera User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.Mylumens.com/goto.htm...
-
Page 2: Table Of Contents
Installation and setup................ 10 Connecting to a speaker and projector or monitor simultaneously .. 10 Connecting to a computer and use Lumens™ software ....10 Connecting to a computer and projector or monitor simultaneously 11 Connect to a PC and read the SD card ..........11 Connecting to an Interactive Whiteboard (IWB) ....... - Page 3 I would like to zoom in/out images ........... 22 I would like to use the auto focus ............. 22 I would like to adjust the brightness ..........22 I would like to turn on/off the lamp ............ 22 I would like to freeze images ............22 7.10 I would like to rotate the image ............
-
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Document Camera: 1. Do not place Light Engine in tilted position. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. -
Page 6: Precautions
Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This Document Camera has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet. Do not try to disable this safety feature. -
Page 7: Chapter 2 Package Contents
Chapter 2 Package Contents DC145 Quick Start Guide 4-Steps Card (For download of other language versions, please visit Lumens website) VGA cable USB cable Power cord Appearance may vary depending on country/region Accessory Pouch English... -
Page 8: Chapter 3 Product Overview

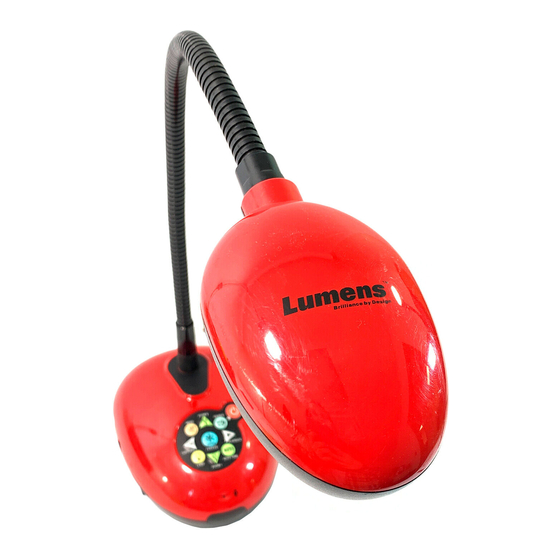

Chapter 3 Product Overview 1. Gooseneck 2. Auto focus 3. Control panel 4. LED indicator 5. Built-in microphone 6. Lens 7. LED lamp 8. DIP switch setting (Bottom) English... -
Page 9: Relative Position Of The Presenter And Document
Relative position of the presenter and document English... -
Page 10: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Earphone or Projector or monitor speaker SD Card Computer or TV Computer English... -
Page 11: Installation And Setup
Power cord Earphone or speaker Monitor or projector AC outlet 4.4 Connecting to a computer and use Lumens™ software USB cable Projector Power cord VGA cable AC outlet Computer Driver and software can be downloaded from Lumens website English... -
Page 12: Connecting To A Computer And Projector Or Monitor Simultaneously
4.5 Connecting to a computer and projector or monitor simultaneously VGA cable VGA cable Power cord Monitor or projector AC outlet Computer Press [SOURCE] button to switch the image source. 4.6 Connect to a PC and read the SD card USB cable SD Card Power cord... -
Page 13: Connecting To An Interactive Whiteboard (Iwb)
Power cord VGA cable USB cable AC outlet Computer 4.8 Connecting to a computer with RS232 EXTENDER cable Power cord RS232 cable AC outlet Computer After connecting to the RS232 cable, you can use RS232 commands to control DC145. English... -
Page 14: Connecting To A Tv
<Note> Only the live image can be displayed in C-Video output mode. 4.10 Installing application software The application software installed on the computer enables you to: Control the DC145. Capture and record images. Annotate the image, highlight important details and save it. -
Page 15: Chapter 5 Start Using
Chapter 5 Start Using 1. Place an object to be displayed under the camera. 2. Turn on Power 3. Adjust the gooseneck and lens to the appropriate positions. 4. Press [AUTO TUNE] button to optimize the image. You are ready to teach/present. ... -
Page 16: Chapter 6 Control Panel And Setting Menu
Chapter 6 Control Panel and Setting Menu 6.1 Function Descriptions of Control Panel Button <Remark> The below functions are listed alphabetically Name Function Descriptions Operation Turn on and off the Document Camera. Control panel Move up, down, left or right to select the ,,,... -
Page 17: Setting Menu
6.2 Setting menu 6.2.1 Main menu <Remark> Press [MENU] to activate the setting menu. Auto Tune Slide Show Automatically adjust the image Show the photos or videos to have the best brightness and stored in the SD card (priority) or focusing performance. - Page 18 6.2.2 Setting menu Level Level Level Major Adjustment Function Descriptions Minor Items Items Values Single Capture/ Use the left and right arrow keys Capture Mode Time Lapse/Record/ to select the capture mode. 1 hr 2 hr Use the left and right arrow keys 4 hr to select the capture time.
- Page 19 Regardless of outside environment, the machine will Auto Exposure On/Off adjust the brightness to the optimal condition. Use the left and right arrow keys to select. Regardless of outside light or Auto White color, the machine will adjust the Enter Balance color to the optimal condition;...
- Page 20 Use the left and right arrow keys to turn on/off the auto erase function. When [On] is selected, Auto Erase On/Off the stored images will automatically be deleted when the system is turned off. Read the value of the current image mode.
- Page 21 6.2.4 Spotlight mode setting menu Level Level Level Major Adjustment Function Descriptions Minor Items Items Values Press [ENTER] to return to live Live Enter image. Use the left and right arrow keys Shape Ellipse/Rectangle to select the shape of the spotlight zone.
-
Page 22: Chapter 7 Descriptions Of Major Functions
1. Press [AUTO TUNE] for the best brightness and focusing performance. I would like to switch image sources Live image is the default image source. Press [SOURCE] to have DC145 switch among the following images sources: 1. Live images (default). 2. Computer. I would like to switch the image mode 1 Press [MENU] to activate the setting menu. -
Page 23: I Would Like To Zoom In/Out Images
I would like to zoom in/out images 1. Press [Zoom +] to zoom in the image. 2. Press [Zoom -] to zoom out the image. I would like to use the auto focus 1. Press the [FOCUS] AF button on the right side of the lens. I would like to adjust the brightness 1. -
Page 24: I Would Like To Record Images
[Disable]. If it is set to [Continuous], you can capture images continuously. Press [Capture] to start capturing continuously, or press [Capture] again to exit. To change the quality of captured images, please refer to 7.11.2 Setting the quality of captured images. -
Page 25: I Would Like To View Captured/Recorded Images
2. Press [CAPTURE] again to stop recording. 7.12.2 Setting the quality of captured images 1. Press [MENU] to activate the setting menu. 2. Press [], [], [], or [] to select [Setting]. 3. Press [ENTER] to activate. 4. Press [] or [] to the [Capture Settings] menu. 5. -
Page 26: I Would Like To Delete The Captured/Recorded Images
7.14 I would like to delete the captured/recorded images 1. Turn off the Document Camera. Connect to a computer 2. Open [My Computer], and open [Removable Disc] to delete the files 7.15 I would like to automatically delete the stored images whenever it is turned off (Auto Erase) 1. -
Page 27: I Would Like To Play The Slides (Slide Show)
2. Press [] or [] to select the item to be modified [Transparency/Step/V Size/H Size]. (For details, please refer to 6.2 Setting Menu.) 3. Press [] or [] to perform the modification. 4. Press [MENU] to exit the image OSD menu and return to the mask mode. -
Page 28: I Would Like To Compare Images (Compare Live Images With Stored Image Files (Pip))
7.19 I would like to compare images (compare live images with stored image files (PIP)) This function will compare and contrast a live image with a stored image. Live image Stored image 1. Press [MENU] to activate the setting menu. 2. -
Page 29: I Would Like To Resume The Factory Default Setting (Factory Reset)
2.5. Press [] to [Projector Type]. 2.6. Press [] or [] to select [LCD/DLP]. 2.7. Press [MENU] to exit. 7.21 I would like to resume the factory default setting (Factory Reset) 7.21.1 Use function menu 1. Press [MENU] to activate the setting menu. 2. -
Page 30: I Would Like To Use A Sd Card
I would like to use a SD Card 1. After the SD Card is inserted, the [Copy To SD Card] dialog box will be displayed for you to select to copy files in DC145 to SD Card. Press [] or [] to select. - Page 31 2. Complete by clicking [Capture], then clicking [Get Picture]. 7.24.3 I would like to set the DC145 as a PC Camera <Remark> For Windows XP, please set by system name (USB video device) Open [My Computer] and click [Lumens Document Camera] to open a live image.
-
Page 32: Chapter 8 Dip Switch Setting
Chapter 8 DIP switch setting <Note> You should unplug and reconnect the power cord, and then restart the DC145 for all DIP Switch Settings to take effect. 8.1 Connecting to a projector or monitor 8.1.1 XGA output (default values): 8.1.2 SXGA output 8.1.3 WXGA output... -
Page 33: Connecting To A Tv
8.1.4 1080P output 8.2 Connecting to a TV 8.2.1 NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico 8.2.2 PAL: Countries/regions not listed above <Remark> Once C-VIDEO is enabled, VGA OUT is not supported. English... -
Page 34: Chapter 9 Troubleshooting
Chapter 9 Troubleshooting This chapter describes problems you may encounter while using DC145. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center. - Page 35 Check to see if the Firmware version of applicable to the your machine is up-to-date. machine Please go to Lumens official website to check whether the latest version is available for update. www.Mylumens.com/goto.htm The steps to check the FW version are as below: 2.1 Press [MENU] to activate the setting menu.
