Summary of Contents for Lumens DC211
- Page 1 DC211 Visual Presenter User Manual [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.lumens.com.tw/goto.htm English - 0...
-
Page 2: Table Of Contents
Mounting the DC211 at Desktop ............. 12 Connecting to a Projector or Monitor ..........12 Connecting to a Computer and Use Lumens Software....12 Connecting to an Interactive Whiteboard (IWB)......13 Connecting to a Projector, TV, and Monitor at the Same Time ..13 Connecting to a Computer with RS232........... - Page 3 Connecting to a TV................18 Chapter 7 Control Panel/Remote Control and Setting Menu....19 Functions of control panel and remote control........ 19 Setting Menu ................... 20 Chapter 8 Descriptions of major functions ..........22 I would like to switch image sources ..........22 I would like to make text clearer and photos more colorful .....
-
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the Visual Presenter: 1. Do not place visual presenter in tilted position. 2. Do not place the Visual Presenter on an unstable trolley, stand or table. 3. Do not use the Visual Presenter near water or source of heat. 4. -
Page 6: Safety Precautions
Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This visual presenter has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet. Do not try to disable this safety feature. If the Visual Presenter will not be used for an extended time, unplug it from the power socket. -
Page 7: Revisions
Revisions English - 6... -
Page 8: Chapter 2 Package Content
Chapter 2 Package Content DC211 Quick Start Guide User Manual (For download of other language (For download of other versions, please visit Lumens language versions, please visit website) Lumens website) VESA Base Remote Control Installation Guide Remote Control Holder VGA Cable... -

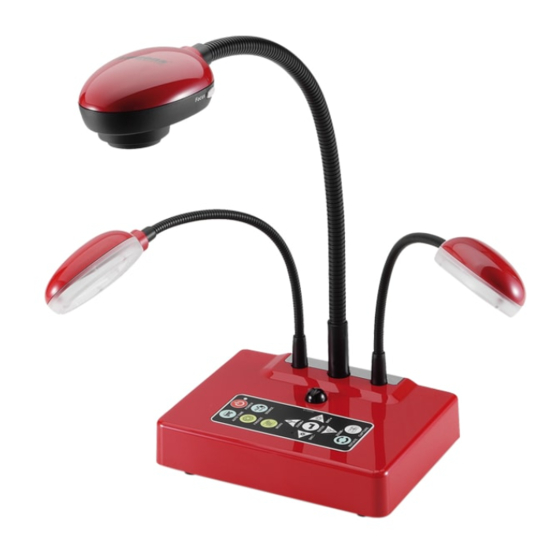

Page 9: Chapter 3 Product Overview
Chapter 3 Product Overview 8. Gooseneck 7. AF button 4. LED indicator 1. Lamp 3. Control panel 2. Remote sensor 5. Lens 6. DIP Switch (Bottom) English - 8... -
Page 10: Relative Position Of The Presenter And Document
3.1 Relative position of the presenter and document DC211 Presenter Document 3.2 Recommend distance * About 400 mm distance between camera and the desktop is recommended. 400 mm English - 9... -
Page 11: Incorrect Use
3.3 Incorrect Use English - 10... -
Page 12: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System Diagram Projector Or Monitor Monitor English - 11... -
Page 13: Mounting The Dc211 At Desktop
2. Please refer to the Base Installation Guide for installation instructions for all parts. 4.3 Connecting to a Projector or Monitor 4.4 Connecting to a Computer and Use Lumens Software Drivers and software can be downloaded from the Lumens website. English - 12... -
Page 14: Connecting To An Interactive Whiteboard (Iwb)
4.5 Connecting to an Interactive Whiteboard (IWB) It can be interoperated with major IWB models. The user manual can be downloaded from Lumens website. 4.6 Connecting to a Projector, TV, and Monitor at the Same Time Press [SOURCE] button to switch the image source. -
Page 15: Connecting To A Computer With Rs232
4.7 Connecting to a Computer with RS232 After connecting to the RS232 cable, you can use RS232 commands. 4.8 Connecting to a TV NTSC: U.S.A., Canada, Mexico, Panama, Chile, Japan, Taiwan, Korea, and Philippines. PAL: Countries/regions not listed above. English - 14... -
Page 16: Installing Application Software
<Note>: DIP switch settings will not be available until the DC211 is restarted. <Note>: In C-Video Mode, some buttons on the machine panel and remote control are not working. <Note>: It doesn’t support C-Video and VGA simultaneously. Once C-Video is on, VGA OUT is not supported. -
Page 17: Chapter 5 Start Using
When using the remote control, aim at the receptor on the DC211, and press the power button. Once DC211 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED is not... -
Page 18: Chapter 6 Dip Switch Settings
Chapter 6 DIP Switch Settings <Note>: You must re-start DC211 for DIP switching configuration to take effective. 6.1 Connecting to a Projector or Monitor 6.1.1 SXGA output (default values): 6.1.2 WXGA output 6.1.3 XGA output 6.1.4 Special mode English - 17... -
Page 19: Connecting To A Tv
6.2 Connecting to a TV 6.2.1 NTSC Settings: U.S.A., Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico 6.2.2 PAL Settings: Countries/regions not listed above <Remark>: It doesn’t support C-Video and VGA simultaneously. Once C-Video is on, VGA OUT is not supported. English - 18... -
Page 20: Chapter 7 Control Panel/Remote Control And Setting Menu
Chapter 7 Control Panel/Remote Control and Setting Menu 7.1 Functions of control panel and remote control <Remark>: The functions below are listed alphabetically Function Descriptions Operation NAME Turn on and off the visual presenter. Remote control/ Control panel Move up, down, left or right to select the Remote control/ , , , needed function. -
Page 21: Setting Menu
7.2 Setting Menu <Remark>: Press [Menu] on the remote control or control panel to enter the Setting Menu; the bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Use the left and right arrow keys Display... - Page 22 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Camera/Storage Transfer Device Setting Lamp ON/OFF Turn on/off the lamp Auto Exposure is on ON/OFF Execute Auto White Balance Eenter Set up Night Vision or cancel Night vision ON/OFF Night Vision...
-
Page 23: Chapter 8 Descriptions Of Major Functions
Chapter 8 Descriptions of major functions 8.1 I would like to switch image sources The default of image source is Live Image. Press [SOURCE] on the remote control or the control panel to switch to Live Image (Default) and computer in turns. 8.2 I would like to make text clearer and photos more colorful Photo (Photo mode) is selected by default in the [Photo/Text] mode. -
Page 24: I Would Like To Use The Auto Focus
8.4 I would like to use the auto focus 1. Press the AF button on the camera head of main unit. 8.5 I would like to adjust the brightness If you use the remote control or the control panel: 1. Press [BRT +] to make it brighter. 2. -
Page 25: I Would Like To Delete The Captured Images
2. Press [ ] or [ ] or [ ] or [ ] to select the thumbnail you want you browse. 3. Press [ENTER] for the full-screen display of the image. 4. Press [ ] or [ ] to browse the previous/next image. 5. -
Page 26: I Would Like To Pan The Live Image (Pan)
8.13 I would like to pan the live image (PAN) When using the remote control: 1. Press [PAN] to enter the image pan mode. 2. Press [ ] or [ ] or [ ] or [ ] to move and view the partial enlarged images. - Page 27 8.14.3 Activating/Pausing/Stopping the slide show <Note>: Images over 8 MB, cannot be played. Whilst playing, the [Rotate] function can be activated to rotate the images. Remote control: 1. Press [SLIDE SHOW] to start playing. 2. Press [ENTER] to pause playing. 3.
-
Page 28: I Would Like To Compare Images (Compare Live Images With Captured Images (Pbp))
8.15 I would like to compare images (compare live images with captured images (PBP)) This function will compare and contrast a live image with a captured image. Captured image Live image Remote control: 1. Press [PBP] to enter the PBP (Picture by Picture) photo selection screen. -
Page 29: I Would Like To Resume The Factory Default Settings
8.16 I would like to resume the factory default settings (Factory Reset) 1. Press [MENU] on the remote control or control panel to enter the Setting Menu. 2. Press [ ] or [ ] to access the [Advanced] menu. 3. Press [ ] to select [Factory Reset]. 4. - Page 30 8.17.2 I would like to insert a photo in MS-Word 1. Click [Insert/Image/From Scanner or Camera] in MS-Word. 2. Select [Visual Presenter V2] and click [Custom Insert]. 3. Click [Get Picture]. It will capture the photo of live image. English - 29...
- Page 31 8.17.3 I would like to change the setting of the DC211 and then capture a photo in MS-Word 1. Click [Insert/Image/From Scanner or Camera] in MS-Word. 2. Select [Visual Presenter V2 TWAIN] and click [Custom Insert]. 3. A window showing a live image (see below) will be displayed.
- Page 32 <Remark>: For Windows Office 2003 or later versions, please use the function with OneNote. 8.17.4 I would like to set the DC211 as a webcam for Skype The DC211 can be used as a webcam for teleconferencing software such as Skype and MSN. With Skype as an example, operating instructions are provided below: 1.
- Page 33 Start calling your contact. When both parties are connected, Skype will display the video screen. 8.17.5 I would like to set the DC211 as a PC Camera Open [My Computer] and click [Visual Presenter V2] to open a live image.
-
Page 34: Chapter 9 Connecting To A Microscope
3.1.4. Press [ ] or [ ] to select [Microscope]. 4 If the image is not clear. 4.1. Please adjust the focus of microscope. 4.2. Press the [FOCUS] button on the DC211 camera head of main unit to activate the auto focus. English - 33... -
Page 35: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using DC211. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
