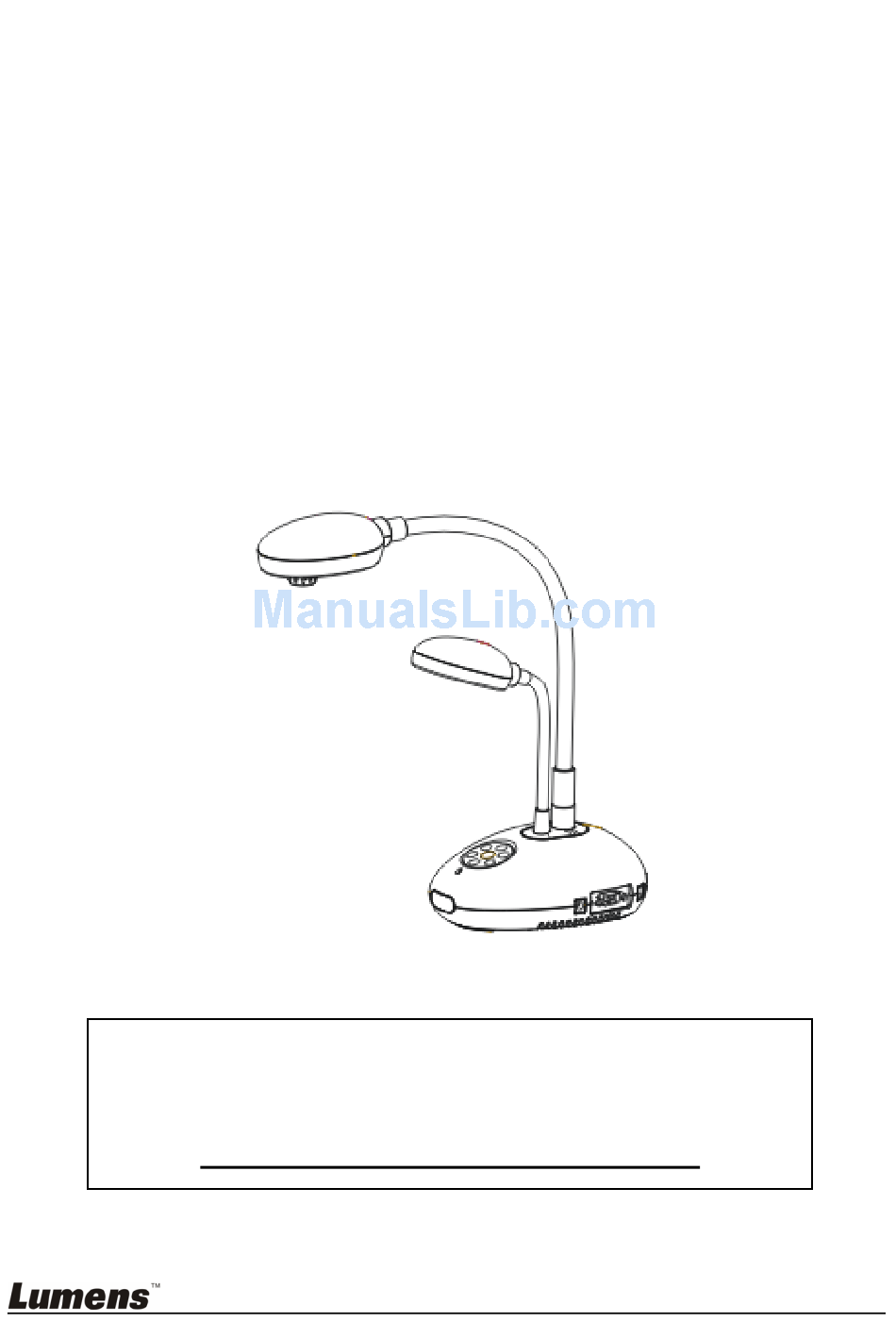

- Page 1 DC166 Visual Presenter User Manual [Important] To download quick start guide, multilingual manuals, software, and drivers, please visit Lumens website at http://www.lumens.com.tw/goto.htm English...
-
Page 2: Table Of Contents
Mounting the DC166 at Desktop ............11 Connecting to a Projector or Monitor..........11 Connecting to a Computer and Use Lumens Software ....11 Connecting to an Interactive Whiteboard (IWB) ....... 12 Connecting to a Projector and TV at the Same Time ....... 12 Connecting to a Computer with RS232 .......... -
Page 3: English
Functions of Control Panel and Remote Control Buttons ....18 On-screen Menu ................19 Chapter 8 Descriptions of Major Functions ..........22 Switching Image Sources ..............22 Making Text Clearer and Photos More Colorful ....... 22 Zoom in /out From an Image ............22 Using Auto Focus ................ -
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the visual presenter: Do not place the visual presenter in tilted position. Do not place the visual presenter on an unstable trolley, stand or table. Do not use the visual presenter near water or source of heat. Use attachments only as recommended. -
Page 6: Safety Precautions
Unplug the visual presenter from the wall outlet and refer serving to licensed service personnel when the following situations happen: If the power cable or plug becomes damaged or frayed. If liquid is spilled into it or the visual presenter has been exposed to rain or water. -
Page 7: En55022 (Ce Radiation) Warning
Note: This equipment has been tested and found to comply with the limits for a Class A or B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. -
Page 8: Chapter 2 Package Contents
Chapter 2 Package Contents DC166 Quick Start Guide VGA Cable VESA Base Remote Control Power Cord Installation Guide Appearance may vary in different countries USB Cable C-Video Cable Presenter Protector Bag Padded Carry Bag Microscope Adapter Accessory Pouch (Optional) -
Page 9: Chapter 3 Product Overview

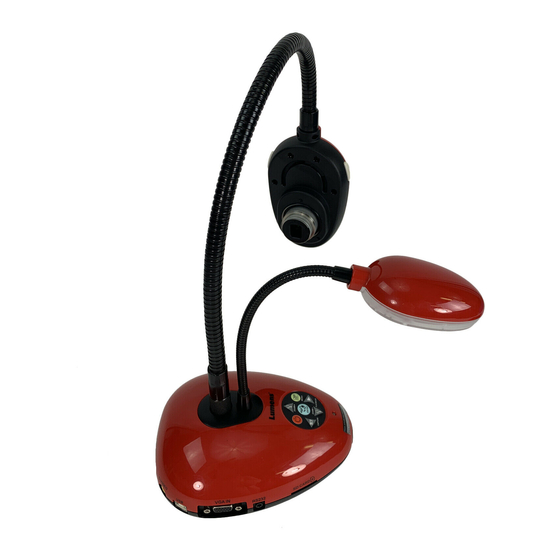

Chapter 3 Product Overview 1. Gooseneck 2. Lamp 3. Control panel 4. LED indicator 5. Remote sensor 6. Lens 7. DIP switch (Bottom) English... -
Page 10: Positioning The Presenter And Document
3.1 Positioning the Presenter and Document 3.2 Correct Usage * About 400mm distance between camera and the desktop is recommended. 400 mm English... -
Page 11: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System Diagram Projector Monitor Television SD card English... -
Page 12: Mounting The Dc166 At Desktop
2. Please refer to the Base Installation Guide for installation instructions for all parts. 4.3 Connecting to a Projector or Monitor 4.4 Connecting to a Computer and Use Lumens Software Drivers and software can be downloaded from the Lumens website. English... -
Page 13: Connecting To An Interactive Whiteboard (Iwb)
4.5 Connecting to an Interactive Whiteboard (IWB) It can be interoperated with major IWB models. The user manual can be downloaded from Lumens website. 4.6 Connecting to a Projector and TV at the Same Time Press [SOURCE] button to switch the image source. -
Page 14: Connecting To A Computer With Rs232
4.7 Connecting to a Computer with RS232 After connecting to the RS232 cable, you can use RS232 commands. 4.8 Connecting to a TV NTSC: U.S.A., Canada, Mexico, Panama, Chile, Japan, Taiwan, Korea, and Philippines. PAL: Countries/regions not listed above. English... -
Page 15: Installing Application Software
<Note>: DIP switch settings will not be available until the DC166 is restarted. <Note>: In C-Video Mode, some buttons on the machine panel and remote control are not working. <Note>: It doesn’t support C-Video and VGA simultaneously. Once C-Video is on, VGA OUT is not supported. -
Page 16: Chapter 5 Start Using
[FOCUS] button to refocus the lens. When using the remote control, aim at the receptor on the DC166, and press the power button. Once DC211 is turned on, the LED on the control panel will flash a few times and stay lit. -
Page 17: Chapter 6 Dip Switch
Chapter 6 DIP Switch <Note>: You must restart the DC166 in order for DIP switch configuration to take effect. 6.1 Connecting to a Projector or Monitor 6.1.1 SXGA output (factory default): WXGA output 6.1.2 6.1.3 XGA output 6.1.4 Special mode... -
Page 18: Connecting To A Tv
6.2 Connecting to a TV 6.2.1 NTSC Settings: U.S.A., Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico 6.2.2 PAL Settings: Countries/regions not listed above <Note> VGA OUT is not supported once C-VIDEO is enabled. English... -
Page 19: Chapter 7 Introduction To Control Panel/Remote Control Buttons And On-Screen Menu
Chapter 7 Introduction to Control Panel/ Remote Control Buttons and On-Screen Menu 7.1 Functions of Control Panel and Remote Control Buttons <Remark> The functions below are listed alphabetically Name Function Descriptions Operation Remote control / Turns the visual presenter on and off. Control panel ,,,... -
Page 20: On-Screen Menu
7.2 On-screen Menu <Note> Press [Menu] on the remote control or control panel to enter the on-screen menu, The bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Major Function Descriptions Sub items Adjustment Values Items Press [ENTER] to automatically Display... - Page 21 Use the left and right arrow keys to select desired image, and then Delete All Yes/No press [ENTER] to confirm the deletion of the photo. Use the left and right arrow keys Format Yes/No to select, and then format the internal memory.
- Page 22 English/繁體中文 Advanced /Deutsch/Français/ Use the left and right arrow keys Language Español/Русский/ to select the preferred language. Nederlands/Suomi/ Polski Use the left and right arrow keys Projector DLP/LCD to turn on/off the noise reduction Type function. Read the value of the current image mode.
-
Page 23: Chapter 8 Descriptions Of Major Functions
Chapter 8 Descriptions of Major Functions 8.1 Switching Image Sources Live image is the default image source. Press [SOURCE] on the remote control or control panel to switch between image sources: 1. Live images (default). 2. PC. 8.2 Making Text Clearer and Photos More Colorful Photo (Photo mode) is selected by default in the [Photo/Text/Gray] mode ... -
Page 24: Turning The Lamp On/Off
brighter. 2. From the Remote Control or Control Panel, press [BRT-] to darken the image. 8.6 Turning the Lamp on/off From the remote control or control panel: 1. Press [MENU] to enter the on-screen menu. 2. Press [] or [] to select [Setting]. 3. -
Page 25: Browsing Captured Images
5. Press [] to find [Capture Time]; Press [] or [] to select time settings. 6. Press [] to find [Capture Interval]; Press [] or [] to select time settings. 7. Press [MENU] to exit. 8.9.2 Capturing and saving images 1. -
Page 26: Automatically Deleting Captured Images When The Device Is Turned Off (Auto Erase)
5. Press [ENTER] to confirm selection. 6. Press [MENU] to exit. 8.12 Automatically Deleting Captured Images When the Device is Turned off (Auto Erase) From the remote control or control panel: 1. Press [MENU] to enter the on-screen menu. 2. Press [] or [] to access the [Storage] menu. 3. -
Page 27: I Would Like To Switch The View Between The Upper And Lower Half Of The Image (Book)
8.14 I would like to switch the view between the upper and lower half of the image (BOOK) 1. Press [BOOK] on the remote control and the upper half of the live image will be displayed . 2. When you press [BOOK] again, the lower half of the live image will be displayed. -
Page 28: Comparing Live Images With Stored Images (Pbp)
8.15.3 Start/Pause/Stop Playing Images <Note> Images over 8MB cannot be played. During playback, the [ROTATE] function can be activated to rotate the images. From the remote control: 1. Press [SLIDE SHOW] to start playback. 2. Press [ENTER] to pause playback. 3. -
Page 29: Restoring Factory Default Settings (Factory Reset)
5. Press [] or [] to move the selected image left or right. 6. Press [ZOOM+/-] to zoom in/out from the live image 7. Press [PBP] to return to the stored image screen. 8. Press [MENU] to exit. From the control panel 1. - Page 30 8.18.1 Inserting a Photo in the MS-Paint Application 1. Click [File > From Scanner or Camera] in the MS-Paint application as shown in the bottom left figure. 2. Click on [Get Picture] to finish, as shown in the top right figure. 8.18.2 Inserting a Photo in a Microsoft Word Document 1.
- Page 31 3. Click [Get Picture] to finish. 8.18.3 Changing the Setting of the DC166 and then Capturing a Photo in Microsoft Word 1. Click [Insert /Image /From Scanner or Camera] in Microsoft Word. 2. Select [Visual Presenter V2 TWAIN] and click [Custom Insert].
- Page 32 6. Press [Cancel] to exit. 8.18.4 Setting up the DC166 as a Webcam for Skype The DC166 can be used as a webcam for instant message (IM) software such as Skype and MSN. Operation with any IM program is similar. In Skype, for example, complete the following steps: 1.
- Page 33 Call your desired contact. When both parties are connected, Skype will display the video screen. English...
- Page 34 8.18.5 Setting up the DC166 as a PC Camera 1. Open My Computer and click on [Visual Presenter V2] to display a live image. 8.18.6 Connecting to an Interactive Whiteboard To connect to an Interactive Whiteboard, go to the Lumens website and download the reference guide for your desired brand.
-
Page 35: Chapter 9 Connecting To A Microscope
3.1.3. Press [] to select among [Mode] modes. 3.1.4. Press [] or [] to select [Microscope]. 4 If the image is fuzzy: 4.1. Adjust the focus of microscope. 4.2. Press the [FOCUS] button on either side of the DC166 lens to activate the auto focus. English... -
Page 36: Chapter 10 Troubleshooting
Check that the power cord is securely connected to the wall socket and the unit. No image output 1. Check the power outlet. from the DC166 2. Check the connection. Refer to Chapter 4 Installation and Connections in this manual.
