- Page 1 DC155 Digital Visualizer Quick Start Guide English...
-
Page 2: Package Content

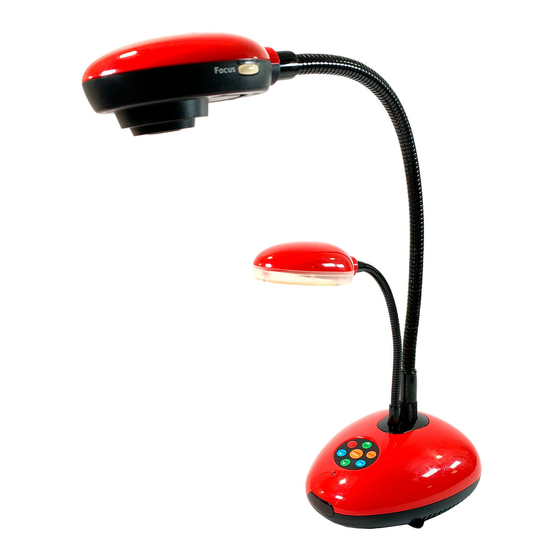

1. Package Content Quick Start Guide & DC155 & Remote Soft Bag (Big, Small) User Manual Power Cord VGA Cable USB Cable C-Video Cable RS232 Adapter DVI Adapter (Optional) 2. Product Overview 1. Auto Focus Gooseneck 2. Lens 4. Lamp 5. - Page 3 3. I/O Connection Connecting VGA out to Monitor or Projector Monitor VAG Out Projector Connecting DVI out to Monitor or Projector DVI Out Monitor Projector Connecting C-Video to TV C-Video DIP Switch (PAL) DIP Switch (NTSC) Notice NTSC Setting: USA、Taiwan、 Panama、Philippine、Canadian、Chile、 【...
- Page 4 【 Notice 】 DVI to VGA adapter (optional) cable must be used. No VGA output once C-Video output is turn on. Connecting USB to Computer Connect to USB port then install the supplied queue program. Please refer to Software user’s manual. Notebook Notice Don’t connect the Digital Visualizer to PC until USB Driver has been...
- Page 5 4. Start to use Turn on the Digital Visualizer Remote Keypad Auto-adjust the optimum image English...
-
Page 6: Auto Focus
５. Major Functions 5.1 Select Input Source The default input source is set as "Digital Visualizer", press 『Source』to switch. Remote Keypad 5.2 Zoom in / out 5.3 Auto Focus Remote Goose-head English... -
Page 7: Brightness Adjustment
5.4 Brightness Adjustment 5.5 Capture & Play Image Capture Live Image or Play the captured image 5.6 OSD Menu Remote Keypad More detail functions of full Control Menu (OSD Menu), please read the user manual.. English...
