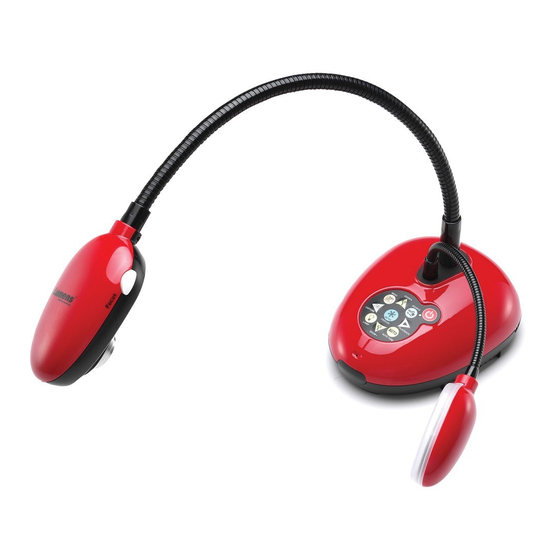

Page 1: Document Camera
DC190 Document Camera User Manual [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens™ http:// www.Mylumens.com/goto.htm English - 0... -
Page 2: Table Of Contents
Table of contents Copyright Information ..................3 Chapter 1 Safety Instructions ................4 Precautions ....................5 FCC Warning ....................5 EN55022 (CE Radiation) Warning ............... 5 Chapter 2 Package Contents ................6 Chapter 3 Product Overview ................7 Relative position of the presenter and document ....... 8 Recommended distance .............. - Page 3 I would like to switch image sources ..........23 I would like to make text clearer and photos more colorful ....23 I would like to zoom in/out images ........... 24 I would like to use the auto focus ............. 24 I would like to adjust the focal length..........
-
Page 4: Copyright Information
Copyright Information Copyrights © Lumens Digital Optics Inc. All rights reserved. Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Document Camera: 1. Do not place Document Camera in tilted position. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. -
Page 6: Precautions
Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This Document Camera has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet. Do not try to disable this safety feature. -
Page 7: Chapter 2 Package Contents
Chapter 2 Package Contents DC190 Quick Start Guide 4-Step Card (For download of other language versions, please visit Lumens website) Microscope Adapter VGA Cable USB Cable Audio Cable Power Cord Remote Control Appearance may vary depending on country/region Remote Control Holder... -
Page 8: Chapter 3 Product Overview
Chapter 3 Product Overview 1. Gooseneck 2. AF button 3. Lamp 4. Control panel 5. LED indicator 6. Built-in Microphone 7. Remote sensor 8. Lens 9. LED lamp 10. DIP Switch (Bottom) English - 7... -
Page 9: Relative Position Of The Presenter And Document
3.1 Relative position of the presenter and document 3.2 Recommended distance English - 8... -
Page 10: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Projector or monitor Computer Earphone or Computer USB Disk speaker English - 9... -
Page 11: Installation And Setup
4.2 Installation and setup Please set up the DIP Switch Settings first. Refer to Chapter 9 DIP Switch Settings in the DC190 User Manual. 4.3 Connecting to a projector or monitor VGA Cable Power Cord Monitor or Projector AC Outlet 4.4 Connecting to a computer and use Ladibug™... -
Page 12: Connecting To A Computer And Projector Or Monitor Simultaneously
4.5 Connecting to a computer and projector or monitor simultaneously VGA Cable VGA Cable Power Cord Monitor or Projector AC Outlet Computer Press [SOURCE] button to switch the image source. 4.6 Connecting to a computer and reading the USB Disk simultaneously USB Disk USB Cable... -
Page 13: Connecting To An Interactive Whiteboard (Iwb)
4.7 Connecting to an Interactive Whiteboard (IWB) Projector USB Cable Power Cord VGA Cable USB Cable AC Outlet Computer 4.8 Connecting to a TV DIP Switch C-Video Cable Power Cord AC Outlet NTSC: USA, Canada, Mexico, Panama, Chile, Japan, Taiwan, Korea, and Philippines ... -
Page 14: Connecting To A Speaker
4.9 Connecting to a speaker Power Cord Earphone or speaker AC Outlet 4.10 Connecting to a Computer with RS232 RS232 Adapter Power Cord AC Outlet Computer After connecting to the RS232 cable, you can use RS232 commands to control DC190. English - 13... -
Page 15: Installing Application Software
4.11 Installing application software The application software installed on the computer enables you to: Control the DC190. Capture and record images. Annotate the image, highlight important details and save it. Support the full screen function. Ladibug™ software user manual <Note>... -
Page 16: Chapter 5 Start Using
When using the remote control, aim at the remote sensor on the DC190, and press the power button. Once DC190 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED is not... -
Page 17: Chapter 6 Control Panel/Remote Control And Setting Menu
Chapter 6 Control Panel/Remote Control and Setting Menu 6.1 Functions of control panel and remote control <Remark> The below functions are listed alphabetically Name Function Descriptions Operation Remote Turn on and off the Document Camera. control/Control panel ,,, Move up, down, left or right to select the Remote needed function. - Page 18 Image comparison (compares live images Remote Control with captured image files). Read files stored in the USB disk (priority) Remote PLAYBACK control/Control or internal memory. panel Record motion images. Press [Record] to RECORD record images to USB disk (priority) or Remote Control internal memory, and then press [Record] again to stop recording.
-
Page 19: Setting Menu
6.2 Setting Menu 6.2.1 Setting menu <Remark> Press [Menu] on the remote control or control panel to enter the setting menu; The bold underlined values in the following table are defaults. 1st Level 2nd Level Minor 3rd Level Adjustment Function Descriptions Major Items Items Values... - Page 20 1st Level 2nd Level Minor 3rd Level Adjustment Function Descriptions Major Items Items Values Use the left and right arrow keys to select, press [ENTER] to confirm the Delete All Yes/No deletion of all images from the USB disk (priority) or internal memory. Use the left and right arrow keys to select, and then press [ENTER] to Format...
- Page 21 1st Level 2nd Level Minor 3rd Level Adjustment Function Descriptions Major Items Items Values English English 繁體中文 Traditional Chinese 简体中文 Simplified Chinese German Deutsch French Français Spanish Español Русский Russian Dutch Nederlands Finnish Suomi Polish 10. Polski Italian 11. Italiano Language Portuguese 12.
- Page 22 6.2.2 MASK Mode Setting Menu 2nd Level 3rd Level Minor 4th Level Adjustment Function Descriptions Major Items Items Values Adjust the transparency of the mask Transparency 0~4~6 using left and right arrow keys. Select the step distance of the mask Step Large/Medium/Small using left and right arrow keys.
- Page 23 6.2.4 Annotation Tools (Annotation) After the mouse or Wacom writing pad is connected, right click the mouse to start the tools. < Note> When the setting menu is activated, the tools cannot be used. <Note> For the supported Wacom models, please visit our download “The table model Lumens center supports.”...
-
Page 24: Chapter 7 Descriptions Of Major Functions
7.2 I would like to switch image sources The default of image source is Live Image. Press [SOURCE] on the remote control or [ENTER] on the control panel for DC190 to switch among the following modes in turn: 1. Live images (default). 2. Computer. -
Page 25: I Would Like To Zoom In/Out Images
3. Press [] to select [Photo/Text]. (Please refer to 7.3.1 Photo/Text mode descriptions to make the best choice.) 4. Press [] or [] to select the [Photo/Text/Gray]. 5. Press [MENU] to exit. 7.4 I would like to zoom in/out images 1. -
Page 26: I Would Like To Turn On/Off The Lamp
7.8 I would like to turn on/off the lamp The default of the lamp is OFF. When using the remote control or control panel: 1. Press [MENU] to enter the setting menu. 2. Press [] or [] to select [Display]. 3. -
Page 27: I Would Like To Record Videos
7.10.3 Setting continuous capture 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Setting] menu. 3. Press [] to find [Capture]. 4. Press [] or [] to select [continuous]. 5. -
Page 28: I Would Like To View Captured/Recorded Images
7.12 I would like to view captured/recorded images 1. Press [PLAYBACK] on the remote control or control panel to display thumbnails of all stored files. 2. Press [] or [] or [] or [] to select the thumbnail you want to play. 3. -
Page 29: I Would Like To Enlarge A Part Of The Image (Pan)
7.15 I would like to enlarge a part of the image (PAN) Use Remote control: 1. Press [PAN] to enter the Partial Enlarged mode. 2. Press [] or [] or [] or [] to move and view the partial enlarged images. -
Page 30: I Would Like To Play The Slides (Slide Show)
7.17 I would like to play the slides (Slide Show) 7.17.1 Setting delay time 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Storage] menu. 3. Press [] to find [Delay]. 4. -
Page 31: I Would Like To Compare Images (Compare Live Images With Stored Images (Pip))
7.18 I would like to compare images (compare live images with stored images (PIP)) This function will compare and contrast a live image with a stored image. Live image Stored image Remote control: 1. Press [PIP] to enter the photo selection screen. 2. -
Page 32: I Would Like To Resume The Factory Default Settings (Factory Reset)
2.1 Press [MENU] on the remote control or control panel to enter the setting menu. 2.2 Press [] or [] to the [Setting] menu. 2.3 Press [] to enter [Projector Type]. 2.4 Press [] or [] to select [LCD/DLP]. 2.5 Press [MENU] to exit. 7.20 I would like to resume the factory default settings (Factory Reset) 7.20.1 Using OSD menu... -
Page 33: I Would Like To Use A Usb Disk
1. Insert the USB disk and a [Copy To USB Disk] dialog box will appear, and you are asked whether to copy files from DC190 to the USB disk. Press [] or [] on the remote control or control panel to select. - Page 34 2. Click [Get Picture] will capture the photos of live images and insert the files in use shown as top right figure. <Remark> Support Windows XP Operation System only. 7.23.2 I would like to insert a photo in MS-Word <Remark> For Windows Office 2003 or later versions, please use the function with OneNote.
- Page 35 7.23.3 I would like to change the setting of the DC190 and then capture a photo in MS-Word <Remark> For Windows Office 2003 or later versions, please use the function with OneNote. 1. Click [Insert/Image/From Scanner or Camera] in MS-Word.
- Page 36 Menu. 5. Press [Capture] to capture images in MS-Word. 6. Press [Cancel] to exit. 7.23.4 I would like to set the DC190 as a PC Camera <Remark> For Windows XP, please set by system name (USB video device) Open [My Computer] and click [Lumens Document] to open a live image.
-
Page 37: Chapter 8 Connecting To Microscope
3.1.4. Press [] or [] to the [Microscope]. 4 If the image is not clear 4.1. Please adjust the focus of microscope. 4.2. Please press the [FOCUS] button on either side of the DC190 lens to activate the auto focus. 5 Digital Zoom 5.1. -
Page 38: Chapter 9 Dip Switch
Chapter 9 DIP Switch <Note> You should unplug and reconnect the power cord, and then restart the DC190 for all DIP Switch Settings to take effect. 9.1 Connecting to a projector or monitor 9.1.1 XGA output (default values) 9.1.2 SXGA output 9.1.3... -
Page 39: Connecting To A Tv
9.2 Connecting to a TV 9.2.1 NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico 9.2.2 PAL: Countries/regions not listed above <Remark> Once C-VIDEO is on, VGA OUT is not supported. English - 38... -
Page 40: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using DC190. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.. - Page 41 2. Press [] or [] to enter the [Advanced] menu. 3. Press [] to [Lock Down]. 4. Press [] or [] to choose [Off], and cancel the function of setting power-on password. Only video signal USB Audio is not supported in DC190. Therefore, English - 40...
- Page 42 is produced from the built-in microphone cannot work in a computer. the video To record the sound, please use an external recorded using microphone for a desktop or a microphone built in a Lumens notebook. software. No audio output. English - 41...
