Summary of Contents for Lumens DC-F20

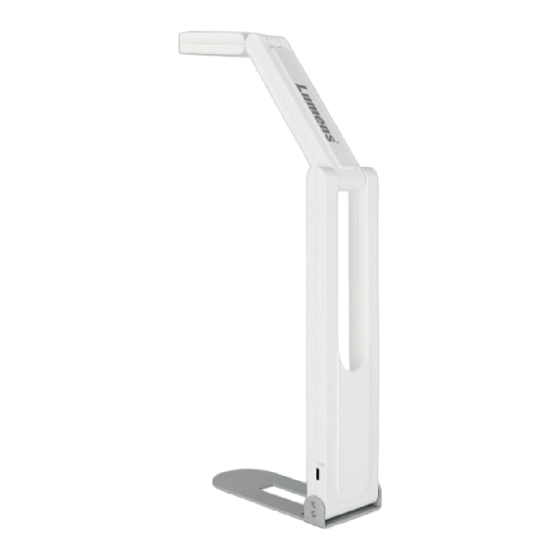

- Page 1 DC-F20 Document Camera User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.MyLumens.com/Support...
-
Page 2: Table Of Contents
Table of Contents Copyright Information ..................2 Chapter 1 Safety Instructions ................3 Chapter 2 Package Contents ................7 Chapter 3 Product Function Descriptions ............8 Chapter 4 Installation and Connections ............9 Document Camera Size ..............9 Connecting to a computer ..............10 Connecting to an Interactive Whiteboard (IWB) ....... -
Page 3: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 4: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions English Always follow these safety instructions when setting up and using the Document Camera: 1. Do not place product in tilted position. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. - Page 5 Caution Risk of Electric Shock Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel. This symbol indicates This symbol indicates that that this equipment may there are important contain dangerous operating and...
- Page 6 Français Respectez toujours les instructions de sécurité lors de la configuration et de l’utilisation de la Document Camera : Opération 1.1 Veuillez utiliser le produit dans l’environnement d’exploitation recommandé, à l’écart de l’eau ou d’une source de chaleur. 1.2 N’installez pas le produit sur une position inclinée ou sur un chariot, un support ou une table instable. 1.3 Ne pas bloquer les orifices et ouvertures du boî...
- Page 7 Numeriques,” NMB-003 edictee par l'Industrie. Avertissement EN55032 CE L’utilisation de cet équipement dans un environnement résidentiel peut provoquer des interférences radio. Cet appareil est destiné à être alimenté par un produit répertorié UL adapté à une utilisation à une température ambiante maximale de 35°C minimum dont la sortie est conforme à...
-
Page 8: Chapter 2 Package Contents
Chapter 2 Package Contents DC-F20 Quick Installation USB 2.0 cable, 1.8 M Guide (Type-C to Type-A) English - 7... -
Page 9: Chapter 3 Product Function Descriptions
Chapter 3 Product Function Descriptions Microphone Turn on/off LED indicator Auto Tune (Press and hold for 2 seconds to switch to Rotate) LED indicator USB Type C port Fixed lock hole Anti-theft Slot Items Function... -
Page 10: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 Document Camera Size Length x Width x Height: Storage compartment: 265 x 65 x 24 mm Display: 150 x 65 x 404.75 mm Weight: 310 g ※Please only operate in the extended angles as illustrated. -
Page 11: Connecting To A Computer
LED will show blue indicator. 4.3 Connecting to an Interactive Whiteboard (IWB) 4.4 Installing Application Software The Lumens Ladibug software installed on the computer enables you to: Control DC-F20 Capture and record images ... -
Page 12: Chapter 5 Start Using
5. You are ready to teach/present. Please download Ladibug software from Lumens website When connected to a computer via a USB cable, DC-F20 can also be used with video software, such as Skype and Zoom. English - 11... -
Page 13: Chapter 6 Descriptions Of Major Functions
Chapter 6 Descriptions of Major Functions 6.1 Control the Camera 1. Please download Lumens Ladibug software at Lumens website. 2. Please refer to Ladibug Software User Manual for software-related functions. 6.2 Use Skype for Video Conference Please refer to Chapter 4 Installation and Connections to finish connecting the computer. -
Page 14: Chapter 7 Troubleshooting
Chapter 7 Troubleshooting This chapter describes problems you may encounter while using DC-F20. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.
